KFV 7970 2 Hook Short Version Multipoint Door Lock

£174.10

(£145.08 ex VAT)

sku: AS7970
  • KFV AS7970 with central latch, deadbolt and two hooks
  • 35mm backset; 92mm PZ centres
  • 16mm flat faceplate
  • Handle engages secondary points; key locks the main case
  • Compare exact reference, generation, case connections and frame keeps
  • Short-strip version; verify actual length and point positions
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The KFV AS7970 short-version multipoint lock has a central latch and deadbolt with two hooks. The retained version has 35mm backset, 92mm PZ centres and a 16mm flat faceplate.

Operation: lift the handle to engage the secondary locking points, then turn the cylinder key to lock the central case and block the handle function. Unlock with the key before pressing the handle down to release the secondary points and latch. Closing on the latch or lifting the handle alone is not the fully key-locked state.

Replacement fit: match the exact lock reference and generation, backset, 92mm PZ centres, faceplate shape, case routing, locking-point positions and profile-specific frame keeps. Matching the KFV brand or PZ centres alone does not establish a direct replacement. Gearbox-only repairs also need matching fixing positions and drive connections; early riveted and later screw-fixed cases are not automatically interchangeable.

This is the listed short-strip version. Compare its overall length, locking-point positions and allowed cutting limits with the existing lock and frame preparation. The short-version label alone does not mean it fits every low or height-restricted door.

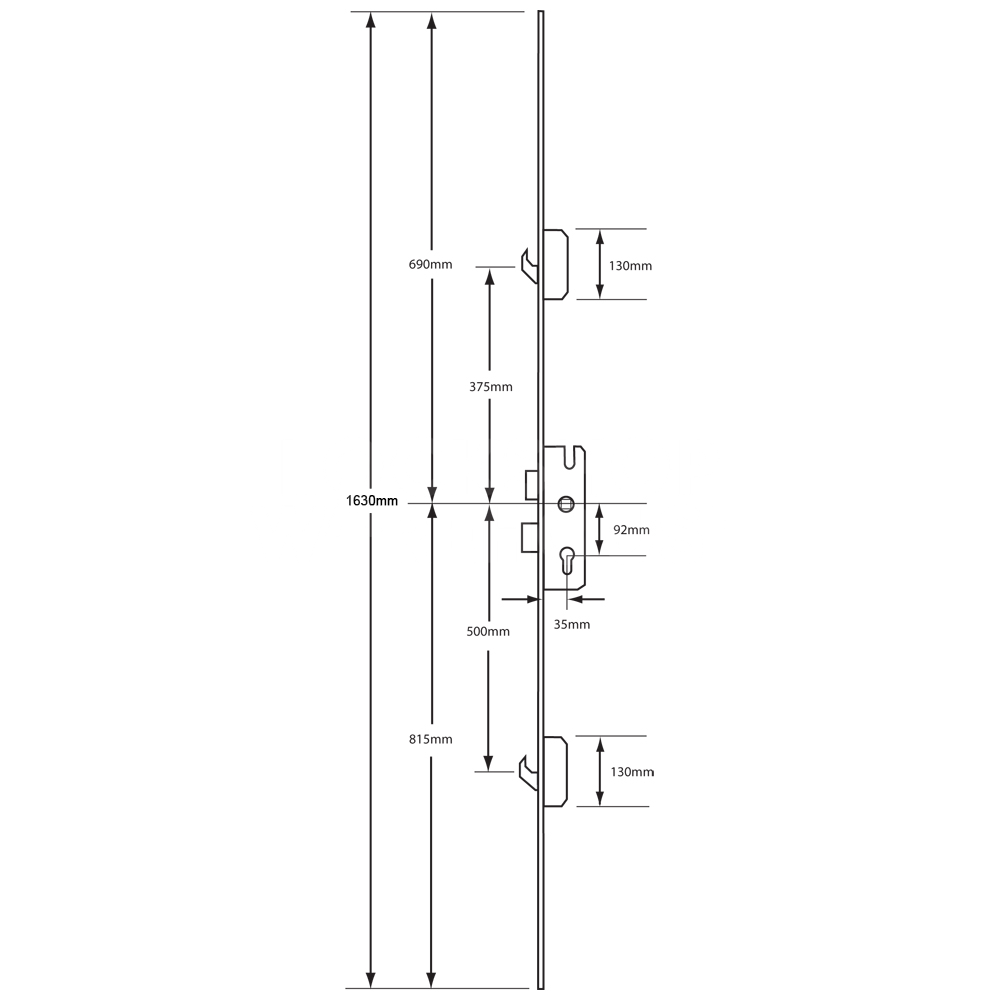

Dimensions Image: KFV 7970 2 Hook Short Version Multipoint Door Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 210
Locking Point Hooks 2
Faceplate Width 16

FAQs

This is the listed short-strip version. Compare its overall length, locking-point positions and allowed cutting limits with the existing lock and frame preparation. The short-version label alone does not mean it fits every low or height-restricted door.

Replacement fit: match the exact lock reference and generation, backset, 92mm PZ centres, faceplate shape, case routing, locking-point positions and profile-specific frame keeps. Matching the KFV brand or PZ centres alone does not establish a direct replacement. Gearbox-only repairs also need matching fixing positions and drive connections; early riveted and later screw-fixed cases are not automatically interchangeable.

The two additional hooks provide extra points of resistance against forced entry by securely anchoring the door into the frame. This mechanism also helps pull the door tight against the frame, improving the weather seal and overall stability.

Replacement fit: match the exact lock reference and generation, backset, 92mm PZ centres, faceplate shape, case routing, locking-point positions and profile-specific frame keeps. Matching the KFV brand or PZ centres alone does not establish a direct replacement. Gearbox-only repairs also need matching fixing positions and drive connections; early riveted and later screw-fixed cases are not automatically interchangeable.
