KFV 8250 Key Operated 4 Roller Multipoint Lock

£192.94

(£160.78 ex VAT)

sku: KFV-0001
  • KFV 8250 with central latch, deadbolt and four rollers
  • 35mm and 45mm backset versions; 92mm PZ centres
  • 16mm flat faceplate
  • Key-driven locking; no lift-to-lock action
  • Compare exact reference, generation, case connections and frame keeps

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The KFV 8250 multipoint lock has a central latch and deadbolt with four rollers. The retained versions have 35mm and 45mm backset options, 92mm PZ centres and a 16mm flat faceplate.

Operation: the cylinder key drives the deadbolt and roller locking mechanism; lifting a handle is not the locking action. Use the applicable key-wind sequence to lock and unlock, with a further key movement for outside latch withdrawal. The latch is not another bolt that is thrown into the frame by the locking turn.

Replacement fit: match the exact lock reference and generation, backset, 92mm PZ centres, faceplate shape, case routing, locking-point positions and profile-specific frame keeps. Matching the KFV brand or PZ centres alone does not establish a direct replacement. Gearbox-only repairs also need matching fixing positions and drive connections; early riveted and later screw-fixed cases are not automatically interchangeable.

The four rollers engage the matching frame keeps to provide closing compression. Correct roller/keep adjustment and door alignment are needed for sealing performance. Rollers do not guarantee the elimination of draughts, prevent door warping or establish a thermal or acoustic rating for an unrelated doorset.

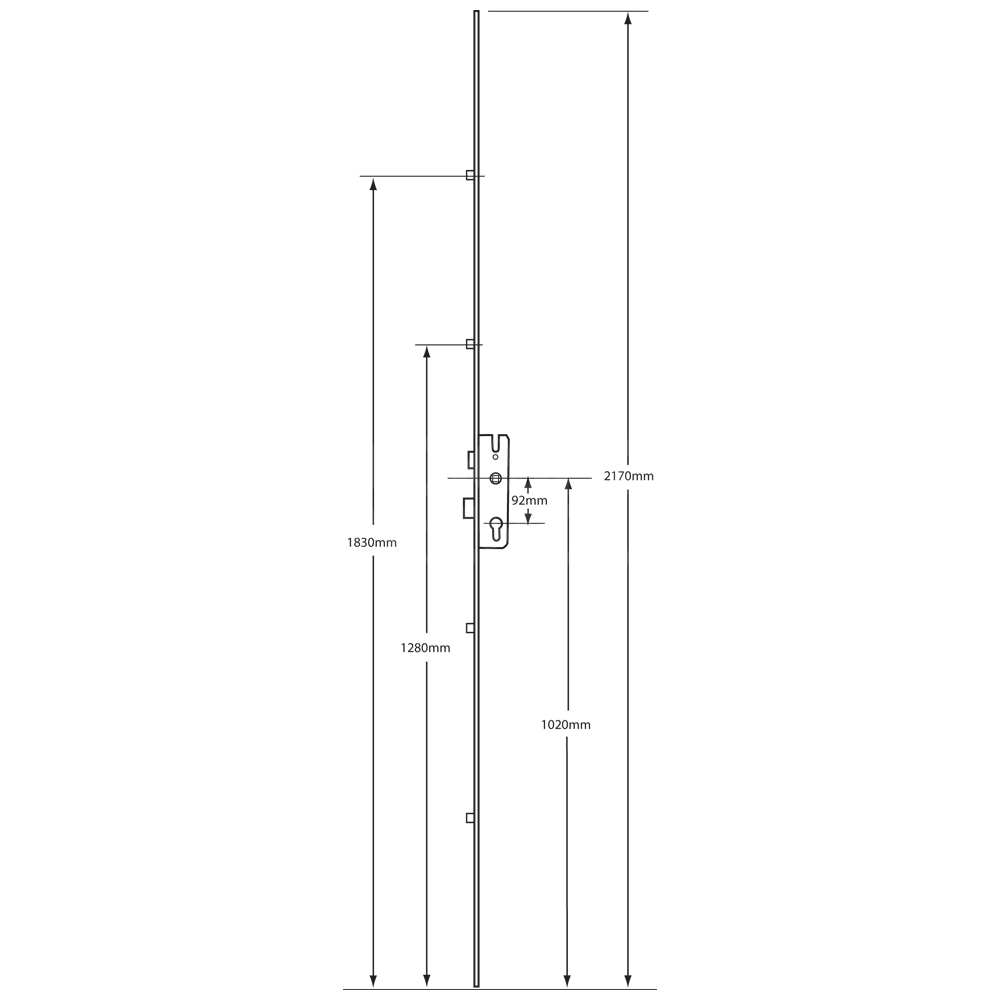

Dimensions Image: KFV 8250 Key Operated 4 Roller Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Case Width 50 58
Case Height 210 -
Locking Point Roller 4 -
Faceplate Width 16 -

FAQs

Operation: the cylinder key drives the deadbolt and roller locking mechanism; lifting a handle is not the locking action. Use the applicable key-wind sequence to lock and unlock, with a further key movement for outside latch withdrawal. The latch is not another bolt that is thrown into the frame by the locking turn.

The four rollers engage the matching frame keeps to provide closing compression. Correct roller/keep adjustment and door alignment are needed for sealing performance. Rollers do not guarantee the elimination of draughts, prevent door warping or establish a thermal or acoustic rating for an unrelated doorset.

Replacement fit: match the exact lock reference and generation, backset, 92mm PZ centres, faceplate shape, case routing, locking-point positions and profile-specific frame keeps. Matching the KFV brand or PZ centres alone does not establish a direct replacement. Gearbox-only repairs also need matching fixing positions and drive connections; early riveted and later screw-fixed cases are not automatically interchangeable.

This multipoint lock is designed to be used with a standard Euro profile cylinder. Because the lock relies on the cylinder to drive the locking mechanism, we recommend using a high-quality cylinder to ensure the smoothest operation of the key-wind system.
