KFV Lever Operated Multipoint Lock 2 Round Bolt

£175.22

(£146.02 ex VAT)

sku: KFV-0004
  • KFV AS4350 with central latch, deadbolt and two round bolts
  • 35mm, 40mm and 45mm backset versions; 92mm PZ centres
  • 16mm flat faceplate
  • Handle engages secondary points; key locks the main case
  • Compare exact reference, generation, case connections and frame keeps

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The KFV AS4350 multipoint lock has a central latch and deadbolt with two round bolts. The retained versions have 35mm, 40mm and 45mm backset options, 92mm PZ centres and a 16mm flat faceplate.

Operation: lift the handle to engage the secondary locking points, then turn the cylinder key to lock the central case and block the handle function. Unlock with the key before pressing the handle down to release the secondary points and latch. Closing on the latch or lifting the handle alone is not the fully key-locked state.

Replacement fit: match the exact lock reference and generation, backset, 92mm PZ centres, faceplate shape, case routing, locking-point positions and profile-specific frame keeps. Matching the KFV brand or PZ centres alone does not establish a direct replacement. Gearbox-only repairs also need matching fixing positions and drive connections; early riveted and later screw-fixed cases are not automatically interchangeable.

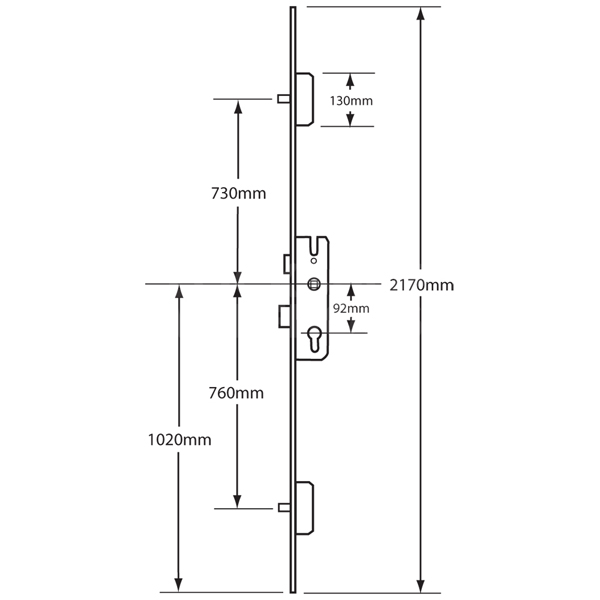

Dimensions Image: KFV Lever Operated Multipoint Lock 2 Round Bolt
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Case Width 48 60
Case Height 210 -
Locking Point Pin 2 -
Faceplate Width 16 -

FAQs

Operation: lift the handle to engage the secondary locking points, then turn the cylinder key to lock the central case and block the handle function. Unlock with the key before pressing the handle down to release the secondary points and latch. Closing on the latch or lifting the handle alone is not the fully key-locked state.

Replacement fit: match the exact lock reference and generation, backset, 92mm PZ centres, faceplate shape, case routing, locking-point positions and profile-specific frame keeps. Matching the KFV brand or PZ centres alone does not establish a direct replacement. Gearbox-only repairs also need matching fixing positions and drive connections; early riveted and later screw-fixed cases are not automatically interchangeable.

The inclusion of two additional round bolt locking points provides enhanced security by securing the door at multiple positions. This design offers several benefits:

  • Increased resistance against forced entry
  • Improved weather sealing by pulling the door tighter against the frame
  • Greater overall stability of the door when locked

Replacement fit: match the exact lock reference and generation, backset, 92mm PZ centres, faceplate shape, case routing, locking-point positions and profile-specific frame keeps. Matching the KFV brand or PZ centres alone does not establish a direct replacement. Gearbox-only repairs also need matching fixing positions and drive connections; early riveted and later screw-fixed cases are not automatically interchangeable.
