skip to Legge Tubular Latch 3722 - 79mm

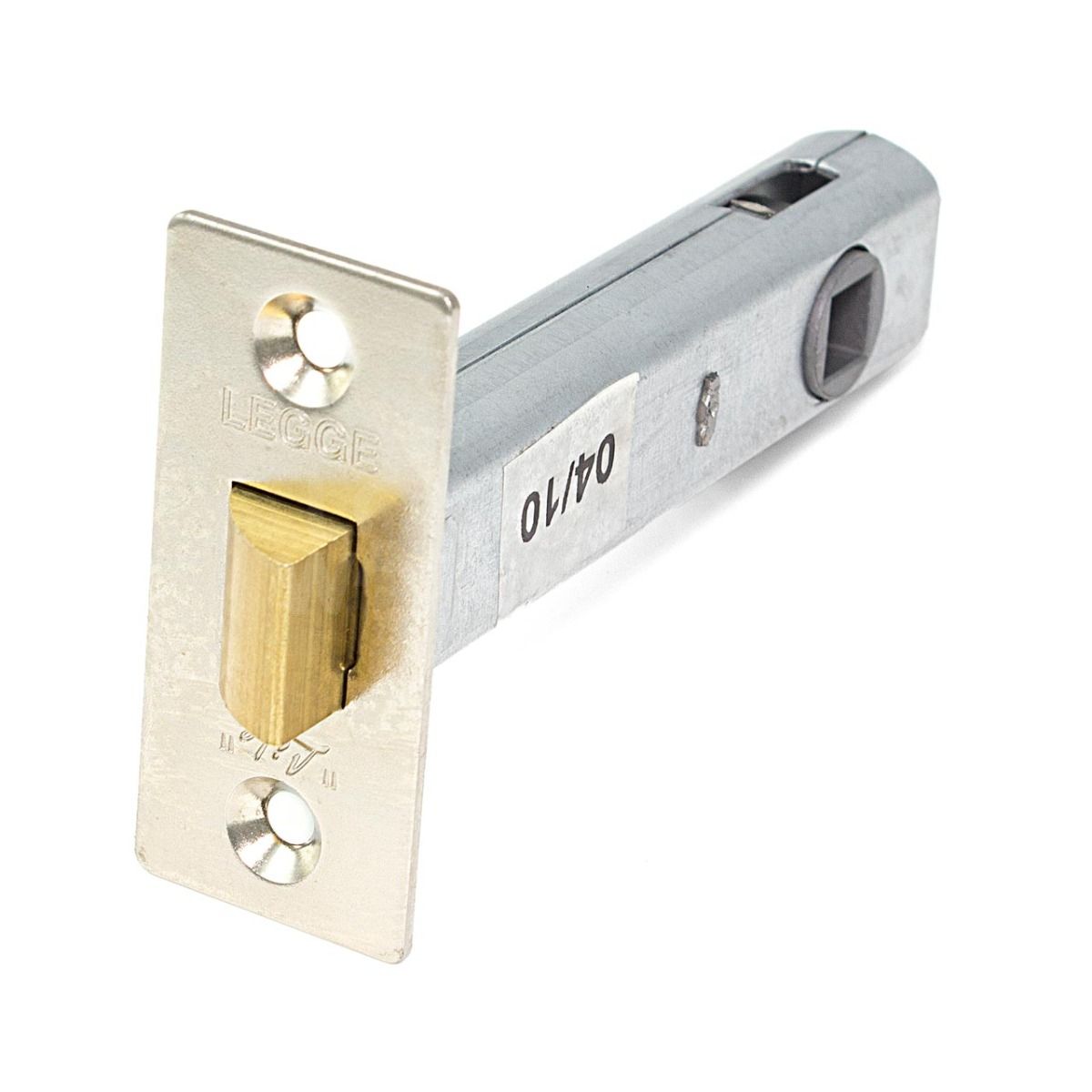

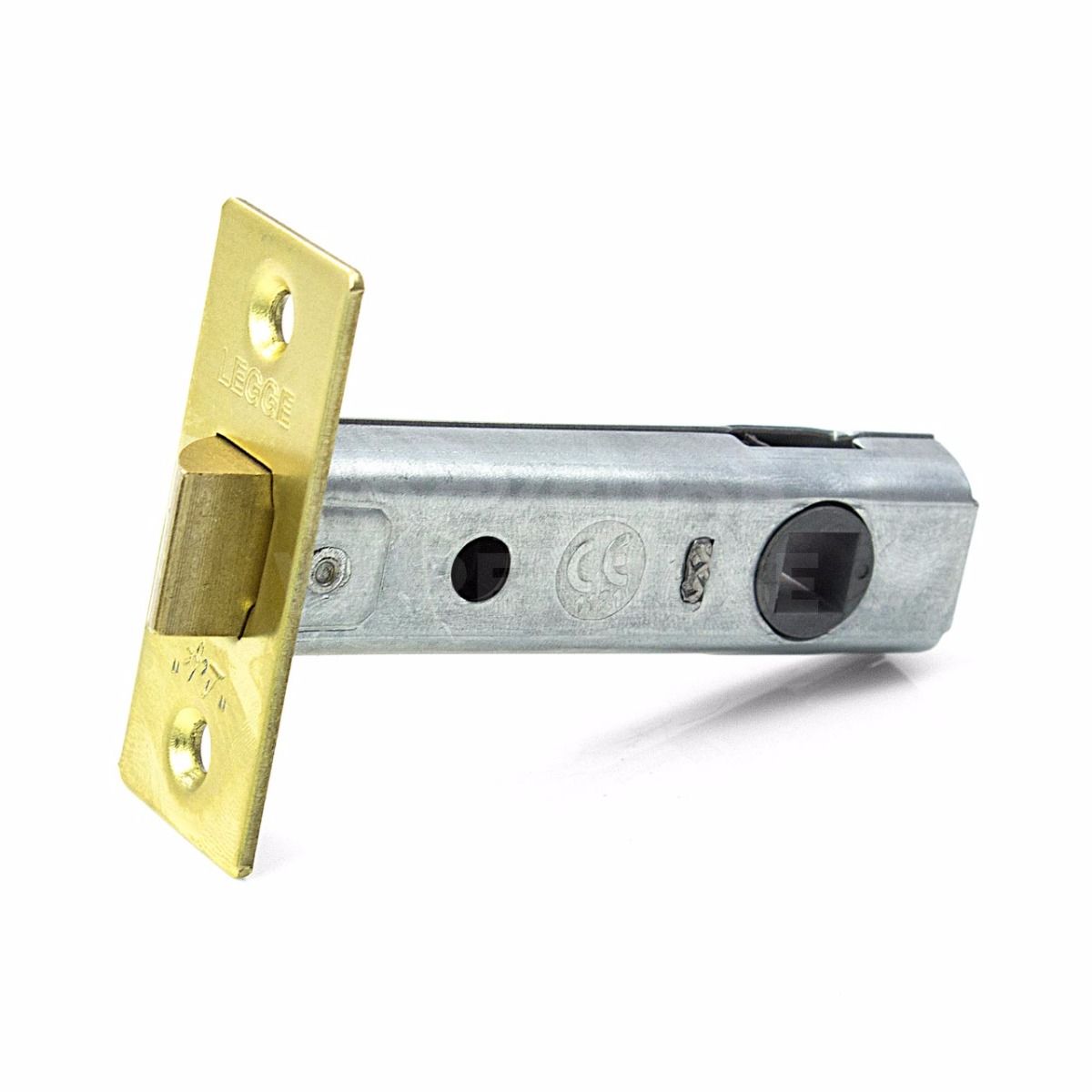

Legge Tubular Latch 3722 - 79mm

£9.59

(£7.99 ex VAT)

sku: LG-3722
  • Designed for use with lever furniture on internal timber doors
  • Features an 8mm square follower compatible with standard UK spindles
  • Spring-loaded latchbolt ensures smooth retraction and reliable closure
  • Zinc-plated steel case for enhanced durability and corrosion resistance
  • Suitable for both new door installations and replacement applications
  • Designed to be morticed into the door edge for a concealed finish

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Legge 3722 Tubular Latch is a functional mortice latching solution designed for internal timber doors where a locking mechanism is not required. This component is primarily used in conjunction with lever handles, allowing the latchbolt to be withdrawn from either side of the door to provide easy access while keeping the door securely closed when not in use.

Constructed with a robust zinc-plated steel case, this latch is engineered for long-term performance in residential and light commercial environments. It features a standard 8mm follower, ensuring compatibility with the majority of lever handle spindles found in the UK. The internal spring mechanism is designed to provide a positive return action, ensuring that the handle returns to its horizontal position and the latchbolt fully extends into the strike plate.

This tubular latch is an ideal choice for maintenance projects as a direct replacement for existing latches, or as part of a new ironmongery installation. It is typically applied to internal doors such as those for living rooms, kitchens, and bedrooms where privacy or security bolts are unnecessary.

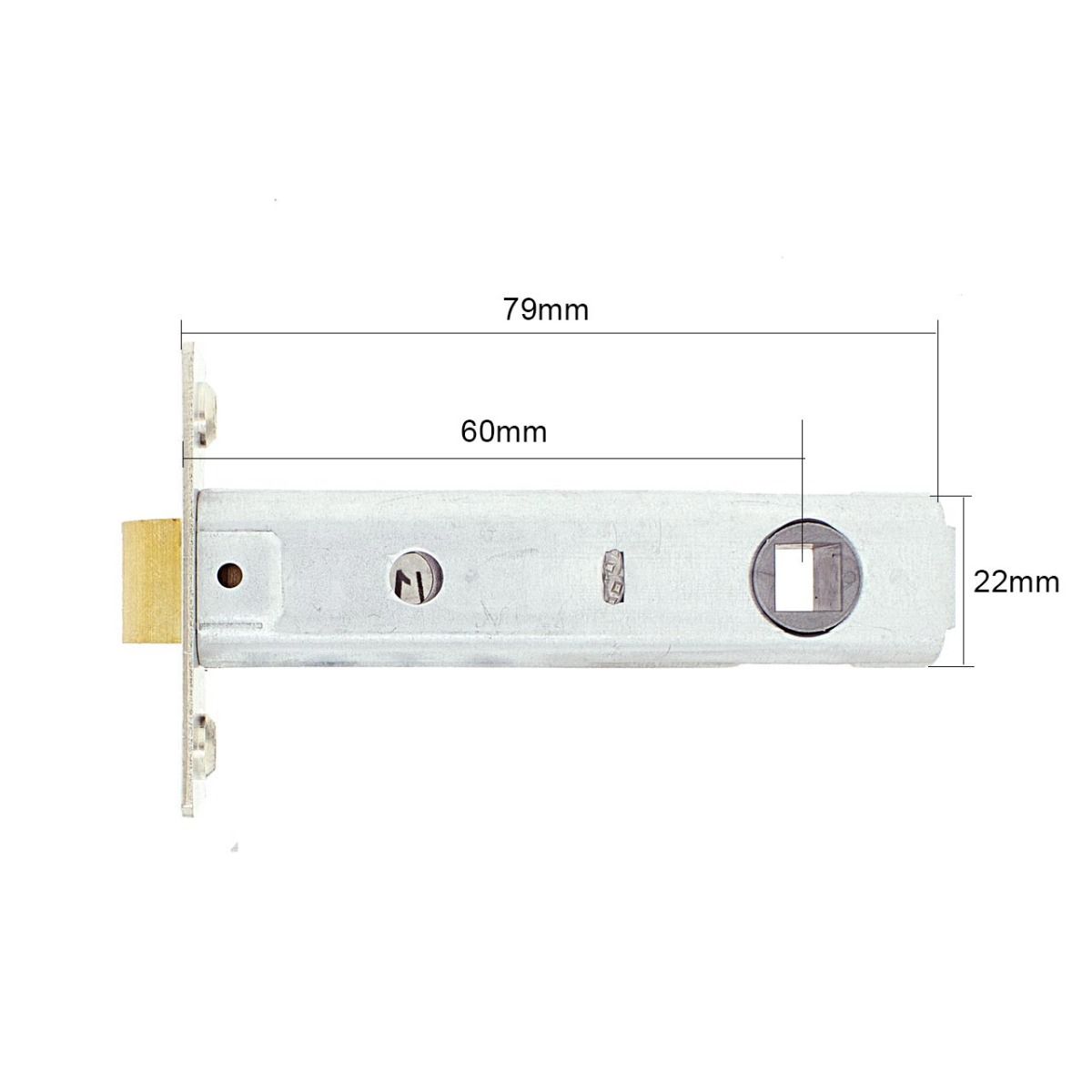

Dimensions Image: Legge Tubular Latch 3722 - 79mm
Part Size (mm)
Backset 60
Case Width 79
Case Height 22
Forend Width 25
Forend Length 57
Dimensions Image: Legge Tubular Latch 3722 - 79mm

Brand

SKU

LG-3722

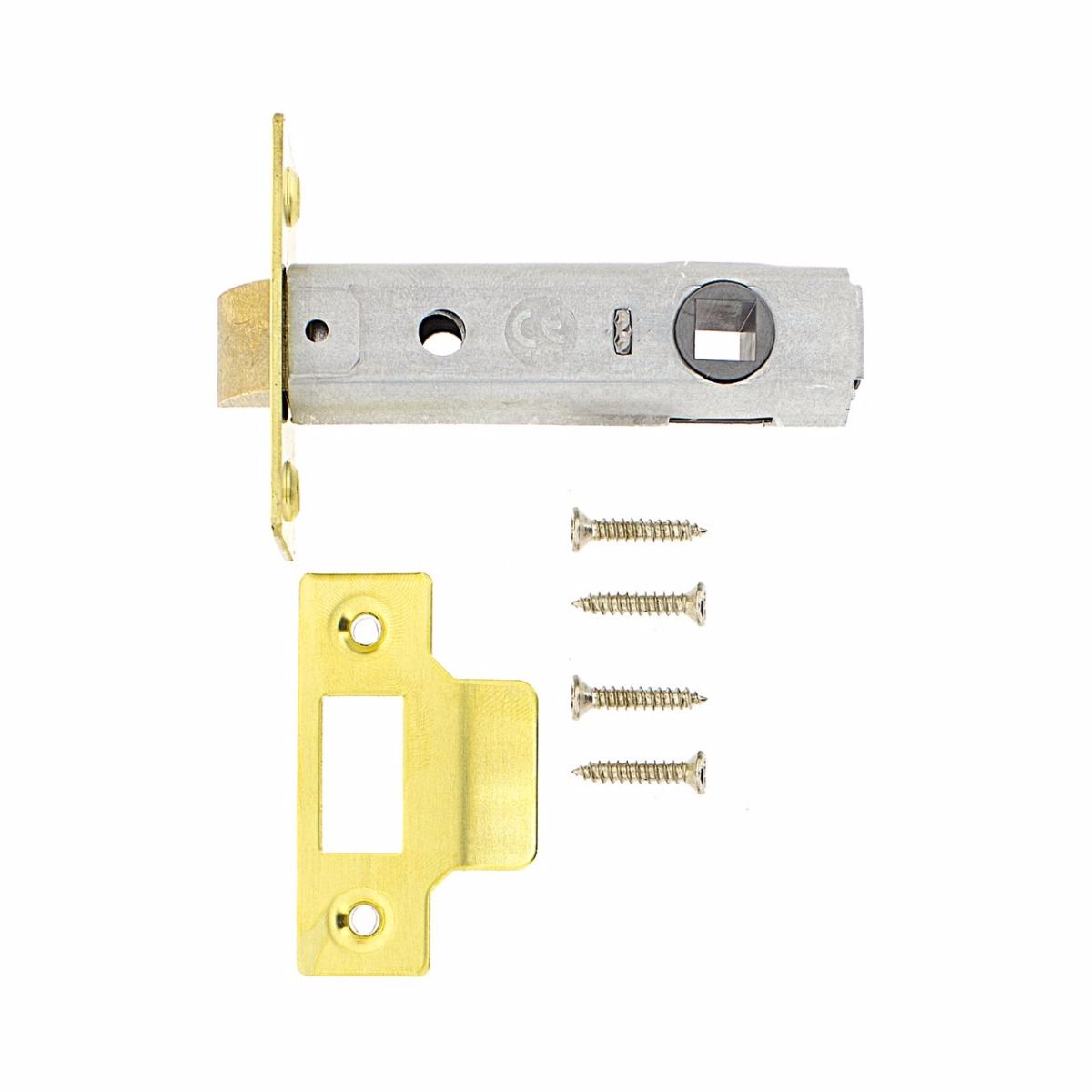

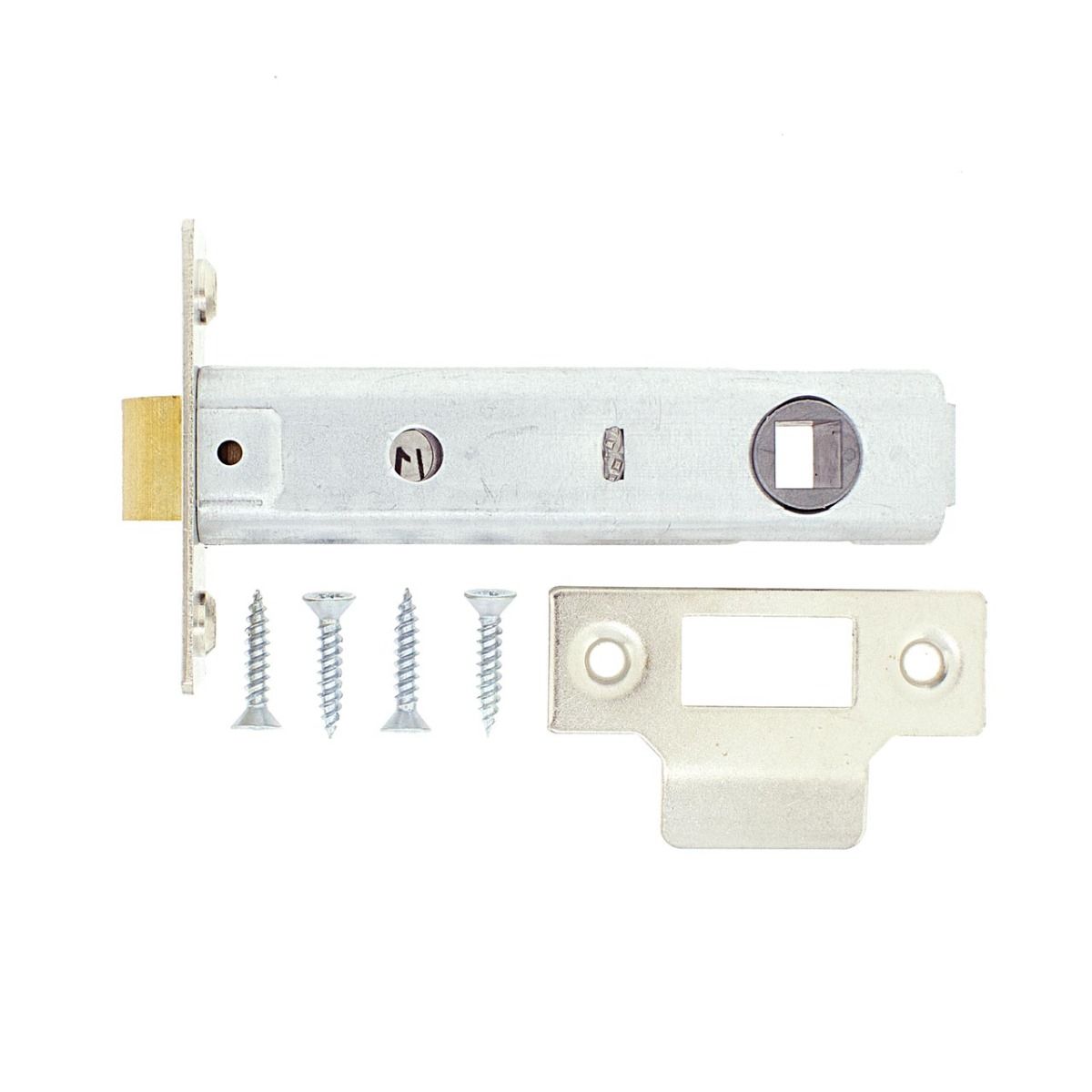

Box Contents

strike plate

fixing screws

latch

FAQs

The Legge 3722 tubular latch features an 8mm follower, which is the standard size for most modern lever handle spindles, allowing operation from either side of the door.

This specific model has a case size of 79mm. This measurement refers to the total depth of the latch housing that is morticed into the door edge.

To match your door hardware, the forend (faceplate) and strike plate are available in two finish options:

  • Brass
  • Nickel Plated

Yes, the main case of the latch is finished with a zinc plating to provide durability and help prevent corrosion of the internal components over time.
