skip to Lockmaster Lever Operated 2 Hook 2 Anti-Lift 2 Roller Multipoint Lock

Lockmaster Lever Operated 2 Hook 2 Anti-Lift 2 Roller Multipoint Lock

£84.26

(£70.22 ex VAT)

sku: PLSP13-27
  • Exact PLSP13-27 complete locking unit
  • Two hooks, two anti-lift pins and two rollers
  • Centre latch and deadbolt
  • Single-spindle arrangement requires matched door furniture
  • 16mm faceplate width is not a universal replacement specification
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The PLSP13-27 combines two hook-and-pin locking units and two rollers with a centre latch and deadbolt. Match this exact complete reference rather than a PLSP13-19 or another similar Lockmaster code.

Check the case, follower, spindle, fixings and every locking-point location against the existing door and keeps. Follow the original lift-lever and key-locking sequence; the number of components does not establish a security rating or guaranteed weather seal.

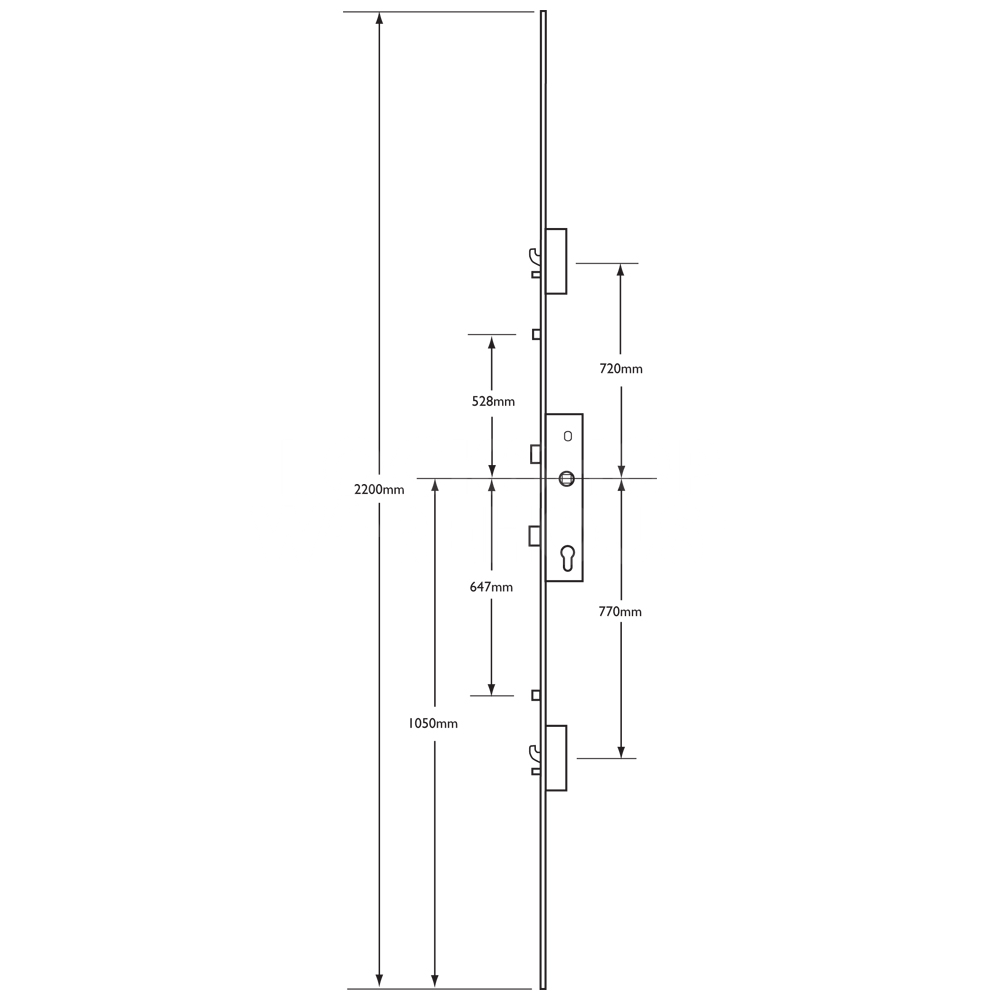

Dimensions Image: Lockmaster Lever Operated 2 Hook 2 Anti-Lift 2 Roller Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 47
Case Height 228
Locking Point Anti Lift 2
Locking Point Roller 2
Faceplate Width 16

FAQs

It has two outer hooks, two anti-lift pins and two rollers, with a separate centre latch and deadbolt. These are different components, not interchangeable security points or a tested-door rating.

Only if the exact PLSP13-27 mechanism matches the door. Compare case, follower, backset, strip length, fixings and keeps; a 16mm groove and matching door material are not enough.

Follow the fitted mechanism's lift-lever and key-locking sequence. Do not assume lifting the handle throws the centre deadbolt or use a fixed key-turn count for every lock and cylinder.

Match furniture to the single follower, spindle and fixing positions, and fit a correctly sized compatible cylinder. A Euro profile or lever/lever label alone does not establish suitability.
