Lockmaster Lever Operated Latch & Deadbolt 4-Roller Multipoint Lock

£59.26

(£49.38 ex VAT)

sku: 41010
  • Exact 41010 complete locking unit
  • Four roller cams with a centre latch and deadbolt
  • Listed single-spindle operation requires matching furniture
  • 16mm faceplate: compare the complete preparation
  • Check roller positions, case, fixings and keeps
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Lockmaster 41010 combines four roller cams with a centre latch and deadbolt. Match this complete reference, rather than treating every four-roller Lockmaster as the same mechanism.

Check the actual follower arrangement and handle centres against the original unit, along with the case, strip length, fixings and roller positions. Lever engagement and key locking are different actions; do not describe the centre deadbolt as automatically thrown by lifting the handle.

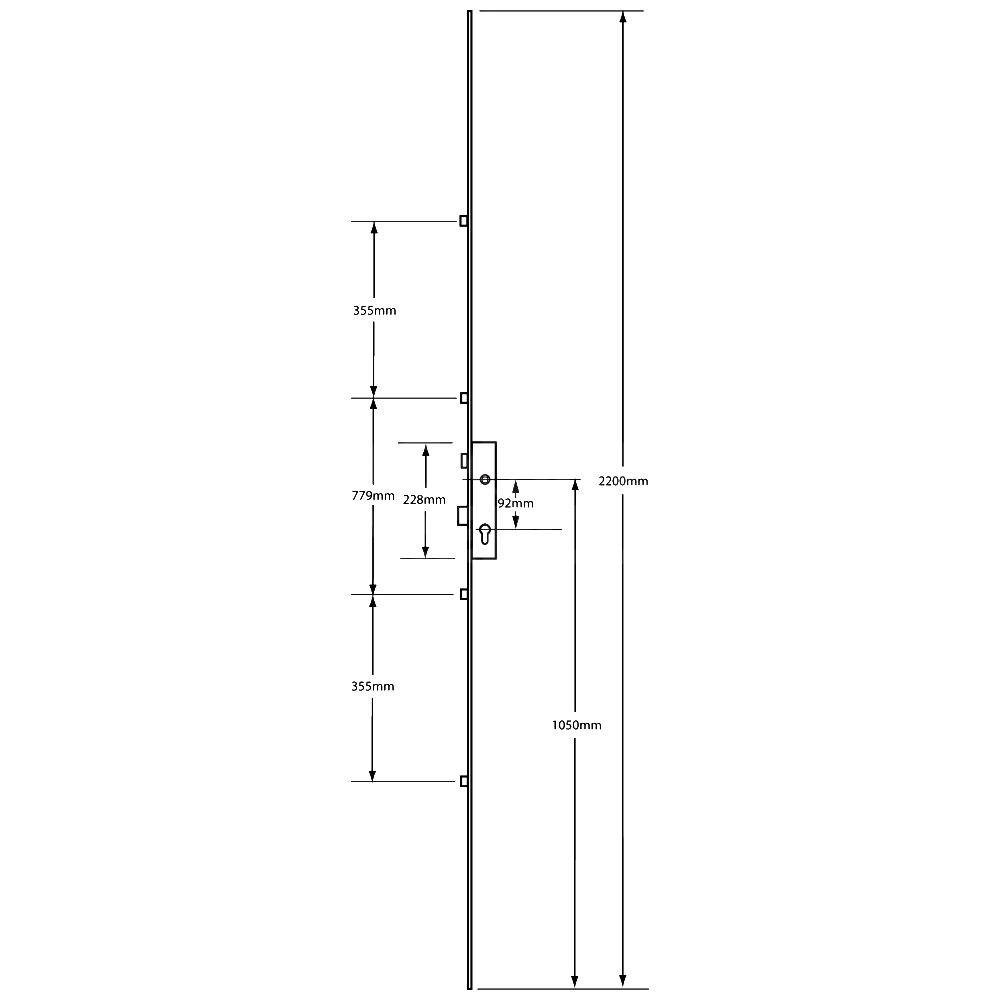

Dimensions Image: Lockmaster Lever Operated Latch & Deadbolt 4-Roller Multipoint Lock
Part Size (mm)
Backset 35
Case Width 47
Case Height 228
Locking Point Roller 4
Faceplate Width 16

FAQs

The rollers engage matching keeps to control door compression. They do not guarantee insulation, draught-free sealing or resistance to forced entry; door alignment and seal condition also matter.

Match the handles to the actual single-follower arrangement, spindle, fixing positions and springing. A lever/lever label does not make every handle set compatible.

Follow the operating instructions for the fitted 41010 mechanism. Lever engagement is followed by the specified key-locking action; do not assume lifting the handle throws the centre deadbolt or use a universal key-turn count.

Only if the complete 41010 mechanism matches the door. Check the backset, actual follower positions, case, length, fixings, rollers and keeps; a 16mm groove is not sufficient.
