Lockmaster Lever Operated Latch & Deadbolt Single Spindle Gearbox

£40.75

(£33.96 ex VAT)

sku: YALE-0082
  • High-quality replacement center gearbox for Lockmaster multipoint locks
  • Available in 35mm or 45mm backset options for a perfect fit
  • Standard 92mm PZ centers compatible with most door handles
  • Features a reversible latch to suit both left and right-handed doors
  • Cost-effective repair solution instead of replacing the entire lock strip
  • Single spindle operation for simple lever-lift locking engagement
  • Robust latch and deadbolt mechanism for reliable home security

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Lockmaster Lever Operated Latch & Deadbolt Single Spindle Gearbox is a professional-grade replacement component designed to restore the functionality of your existing multipoint door lock. It provides a cost-effective repair solution for common lock failures where the locking strip remains in working condition.

This gearbox is engineered for versatility, featuring a reversible latch that can be easily adjusted by removing a screw, flipping the latch, and refitting. It operates with a standard single spindle mechanism: lift the lever to engage the locking points and use a full turn of the cylinder to lock the unit. A downward push on the lever after unlocking retracts the latch for entry.

  • Backset: 35mm or 45mm
  • Centres: 92mm (PZ)
  • Case Height: 228mm
  • Case Width: 50mm or 60mm
  • Spindle: Single

Constructed for durability, this center case is ideal for maintaining security on UPVC or composite doors without the need for a full hardware overhaul.

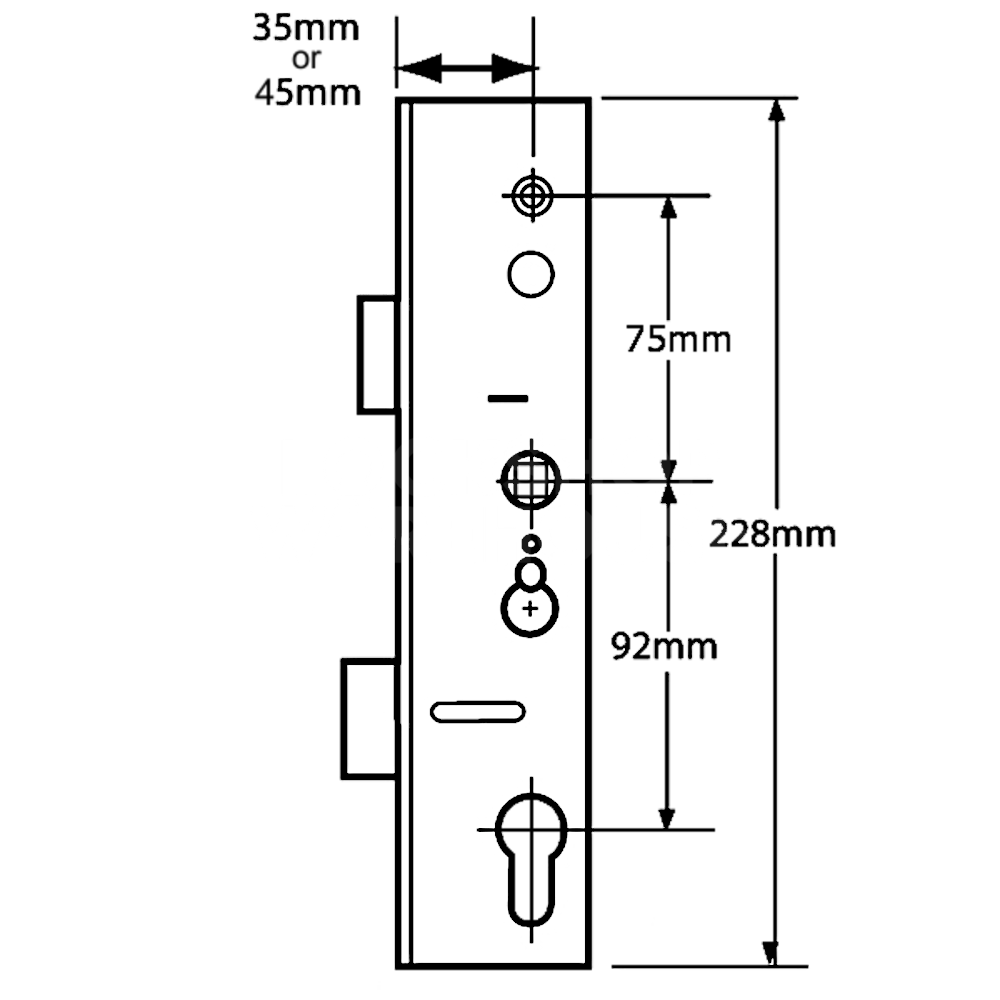

Dimensions Image: Lockmaster Lever Operated Latch & Deadbolt Single Spindle Gearbox
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Case Width 50 60
Case Height 228 -

FAQs

To ensure a proper fit, you must measure the distance from the front of the lock faceplate to the center of the keyhole or spindle. This gearbox is available in two common backset sizes:

  • 35mm (50mm case width)
  • 45mm (60mm case width)

Additionally, confirm that your current lock has 92mm PZ centers, which is the distance between the center of the handle spindle and the center of the keyhole.

Yes, this Lockmaster gearbox features a reversible latch. You can easily adjust the handing yourself by removing the small screw located behind the latch, flipping the latch head to the required orientation, and then refastening the screw into place.

This is a single spindle gearbox designed for lever-lift operation. To engage the multipoint locking points, simply lift the door handle upwards. Once engaged, use your key to turn the cylinder and fully lock the unit. Pushing the handle down after unlocking will retract the latch to allow entry.

Yes, this center case is designed specifically as a cost-effective repair solution. If your door's full-length locking strip and external points are still in good condition but the central mechanism has failed, you can swap out the old gearbox for this replacement unit without having to buy an entirely new lock assembly.
