Lockmaster Lever Operated Multipoint Lock with Hooks and Rollers

£90.24

(£75.20 ex VAT)

sku: PLSP13-2ER-27
  • Exact PLSP13-2ER-27 complete locking unit
  • Two hooks, two anti-lift pins and four rollers
  • Centre latch and deadbolt
  • Match the actual follower arrangement and handle furniture before replacement
  • 16mm faceplate width is only one fitting check
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The PLSP13-2ER-27 combines hook-and-pin locking points and four rollers with a centre latch and deadbolt. Match the exact complete reference rather than using a nearby PL13 or PLSP13 code as a substitute.

Check the follower arrangement on the original and supplied unit, together with the case, fixings and full keep layout. Use the mechanism's operating instructions for lever engagement and key locking. The number of hooks, pins and rollers is not a security or weather-performance rating.

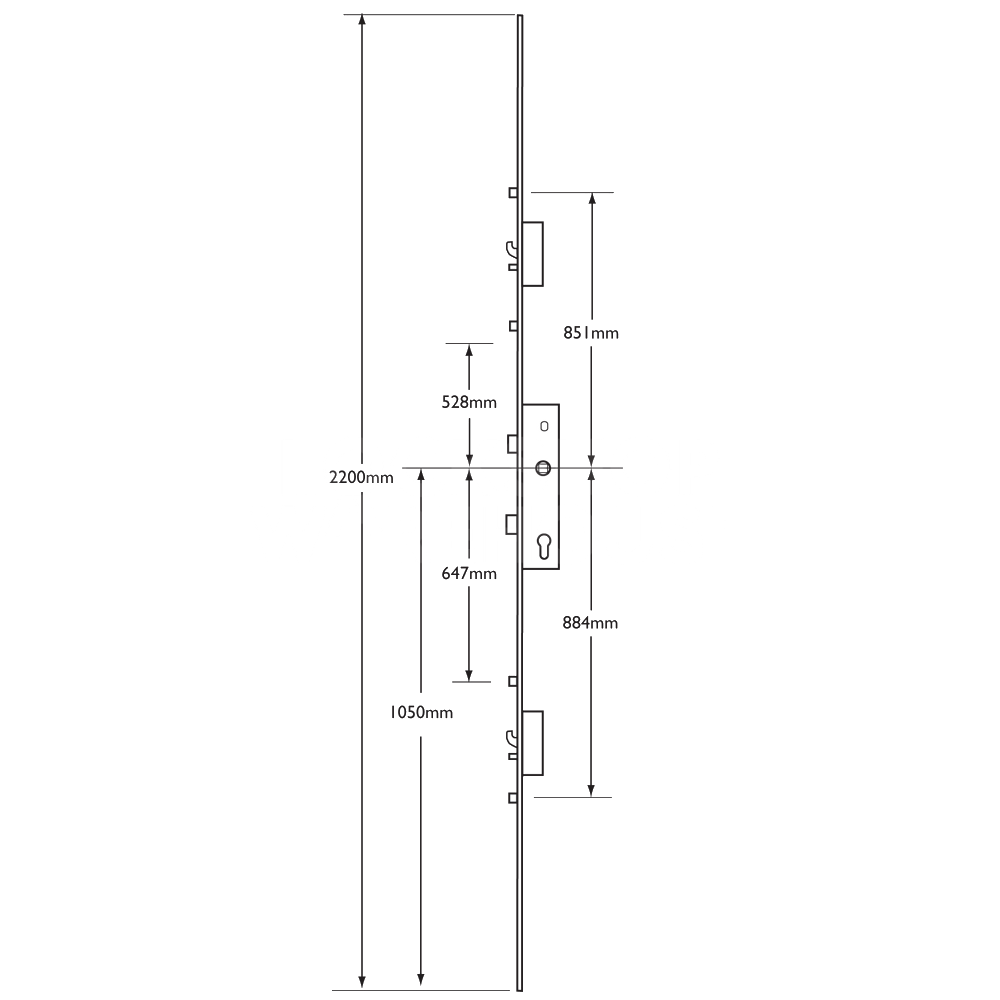

Dimensions Image: Lockmaster Lever Operated Multipoint Lock with Hooks and Rollers
Part Size (mm)
centres 92
Backset 35
Case Width 47
Case Height 228
Locking Point Anti Lift 2
Locking Point Roller 4
Faceplate Width 16

FAQs

The outer layout comprises two hooks, two anti-lift pins and four rollers, with a separate centre latch and deadbolt. These components have different functions; their count is not a guarantee of security or a weatherproof seal.

Use the lift-lever and key-locking sequence for the exact fitted mechanism. Do not assume the lever throws the centre deadbolt or that all Lockmaster locks use the same key-turn count.

Only after checking the complete mechanism, including the actual follower arrangement, case, fixings and locking-point positions. A 16mm faceplate does not establish universal fit or handle compatibility.

The pins engage matching keep openings as part of the door assembly. Correct engagement and door construction matter; they do not guarantee that the door cannot be lifted or forced.
