Lockmaster Lever Operated Twin Spindle Multipoint Lock

£77.41

(£64.51 ex VAT)

sku: LOCKM-0006
  • Full multipoint locking unit featuring two deadbolts for enhanced security
  • Twin spindle gearbox allows for versatile handle operation
  • Lever-operated mechanism requires a handle lift to engage locking points
  • Compatible with standard Euro profile cylinders
  • Features a central latch and deadbolt for secure primary closure
  • Suitable for replacement or new installations in various door types
  • Equipped with a 16mm faceplate for standard profile compatibility

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Lockmaster Lever Operated Twin Spindle Multipoint Lock is a high-security solution designed for residential and light commercial door systems. This full-length unit comprises a central Euro profile lock case with an integrated latch and deadbolt, supported by two additional deadbolts located at the top and bottom of the faceplate for multi-point engagement.

Functionally, the unit utilizes a twin spindle mechanism, which offers flexibility in handle choice and operation. The locking process is straightforward: lifting the door handle engages the peripheral deadbolts, and a single turn of the key in the Euro cylinder locks the entire mechanism. To unlock, the key is turned once and the lever handle is pushed down to retract all bolts and the latch simultaneously.

This Lockmaster mechanism is typically used in PVCu, timber, or composite doors. It serves as an effective replacement part for existing Lockmaster systems or as a primary locking component in new door assemblies, providing reliable security and smooth mechanical operation. The unit is designed to work with a 16mm faceplate channel, ensuring broad compatibility with most modern door profiles.

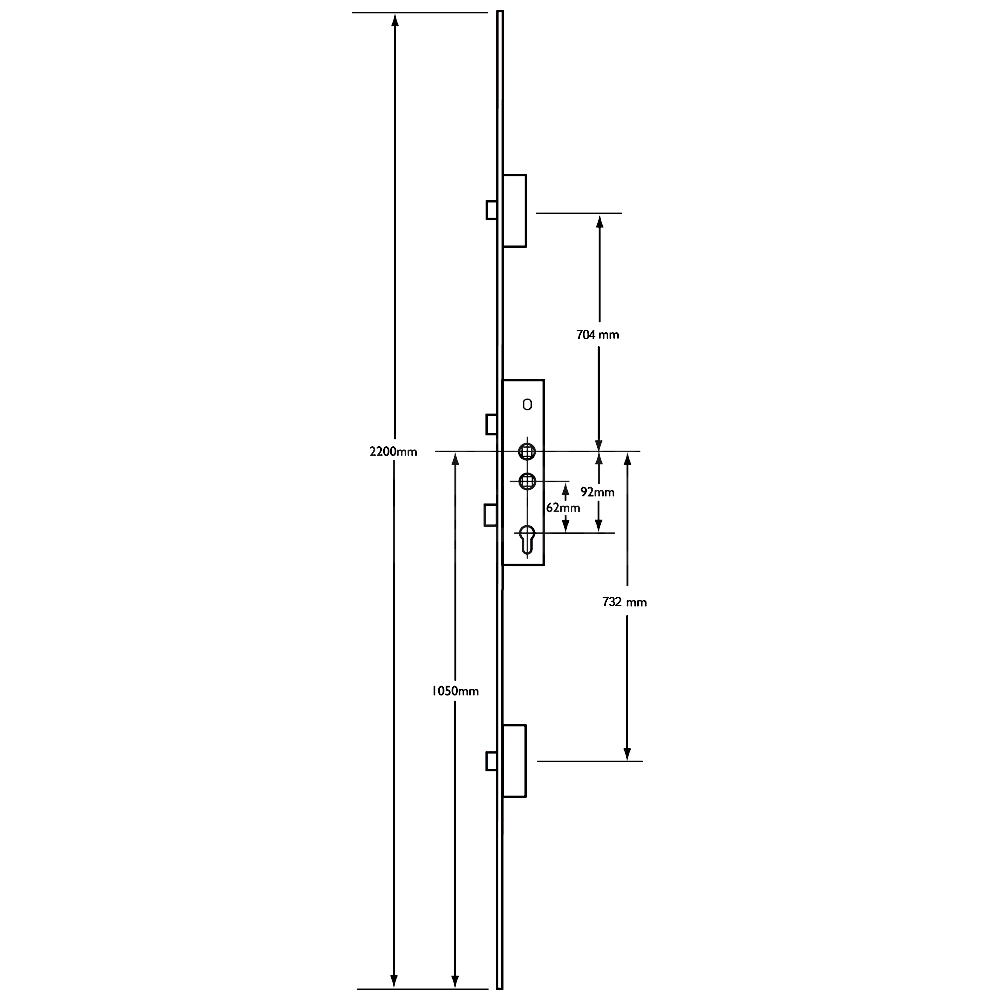

Dimensions Image: Lockmaster Lever Operated Twin Spindle Multipoint Lock
Part Min (mm) Max (mm)
Backset 35 45
Case Width 50 60
Case Height 228 -
Locking Point Dead Bolt 2 -
Faceplate Width 16 -

FAQs

This lock is designed for a variety of residential and light commercial door systems. It is suitable for installation in PVCu, timber, and composite doors, making it an ideal choice for both new door assemblies and as a replacement for existing systems.

To secure the door, you must first lift the lever handle upwards to engage the central and peripheral deadbolts. Once the bolts are engaged, a single turn of the key in the Euro cylinder locks the entire mechanism in place.

The twin spindle mechanism offers greater versatility in how the door handles operate. It allows for different handle configurations and functions, providing flexibility depending on your specific hardware preferences and security requirements.

This unit features a 16mm faceplate, which is compatible with most modern door profile channels. It is also designed to work with standard Euro profile cylinders, ensuring broad compatibility for replacement applications.
