Lockmaster Lever Operated Twin Spindle Multipoint Lock

£112.73

(£93.94 ex VAT)

sku: PL137-19
  • Exact PL137-19 complete locking unit
  • Two hooks, two anti-lift pins and two rollers
  • Centre latch and deadbolt
  • Twin-spindle centre case requires matched handles and follower positions
  • 16mm faceplate: check the full route, fixings and keep layout
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

10 Year Guarantee
Latch & Deadbolt

The PL137-19 combines two hook-and-pin units and two rollers with a centre latch and deadbolt. Keep this exact reference distinct from other PL13 and PLSP13 locks.

Match the follower arrangement and complete strip geometry to the original door. Lift-lever engagement and key locking are separate actions; follow the instructions for the fitted mechanism, without assuming a fixed key-turn count or a split-spindle conversion.

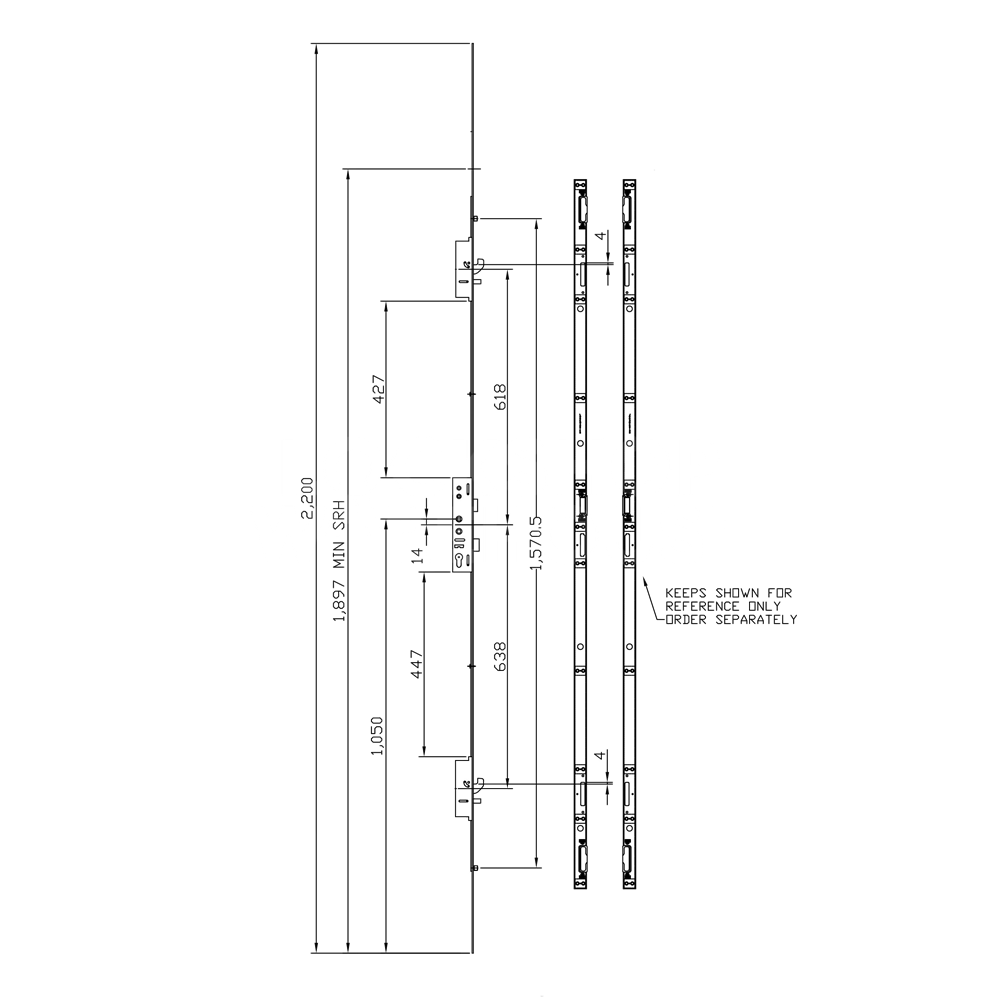

Dimensions Image: Lockmaster Lever Operated Twin Spindle Multipoint Lock
Part Size (mm)
Backset 35
Case Depth 48
Locking Point Anti Lift 2
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

It describes two follower positions in the centre case. Match the furniture to the required follower on each side; it does not establish split-spindle operation or key-only outside access by itself.

The outer layout comprises two hooks, two anti-lift pins and two rollers, with a separate centre latch and deadbolt. The component count is not a tested-door security rating.

Check the exact PL137-19 mechanism, follower positions, case, fixings, strip length and keeps. A 16mm faceplate or matching door material alone is not a replacement match.

Use the lift lever and then the key-locking action specified for the original mechanism. Do not assume the lever throws the centre deadbolt or that every Lockmaster uses the same number of key turns.
