Lockmaster Single Spindle Lever Operated Multipoint Lock

£84.26

(£70.22 ex VAT)

sku: PLSP71-27
  • Lever-operated mechanism for secure latch and deadbolt engagement
  • Features two additional deadbolts for enhanced security along the door edge
  • Designed for compatibility with Lockmaster multipoint locking systems
  • Single spindle operation suitable for standard lever/lever handle sets
  • Standard 92mm PZ centres for compatibility with common door hardware
  • 16mm flat faceplate fits standard door profile preparations
  • Reliable central gearbox for smooth handle operation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Lockmaster Single Spindle Multipoint Lock is a robust security solution designed for residential and light commercial door applications. This lever-operated system features a central gearbox containing a latch and deadbolt, supplemented by two additional deadbolts positioned along the faceplate to provide multiple locking points and increased resistance against forced entry.

Typically used as a replacement part for existing Lockmaster units, this multipoint lock is suitable for uPVC, timber, and composite doors. The single spindle configuration means it is operated by a standard lever/lever handle set, where the internal and external handles are at the same height. The unit is built with a 16mm flat faceplate and industry-standard 92mm PZ centres, ensuring broad compatibility with existing door furniture and profile routing.

When used as a replacement, it is essential to ensure the locking points and gearbox dimensions align with the existing door preparation to maintain the structural integrity and security of the installation.

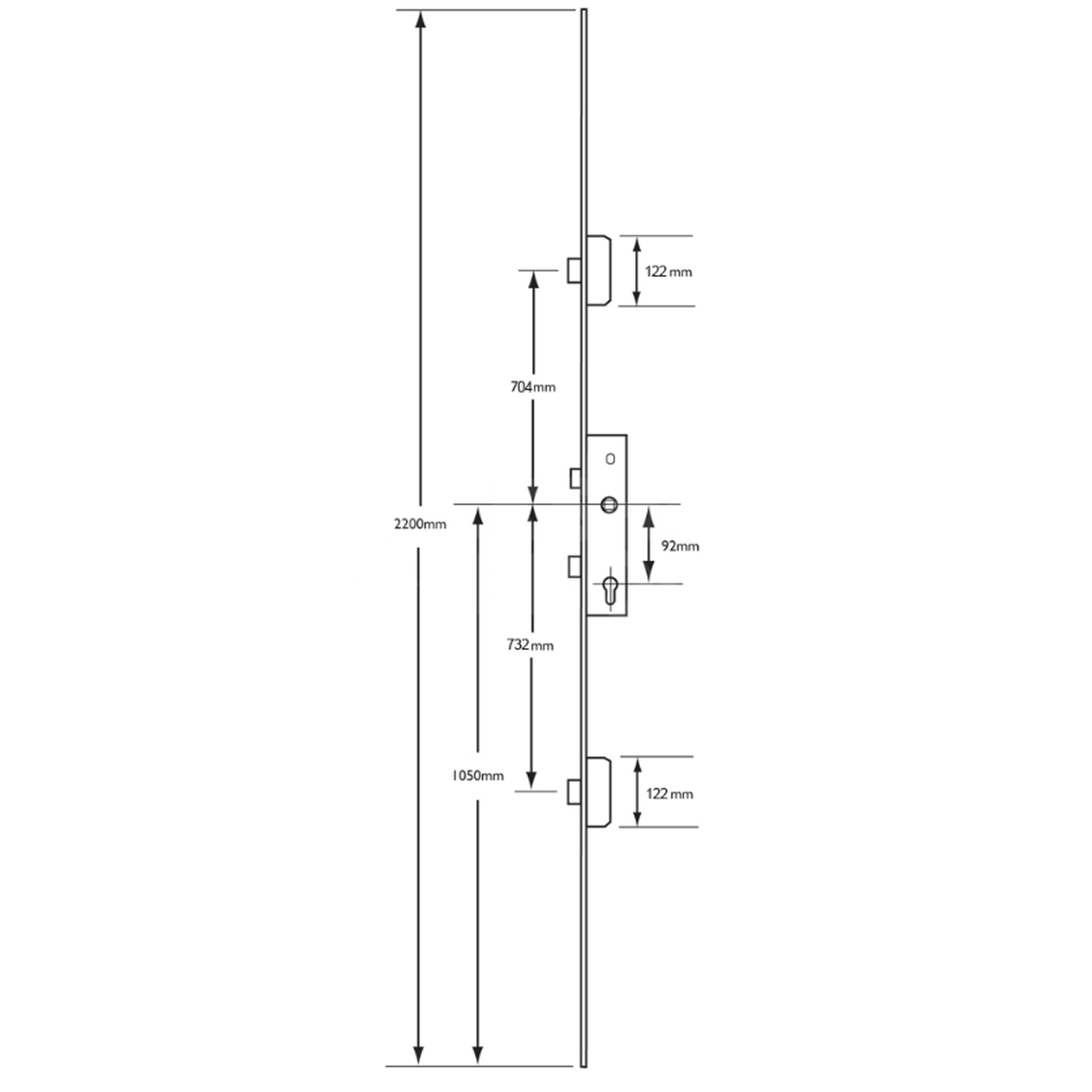

Dimensions Image: Lockmaster Single Spindle Lever Operated Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 45
Case Height 228
Locking Point Dead Bolt 2
Faceplate Width 16

FAQs

This lock uses a single spindle configuration, meaning it is designed for use with standard lever/lever handle sets where the internal and external handles are positioned at the same height.

In addition to the central latch and deadbolt in the main gearbox, this multipoint lock features two additional deadbolts positioned along the door edge for enhanced security and resistance against forced entry.

This unit is designed for broad compatibility and is suitable for uPVC, timber, and composite doors. It features industry-standard 92mm PZ centres and a 16mm flat faceplate. It is recommended to check that your existing door routing matches these dimensions before installation.

The lock is operated by lifting the handle to engage the multiple deadbolts along the door edge. Once the handle is lifted, the key can be turned to deadlock the system. To open, simply unlock with the key and push the handle down to retract the latch and deadbolts.
