skip to Lockmaster Twin Spindle 2 Hook Multipoint Door Lock

Lockmaster Twin Spindle 2 Hook Multipoint Door Lock

£85.27

(£71.06 ex VAT)

sku: PL18-19
  • Lockmaster PL18-19 with central latch, deadbolt and two hooks
  • 35mm backset and 16mm flat faceplate
  • Separate followers at 92mm and 62mm centres
  • Handle engages the hooks; key deadlocks the mechanism
  • Match the complete lock, furniture and profile-specific keeps
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Lockmaster PL18-19 is a lever-operated multipoint lock with a central latch and deadbolt and two hooks. This retained version has a 35mm backset, 16mm flat faceplate and twin 92mm/62mm follower centres.

The twin-spindle case has separate followers at 92mm and 62mm centres for matching handle arrangements. This is not the same as an inline split spindle sharing one follower axis. Outside latch operation depends on the correct furniture and spindle arrangement, not on the twin-spindle label alone.

Lift the handle to engage the hook locking points, then turn the cylinder key to deadlock the mechanism. Unlock with the key before lowering the handle to release the locking points and latch. Closing on the latch or lifting the handle alone is not the fully key-locked state.

Replacement fit: compare the exact reference and generation, backset, PZ centres, follower arrangement, faceplate shape, case routing, fixing holes, locking-point positions and profile-specific frame keeps. A matching brand or 92mm PZ measurement alone does not establish a direct replacement.

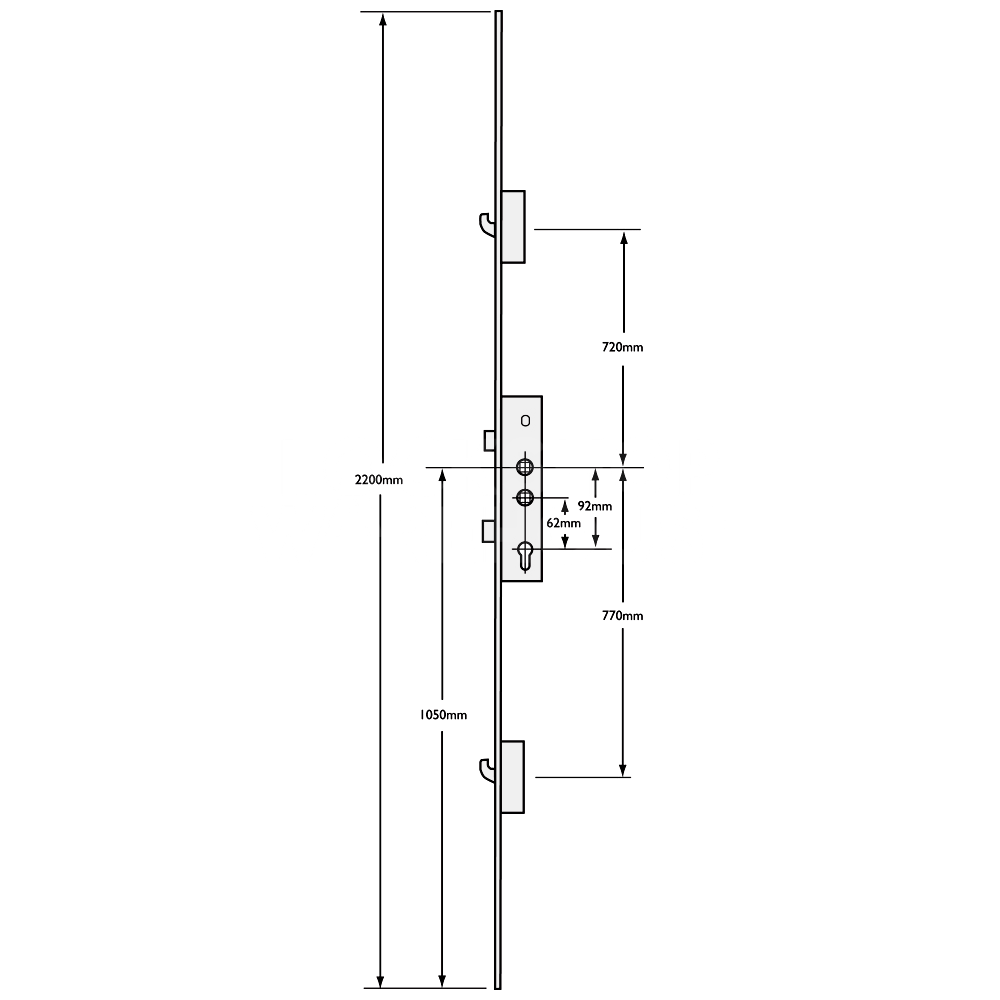

Dimensions Image: Lockmaster Twin Spindle 2 Hook Multipoint Door Lock
Part Size (mm)
Backset 35
Case Width 47
Case Height 228
Locking Point Hooks 2
Faceplate Width 16

FAQs

The twin-spindle case has separate followers at 92mm and 62mm centres for matching handle arrangements. This is not the same as an inline split spindle sharing one follower axis. Outside latch operation depends on the correct furniture and spindle arrangement, not on the twin-spindle label alone.

Match the exact reference and generation, backset, PZ centres, follower arrangement, faceplate shape, case routing, fixing holes, locking-point positions and frame keeps. Compare the existing mechanism and door preparation before ordering; shared branding or 92mm centres alone are not a fit guarantee.

Lift the handle to engage the hook locking points, then turn the cylinder key to deadlock the mechanism. Unlock with the key before lowering the handle to release the locking points and latch. Closing on the latch or lifting the handle alone is not the fully key-locked state.

This full-length locking unit provides multiple points of contact for enhanced door reinforcement, including:

  • Two hook bolts designed to resist forced entry and prying.
  • A central latch for everyday closure.
  • A central deadbolt for secondary security.
  • A 16mm flat faceplate that spans the height of the door.
