Lockmaster Twin Spindle Latch & Deadbolt Gearbox

£45.74

(£38.12 ex VAT)

sku: YALE-0081
  • Ideal cost-effective repair solution for faulty Lockmaster lock systems.
  • Features a twin spindle design with 92mm and 62mm centres.
  • Available in 35mm or 45mm backsets to fit standard door profiles.
  • Easily reversible latch accommodates both left and right-handed doors.
  • Robust latch and deadbolt mechanism for enhanced security.
  • Durable 228mm case height designed for long-lasting performance.

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Lockmaster Lever Operated Latch & Deadbolt Twin Spindle Gearbox is a premium replacement component designed to restore the functionality of your door's locking system. This gearbox serves as a cost-effective alternative to replacing a full multipoint lock assembly when the failure is isolated to the centre case.

Equipped with a twin spindle setup (92mm/62mm centres), this unit provides flexible operation modes. It is available with either a 35mm or 45mm backset, making it compatible with various uPVC and composite door setups. The sturdy construction features a 228mm case height and provides a reliable latch and deadbolt locking action.

Specifications:
  • Backset: 35mm or 45mm
  • Centres: 92mm & 62mm
  • Case Height: 228mm
  • Handing: Fully reversible latch

Operation: To lock, lift the lever to engage the locking mechanisms and perform one full turn of the cylinder. To unlock, perform one full turn of the key and push down on the lever.

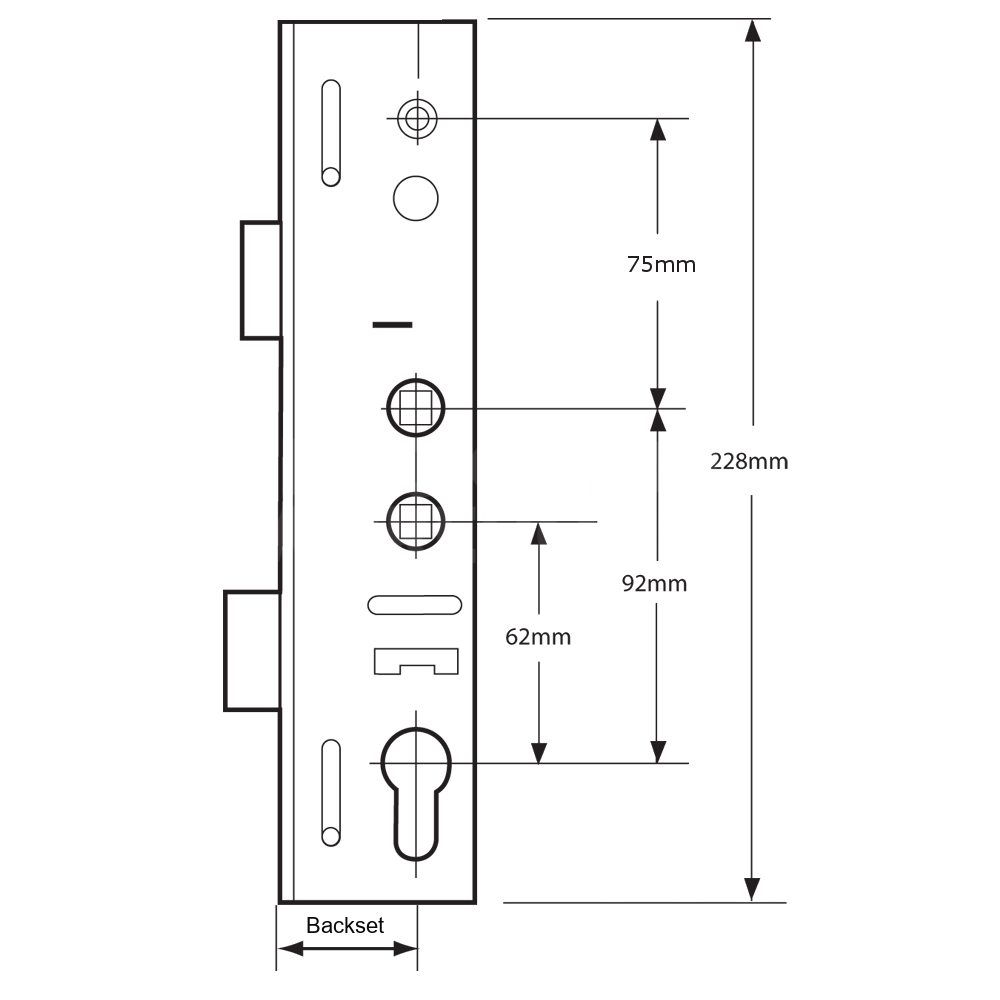

Dimensions Image: Lockmaster Twin Spindle Latch & Deadbolt Gearbox
Part Min (mm) Max (mm)
Backset 35 45
Case Width 50 60
Case Height 228 -

FAQs

This gearbox is designed as a direct replacement for Lockmaster multipoint locks. To ensure a correct fit, please check your existing measurements against these specifications:

  • Backset: Available in either 35mm or 45mm.
  • Centres: This unit features twin spindle centres at 92mm and 62mm.
  • Case Height: The total height of the metal gearbox case is 228mm.

Yes, the latch on this Lockmaster gearbox is fully reversible. This allows you to easily adjust the orientation to suit both left-handed and right-handed doors, making it a universal solution for most standard door configurations.

The twin spindle setup (92mm and 62mm centres) provides flexible operation modes. It is typically used for 'split spindle' or 'pad handle' applications where the external handle does not retract the latch without a key, providing an extra layer of security for your property.

This is a lever-operated gearbox. To lock the door, lift the handle lever upwards to engage the locking mechanisms and then perform one full turn of the key cylinder. To unlock, turn the key one full rotation and push the handle lever down to retract the latch and deadbolt.
