skip to Lockmaster Twin Spindle Multipoint Door Lock 2 Hook 2 Anti-Lift 4 Roller

Lockmaster Twin Spindle Multipoint Door Lock 2 Hook 2 Anti-Lift 4 Roller

£85.75

(£71.46 ex VAT)

sku: PL13-2ER-27
  • Twin spindle mechanism with 92mm and 62mm centres for flexible handle operation
  • Security configuration featuring two hooks and two anti-lift pins for enhanced protection
  • Four adjustable roller cams ensure optimal weather sealing and door compression
  • Euro profile lock case incorporating a central latch and deadbolt
  • Standard 16mm faceplate compatible with most UPVC and composite door profiles
  • Lever operated function for secure engagement of all locking points
  • Designed as a high-security solution for residential entrance doors
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Lockmaster Twin Spindle Multipoint Lock is a comprehensive security solution designed for external residential doors. This mechanism combines a central latch and deadbolt with multiple peripheral locking points, including two hooks and two anti-lift pins, specifically engineered to resist forced entry and lifting of the door leaf.

Featuring a twin spindle gearbox, this lock offers 92mm and 62mm centres. When used with a split spindle pack and compatible lever/pad furniture, it provides a 'night latch' function, preventing external access via the handle even when the door is unlocked. Four adjustable roller cams are distributed along the faceplate to facilitate smooth operation and ensure a tight seal against the door frame, reducing draughts and improving thermal efficiency.

This unit is frequently used as a direct replacement for failed mechanisms in existing door sets or for new door fabrication. It is compatible with standard Euro cylinders and designed for doors with a 16mm wide locking groove. Its robust construction makes it an ideal choice for maintaining the structural integrity and security of main entrance doors.

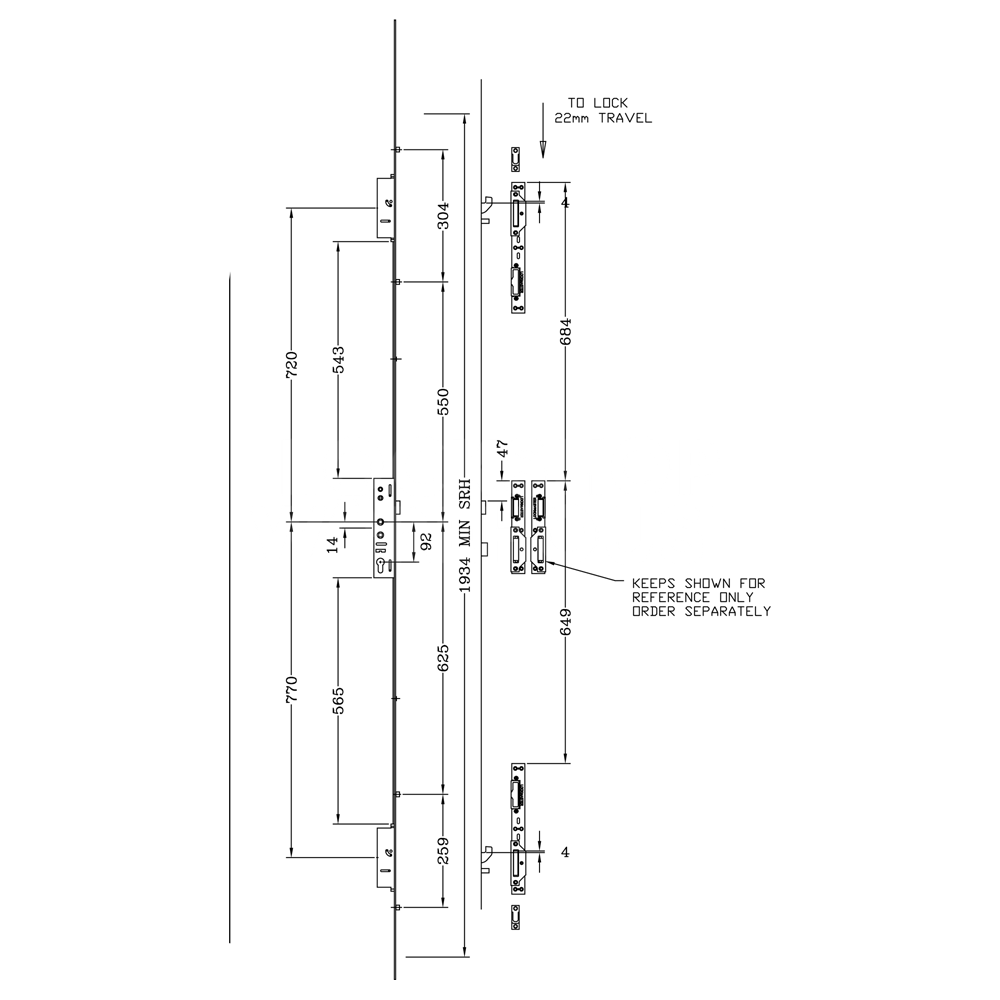

Dimensions Image: Lockmaster Twin Spindle Multipoint Door Lock 2 Hook 2 Anti-Lift 4 Roller
Part Size (mm)
Backset 35
Case Width 50
Case Height 228
Locking Point Anti Lift 2
Locking Point Roller 4
Faceplate Width 16

FAQs

The twin spindle gearbox offers two separate centres at 92mm and 62mm. When paired with a split spindle and compatible handles, it enables a 'night latch' function. This ensures that the door cannot be opened from the outside using the handle alone, even if the door is left unlocked, adding a layer of security to your home.

This high-security mechanism features a robust combination of locking points including:

  • Two steel hooks that securely engage with the door frame.
  • Two anti-lift pins designed specifically to prevent the door leaf from being pried or lifted out of position.
  • A central deadbolt for traditional core security.

This Lockmaster unit features a standard 16mm faceplate, which is the most common width for UPVC and composite door profiles. It is designed to fit into a standard 16mm locking groove and is compatible with any standard Euro profile cylinder.

The four adjustable roller cams are positioned along the faceplate to provide optimal door compression. By pulling the door tight against the frame seals, they help eliminate draughts and improve the thermal performance of your entrance, while also ensuring smooth operation of the locking sequence.
