Lockmaster Twin Spindle Multipoint Lock 4 Roller

£64.03

(£53.36 ex VAT)

sku: PL11-27
  • PL11-27 complete unit with four roller cams
  • Centre latch and deadbolt
  • Twin-spindle arrangement: match the existing followers and furniture
  • 16mm faceplate width alone does not establish a replacement fit
  • Check roller positions, case, fixings and keeps before replacement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The PL11-27 uses four roller cams along the door edge with a centre latch and deadbolt. It is a complete lock, not a replacement centre gearbox.

Match the original reference and complete locking layout. The twin-spindle arrangement must suit the fitted handles; do not assume that adding a split spindle changes the lock's operation. Roller adjustment and door alignment should follow the instructions for the exact installation.

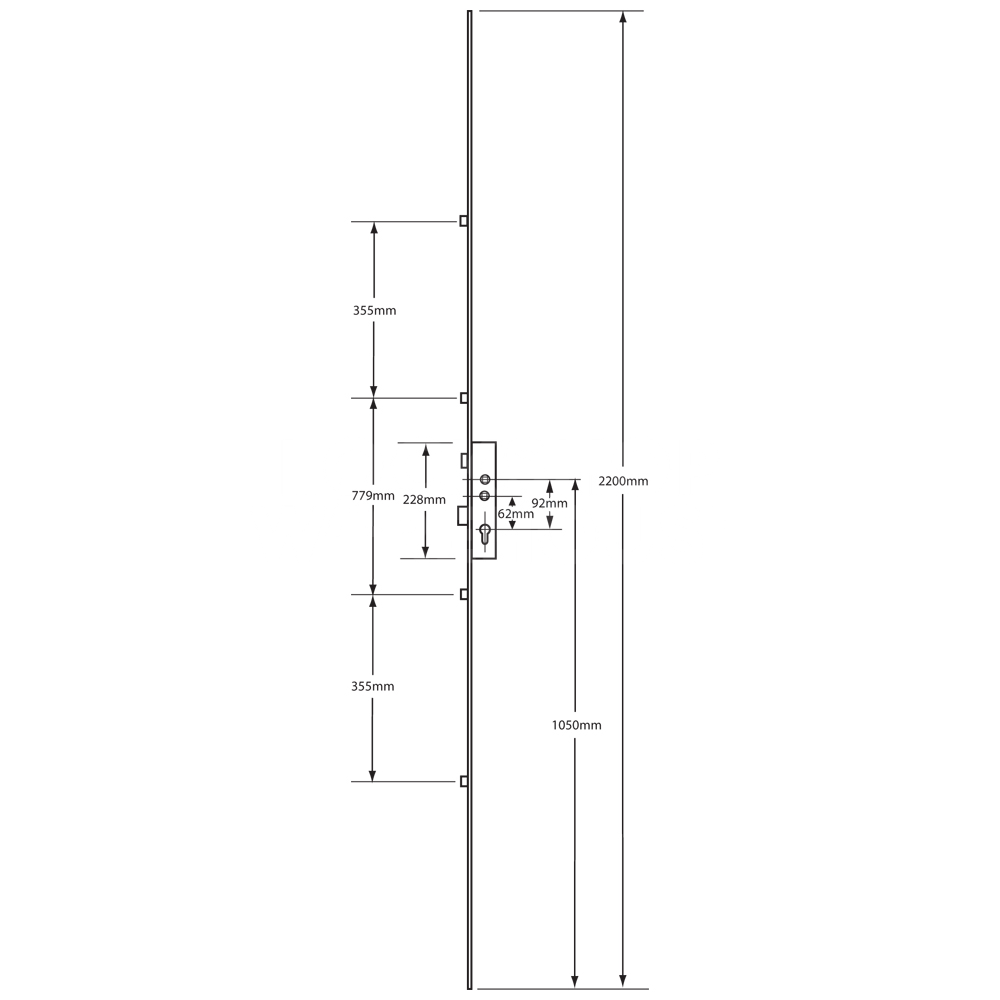

Dimensions Image: Lockmaster Twin Spindle Multipoint Lock 4 Roller
Part Size (mm)
centres 92
Backset 35
Case Width 47
Case Height 228
Locking Point Roller 4
Faceplate Width 16

FAQs

Match the twin follower positions to the handle arrangement on the door. Twin spindle is not evidence of a split-follower conversion or guaranteed nightlatch operation with any handle set.

The unit has four rollers plus a centre latch and deadbolt. These components have different functions, so their count should not be treated as a security rating.

Only if the complete mechanism matches the door. Compare backset, follower positions, case, length, fixings, roller locations and keeps; a 16mm groove alone is insufficient.

The rollers engage matching keeps to control door compression. They do not repair a distorted door or guarantee a draught-free seal; check alignment and seal condition as well.
