Lowe & Fletcher 0201 Mini Cam Lock

£10.79

(£8.99 ex VAT)

sku: 688
  • Conical head profile for a specific aesthetic and functional fit
  • Threaded body with nut fixing for secure installation in various panel types
  • 180-degree cam movement provides clear locked and unlocked positions
  • Supplied with two keys as standard for immediate use
  • Utilises the 800 key series with 100 available differs
  • Compact mini footprint designed for small enclosures and furniture
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Lowe & Fletcher 0201 Mini Cam Lock is a compact security solution designed for small-scale applications. It functions using a key-operated mechanism that rotates the rear cam through 180 degrees to secure or release a cabinet door, lid, or drawer. The conical head design provides a distinct profile that sits against the mounting surface, while the threaded body is secured from the rear using a standard nut fixing.

Typical applications include metal and wooden office furniture, medical cabinets, lockers, and industrial enclosures where space is at a premium. Its simple yet robust design makes it suitable for both new installations and as a replacement part for existing Lowe & Fletcher locking systems.

This lock is part of the 800 key series, offering 100 key differs for varied security requirements. Each unit is supplied with two keys, ensuring spare access is available from the outset. The mechanical operation is straightforward, requiring the key to be inserted and turned to actuate the cam mechanism directly.

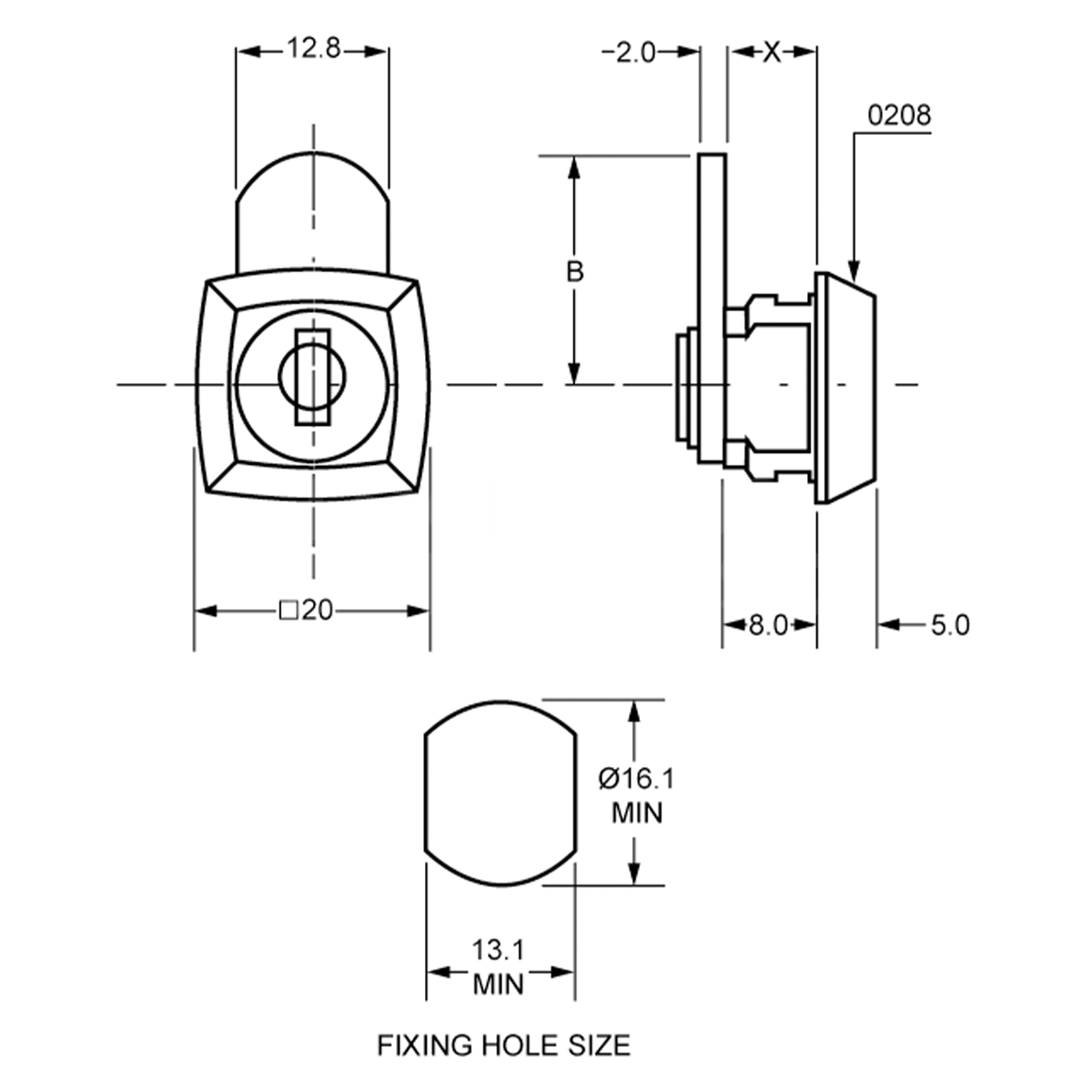

Dimensions Image: Lowe & Fletcher 0201 Mini Cam Lock
Part Size (mm)
Head Diameter 22
Body Width 13
Body Height 16
Body Length 8
Cam Length 30

Brand

SKU

688

Box Contents

2 keys

FAQs

Each Lowe & Fletcher 0201 Mini Cam Lock is supplied with 2 keys as standard, which are part of the 800 key series.

This lock features Movement 03, which allows for a 180-degree rotation. This means the cam can rotate a full half-turn between the locked and unlocked positions.

The lock is designed for a nut fixing, which ensures the unit is held firmly and securely in place against the mounting surface.

The lock features a conical head shape and is finished in a bright chrome, providing a professional and durable look suitable for a wide variety of applications.
