Lowe & Fletcher 1339 Cam Lock

£14.39

(£11.99 ex VAT)

sku: 692
  • Snap-fit fixing for rapid tool-free installation into pre-prepared apertures
  • Designed for 180-degree anti-clockwise operation to engage the locking cam
  • Compatible with the industry-standard 92 key series
  • Provides up to 200 individual locking combinations for enhanced security
  • Suitable for both metal and timber furniture applications
  • Ideal for securing cupboards, cabinets and storage lockers
  • Supplied with two keys for immediate deployment
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Lowe & Fletcher 1339 Cam Lock is a versatile security component specifically engineered for the fast and secure locking of cupboards, cabinets and storage furniture. Utilising a snap-fit fixing system, this lock is designed for efficient installation into standardised apertures without the need for additional threaded nuts or screws, making it a preferred choice for high-volume furniture production and quick maintenance repairs.

This lock operates with a 180-degree anti-clockwise movement, ensuring a firm and reliable engagement of the cam. It is integrated into the 92 key series, which offers a range of up to 200 different locking differs. This makes the 1339 model highly suitable for environments where multiple units are used and distinct access control is required across various compartments.

Typical applications for this cam lock include:

  • Office filing cabinets and metal storage units
  • Retail display cases and timber cabinetry
  • Replacement of existing snap-fit locks in commercial environments

Whether used as a direct replacement part or for new-build installations, the 1339 provides a reliable and industry-standard locking solution for various storage applications.

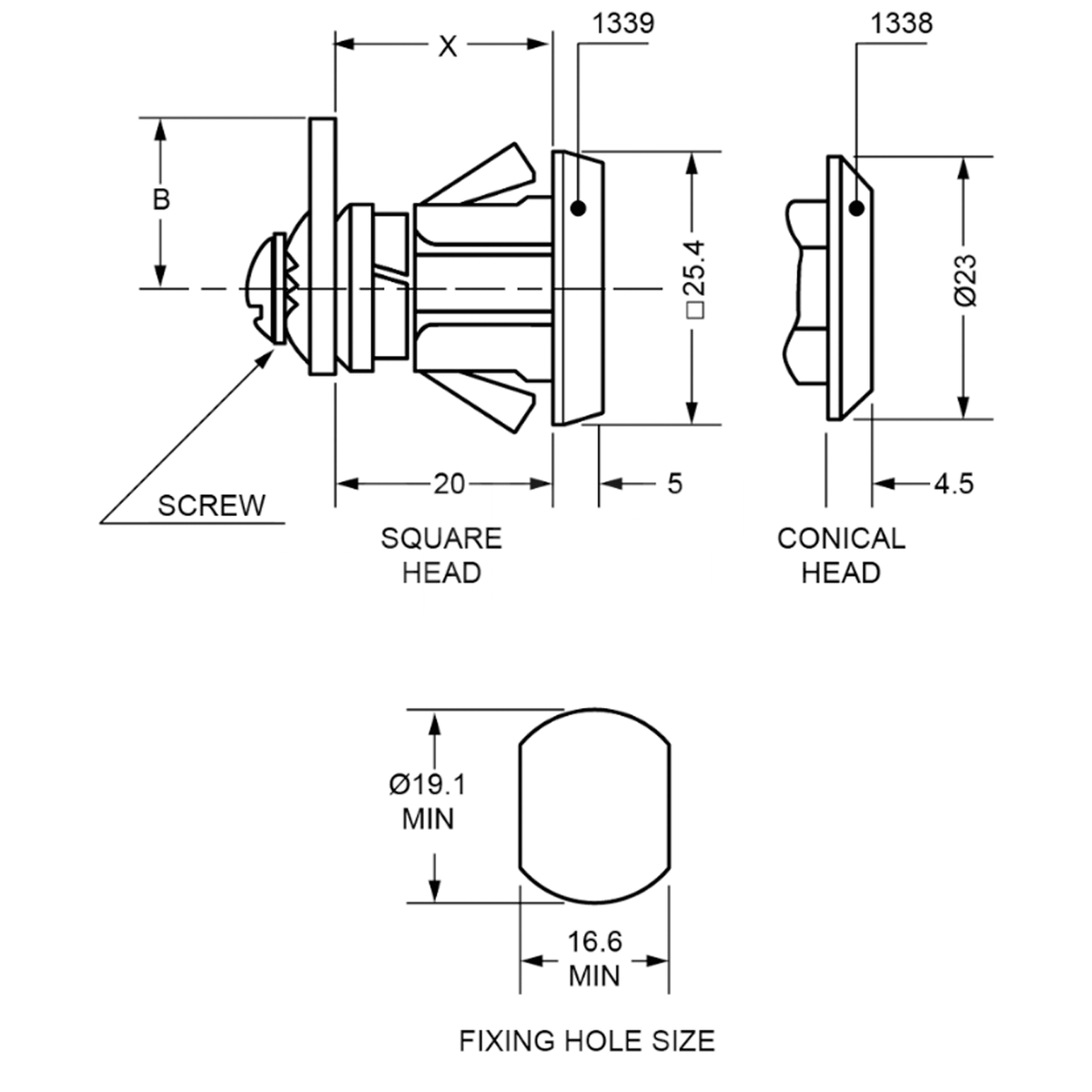

Dimensions Image: Lowe & Fletcher 1339 Cam Lock
Part Size (mm)
Head Diameter 25
Body Width 16
Body Height 19
Body Length 20
Cam Length 51

Brand

SKU

692

Box Contents

2 keys

Cam Lock

FAQs

This snap-fit cam lock is specifically designed for a wide range of furniture applications. It is most commonly used for securing cupboards, cabinets, and office lockers.

The 1339 model features a snap-fit fixing mechanism. This allows the lock to be quickly and easily installed by pushing it into the mounting hole, where it securely snaps into place without the need for additional nuts or screws.

Each lock is supplied with 2 keys. It belongs to the 92 key series and offers 200 different locking combinations (differs), ensuring a high level of security for multiple installations in the same area.

The lock operates with a 180-degree anti-clockwise movement. The attached cam has a height of 51mm, providing a generous reach for securing various door and drawer thicknesses.
