Lowe & Fletcher 1346 Multi Drawer Lock (Rollerarm)

£11.99

(£9.99 ex VAT)

sku: LF1346MDL
  • Engineered to secure multiple drawers through a central locking bar system
  • Features a rear rollerarm cam for smooth vertical bar movement
  • Quick-fit snap-clip mechanism designed specifically for metal furniture
  • High-security cylinder with up to 200 unique key differs
  • Compatible with the 92 key series for consistent suite management
  • Supplied with two keys as standard
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Lowe & Fletcher 1346 Multi Drawer Lock is a specialised security solution designed for metal filing cabinets. This lock operates by rotating a rollerarm cam located at the rear of the cylinder. When the key is turned, the cam engages with an external locking bar (available separately), driving it downwards to lock the drawers.

This mechanism is typically used in office environments where a single lock is required to secure an entire stack of drawers. As the bar moves, integrated pegs engage with catch plates on the side of each drawer, preventing them from being opened simultaneously. The 1346 model is designed for a snap-clip fixing, making it ideal for installation into thin metal panels commonly found in modern office storage.

  • Function: Key rotation moves the roller cam to actuate the locking bar.
  • Application: Primary choice for metal multi-drawer filing cabinets and pedestals.
  • Installation: Secure snap-clip fixing for rapid assembly.
  • Compatibility: Designed for use with standard vertical locking bars and 92 series keys.

Whether used as a replacement for a damaged unit or for new furniture assembly, this lock ensures reliable performance and keyed security for sensitive documents and office supplies.

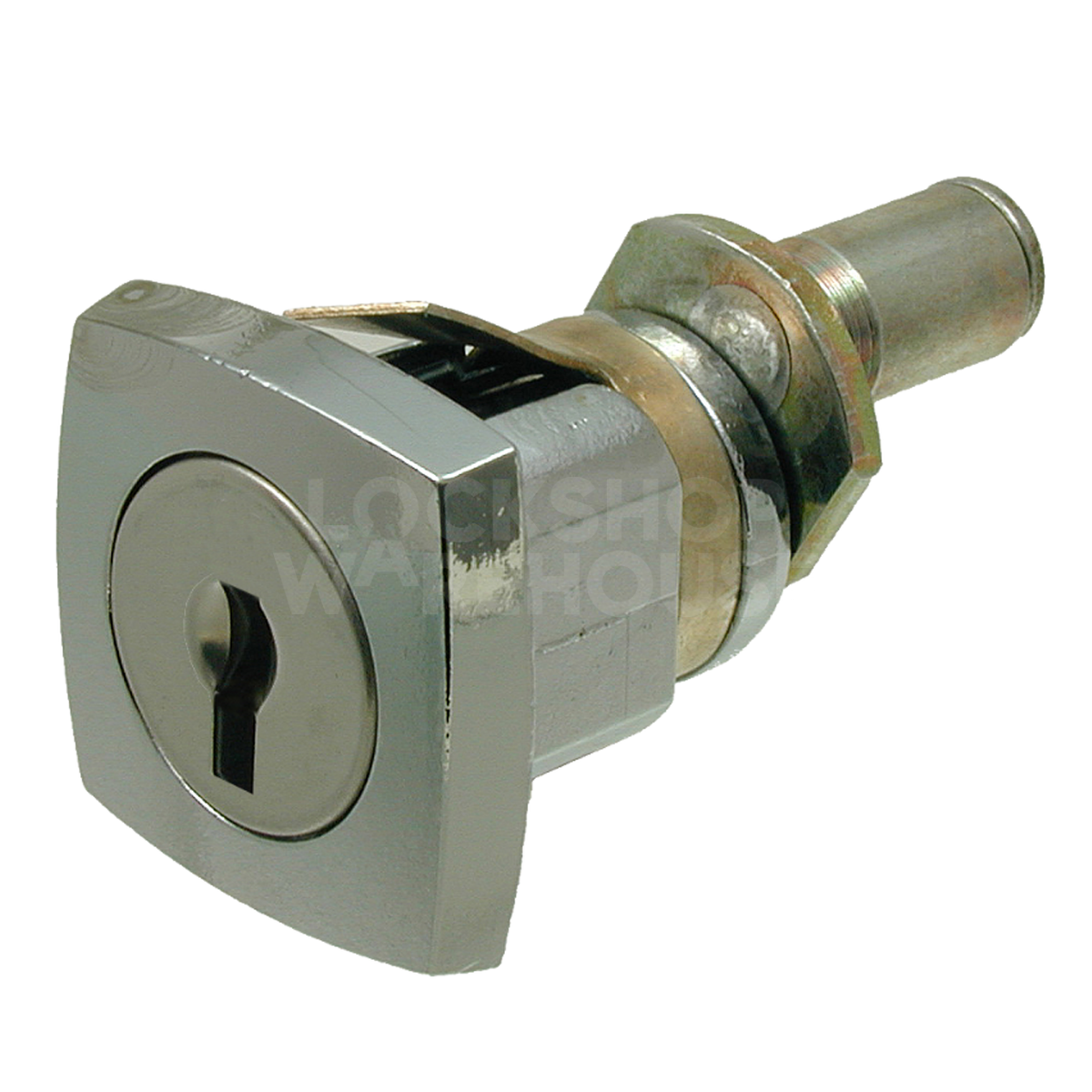

Dimensions Image: Lowe & Fletcher 1346 Multi Drawer Lock (Rollerarm)
Part Size (mm)
Depth 40
Head Diameter 24

Brand

SKU

LF1346MDL

Box Contents

Lock

2 keys

FAQs

When the key is turned, it rotates a roller cam on the back of the lock. This action moves an internal locking bar (not supplied) downwards, allowing pegs on that bar to engage with catch plates on the side of the drawers to keep them securely closed.

This lock uses a snap-clip fixing method, which is specifically designed for installation in metal filing cabinets rather than wooden furniture.

No, the vertical locking bar and the catch plates required for the drawers are not included with the lock. This product consists of the lock cylinder, the roller cam mechanism, and two keys.

This Lowe & Fletcher lock features a 24mm square head with a durable nickel finish. It uses the 92 key series with 200 possible differs and is supplied with two keys.
