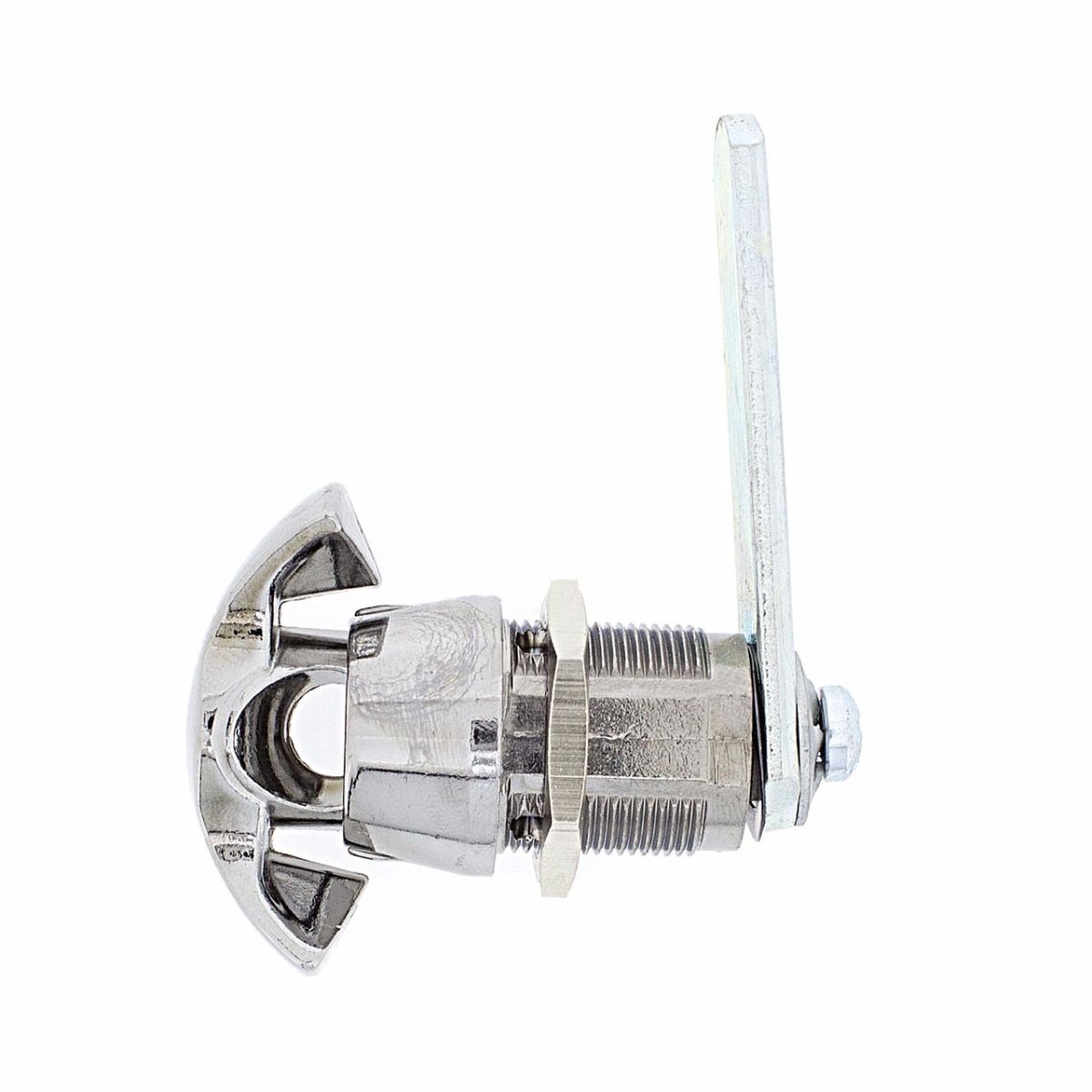

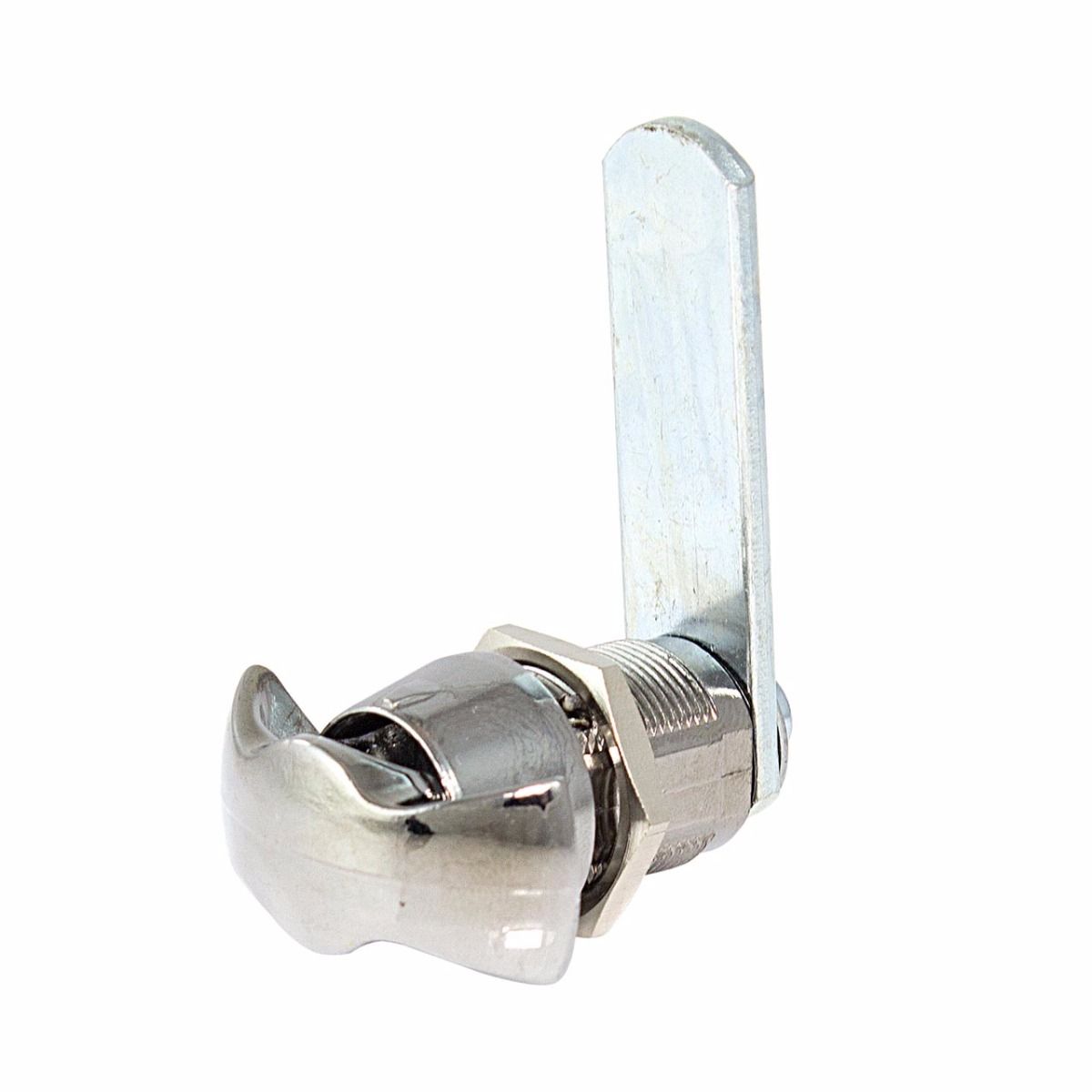

Lowe & Fletcher 5720 Formerly 4421 Latchlock Cam Lock

£7.08

(£5.90 ex VAT)

sku: 698
  • Operates via a push-to-engage handle with 180-degree rotation
  • Secures both open and closed positions using a standard padlock
  • Designed to accept padlocks with a shackle diameter up to 7mm
  • Supplied with a nut fixing for secure installation on panels
  • Ideal for use in lockers, cupboards, and metal furniture
  • Provides keyless access management for multiple users
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Lowe & Fletcher 5720 (formerly 4421) is a robust latchlock cam lock designed for use with padlocks. Unlike standard keyed cam locks, this unit functions by pushing the conical handle inward to engage the internal mechanism, followed by a 180-degree rotation to throw the cam. Once in position, the handle can be secured using a padlock, preventing unauthorised rotation.

This latchlock is particularly suited for locker applications in schools, leisure centres, and workplaces where users prefer to provide their own locking device. It is designed to accommodate padlock shackles with a maximum diameter of 7mm. The 180-degree movement allows for flexible orientation depending on the door handing or enclosure design.

Typical applications include metal and wooden lockers, storage cabinets, and industrial enclosures. It is supplied with a nut fixing for a reliable and stable fit through standard panel preparation. Whether used as a replacement part for existing 4421 models or for new installations, it offers a durable solution for keyless security management.

Part Size (mm)
Head Diameter 22
Body Width 16
Body Height 19
Body Length 20
Cam Length 51

FAQs

To operate the lock, push the conical handle inward to engage the internal cam mechanism. Once engaged, rotate the handle through 180 degrees to open or close the latch.

Yes, the handle is designed with a hole that allows it to be locked in both the open and closed positions. For optimal security, use a padlock with a maximum shackle diameter of 7mm.

This model features a 43mm handle and provides a 180-degree rotation (Movement 03). This allows for flexible positioning and secure latching in various cabinet configurations.

The unit features a durable bright chrome finish and a conical head shape. It is designed for installation using a secure nut fixing method, ensuring a firm attachment to your door or panel.
