L & F 5804 Pedestal Drawer lock

£11.99

(£9.99 ex VAT)

sku: 2937
  • Designed for use in multi-drawer pedestal desk units
  • Provides an internal locking mechanism for commercial office furniture
  • Compatible with standard Lowe & Fletcher 18 series key profiles
  • Features a 180-degree movement for clear locked and unlocked positions
  • Includes a secure internal clip for simplified mounting onto the drawer front
  • Offers 200 key differs to ensure individual security across multiple installations
  • Operates as a direct replacement part for common pedestal lock configurations
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Lowe & Fletcher 5804 is a robust pedestal drawer lock engineered specifically for securing multi-drawer office furniture. This type of lock is typically utilised in pedestal units where a single cylinder controls a vertical locking bar or internal mechanism to secure two or more drawers simultaneously.

This lock is a standard choice for office desks and storage cabinets. It features a rectangular head and is designed to clip securely onto the internal face of the drawer front using the provided fixing clip. This mounting method ensures a clean external appearance while providing reliable mechanical operation for high-traffic environments.

Typical applications include:

  • Replacement of damaged locks in existing office suites
  • Installation into new pedestal desk units
  • Security upgrades for multi-drawer filing cabinets

With a 180-degree movement and 200 available key differs, the 5804 provides effective security for individual workstations. The unit is designed for durability and ease of maintenance, making it a reliable component for both furniture manufacturers and maintenance professionals.

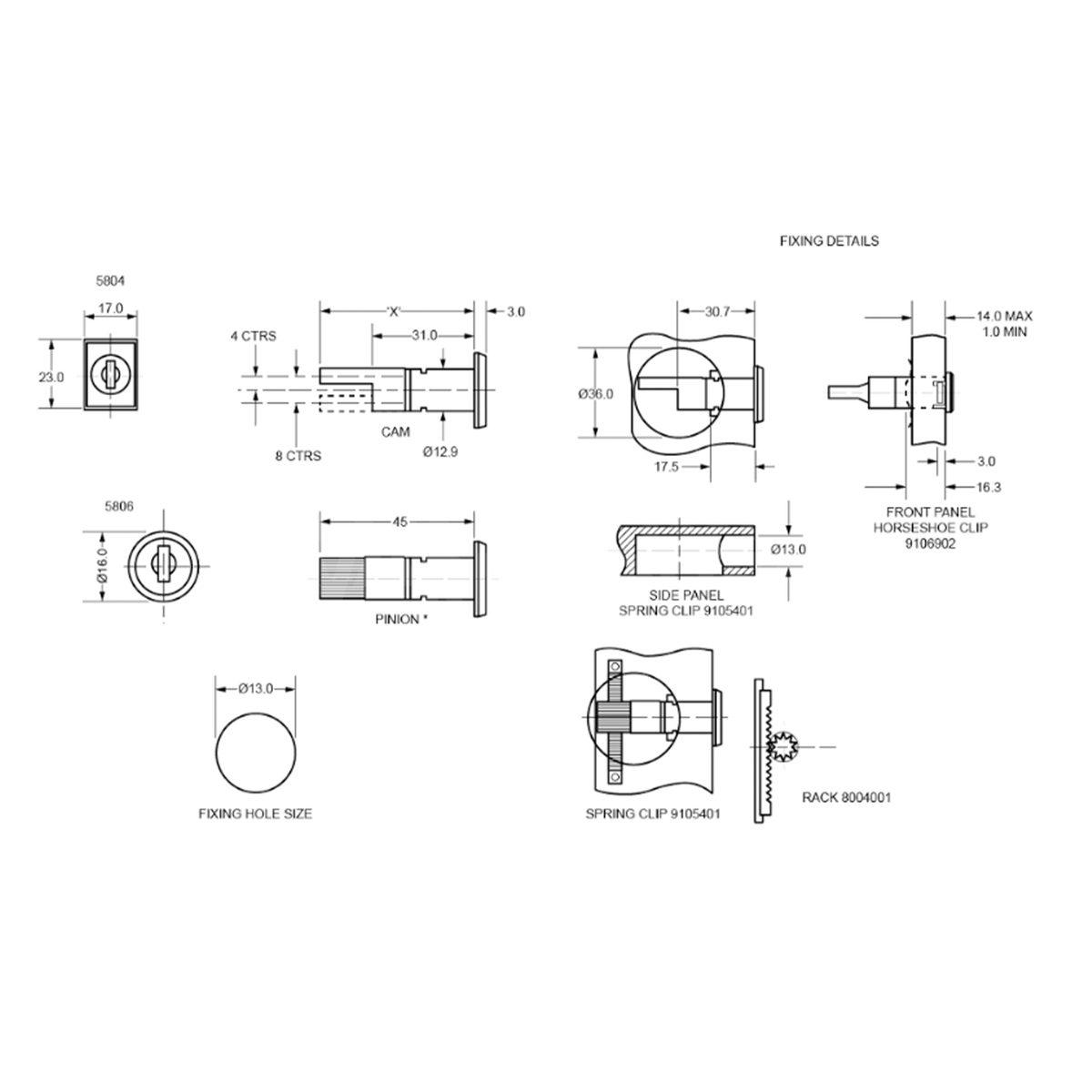

Dimensions Image: L & F 5804 Pedestal Drawer lock
Part Size (mm)
Body Length 31

Brand

SKU

2937

Box Contents

Cam Lock

2 keys

FAQs

This lock is designed specifically as a replacement for pedestal desks with two or more drawers that use this style of locking mechanism. It is a standard solution for securing multiple drawers in a single unit.

Installation is straightforward as the lock is designed to clip onto the inside of the drawer. The necessary mounting clip is included with the product, so no additional specialized hardware is required for standard replacement.

To ensure a proper fit, check that your drawer has a body diameter requirement of 12mm. The lock has a rectangular head measuring 23mm x 17mm and an overall length of 51mm.

Each lock comes with 2 keys from the L&F 18 series. For installations requiring multiple unique locks, this model offers up to 200 differs (unique key combinations).
