skip to Maco C-TS Stable Door Lock Set

Maco C-TS Stable Door Lock Set

£233.84

(£194.87 ex VAT)

sku: MACO-0059
  • MACO C-TS legacy stable-door set
  • 104707: 35mm; 104709: 45mm backset
  • Upper and lower leaf mechanisms must be matched as a set
  • Check the coupling arrangement, cylinder controls and keeps
  • Use the operating instructions for this exact legacy generation

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The MACO C-TS stable-door set is supplied here as legacy articles 104707 (35mm backset) and 104709 (45mm backset). It is intended for a matched upper/lower stable-door assembly.

This is the legacy 104707/104709 stable-door set. Match both upper and lower mechanisms, their coupling arrangement, cylinder controls and keeps to the original installation. Do not assume that unlocking automatically couples the leaves, or substitute the operating instructions for a newer C-TS stable-door generation.

Replacement fit: match the exact article and generation, backset, PZ centres, follower, faceplate profile, case routing, fixing holes, locking-point positions, drive connections and profile-specific keeps. Common MACO branding or 92mm PZ centres alone do not establish compatibility.

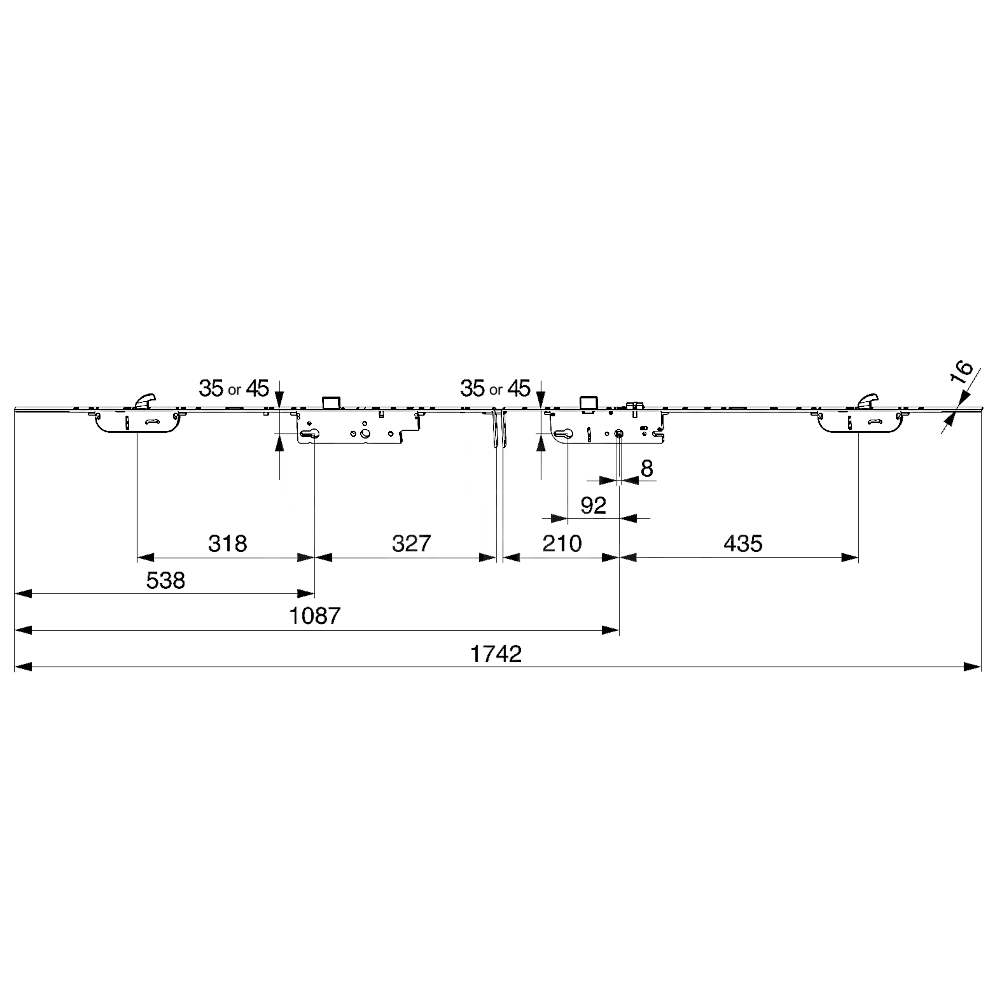

Dimensions Image: Maco C-TS Stable Door Lock Set
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1742 -
Faceplate Width 16 -

FAQs

This is the legacy 104707/104709 stable-door set. Match both upper and lower mechanisms, their coupling arrangement, cylinder controls and keeps to the original installation. Do not assume that unlocking automatically couples the leaves, or substitute the operating instructions for a newer C-TS stable-door generation.

Compare the exact article and generation, backset, PZ centres, follower, handle fixings, spindle length, faceplate profile, routing, locking-point positions and frame keeps with the existing door. Shared MACO branding or 92mm centres alone are not a fit guarantee.

Set the reversible latch using the instructions for the actual lock revision, then check the complete door and keep arrangement. A reversible latch does not make every left- and right-hand profile, fitting or frame keep interchangeable.

This is the legacy 104707/104709 stable-door set. Match both upper and lower mechanisms, their coupling arrangement, cylinder controls and keeps to the original installation. Do not assume that unlocking automatically couples the leaves, or substitute the operating instructions for a newer C-TS stable-door generation.
