Maco GTS 2 Hook 2 Mushroom Single Spindle Repair Lock

£68.35

(£56.96 ex VAT)

sku: MACO-0050
  • 242330: listed 28mm version
  • 242331: listed 35mm version
  • Listed single-spindle lock with two hooks and two mushroom cams
  • Match the exact article, routing, locking-point positions and keep profile

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

Compare the supplied mechanism with the original door and frame, including centre-case preparation, connections and locking-point layout. A common MACO name, faceplate width or PZ measurement is not a direct replacement approval.

Replacement claims for older 56231 or 233051 locks need the repair instructions for the exact original and replacement articles. Confirm the required keep changes and routing before fitting; a change from rollers to mushrooms is not simply a compression adjustment.

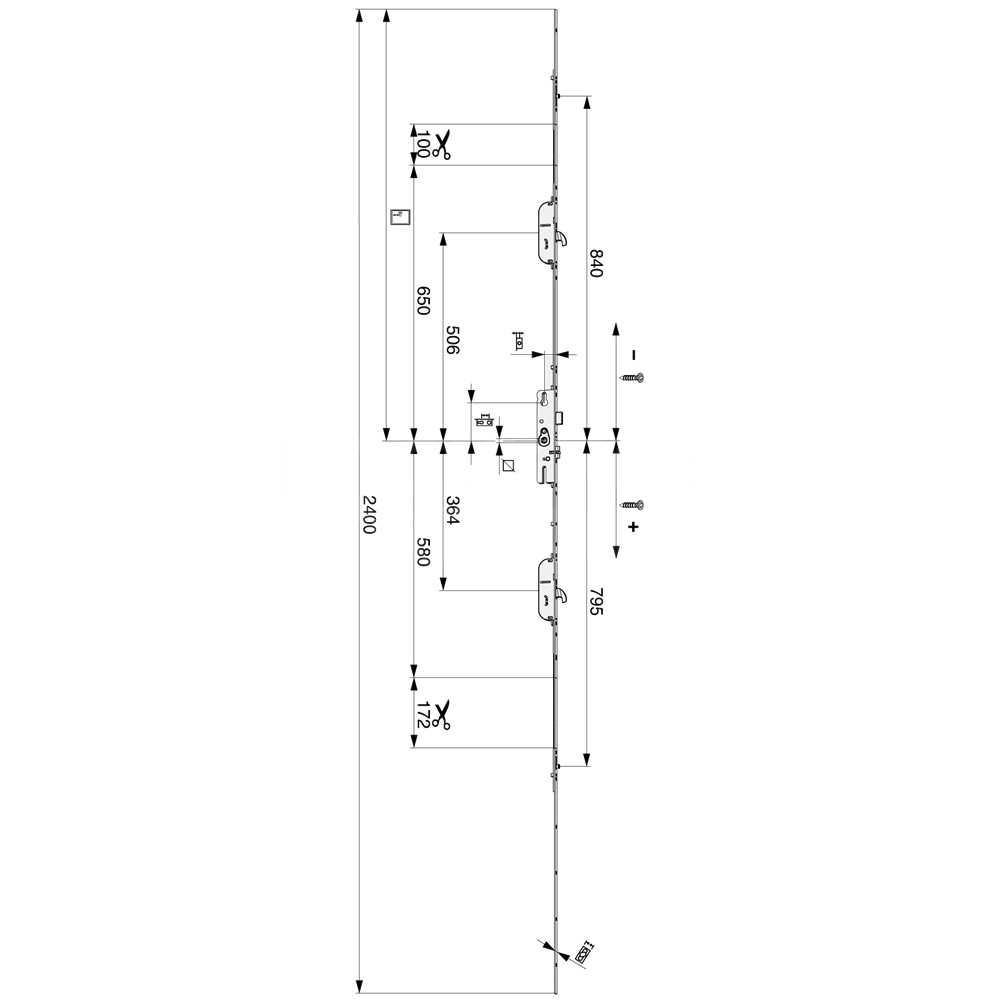

Dimensions Image: Maco GTS 2 Hook 2 Mushroom Single Spindle Repair Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 28 35
Locking Point Hooks 2 -
Locking Point Mushroom 2 -
Faceplate Width 16 -
