Maco Lever Operated Latch & Deadbolt 4 Mushroom Multipoint Lock

£57.83

(£48.19 ex VAT)

sku: MACO-0005
  • Four i.S. mushroom locking cams plus central latch and deadbolt
  • 232010: 28mm; 232011: 35mm; 232013: 45mm backset
  • 92mm PZ, 8mm follower and 16mm faceplate
  • Handle-operated mechanism secured with the cylinder key
  • Match the actual strip length, point positions and exact frame keeps

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The MACO G-TS Module PT has four i.S. mushroom locking cams plus a central latch and deadbolt. The retained articles are 232010 (28mm backset), 232011 (35mm) and 232013 (45mm), listed with 92mm PZ centres, an 8mm follower and a 16mm faceplate.

With the door correctly aligned, lift the handle to engage the G-TS locking mechanism, then use the cylinder key to secure it. Unlock with the key before lowering the handle to release the locking points. Closing on the spring latch alone is not the fully locked state.

Replacement fit: match the exact article and generation, backset, PZ centres, follower, faceplate profile, case routing, fixing holes, locking-point positions, drive connections and profile-specific keeps. Common MACO branding or 92mm PZ centres alone do not establish compatibility.

The locking cams provide compression against matching keeps. Correct adjustment, seals and door alignment determine weather performance; adding or adjusting a cam is not a guarantee of draught-free, waterproof or improved acoustic performance.

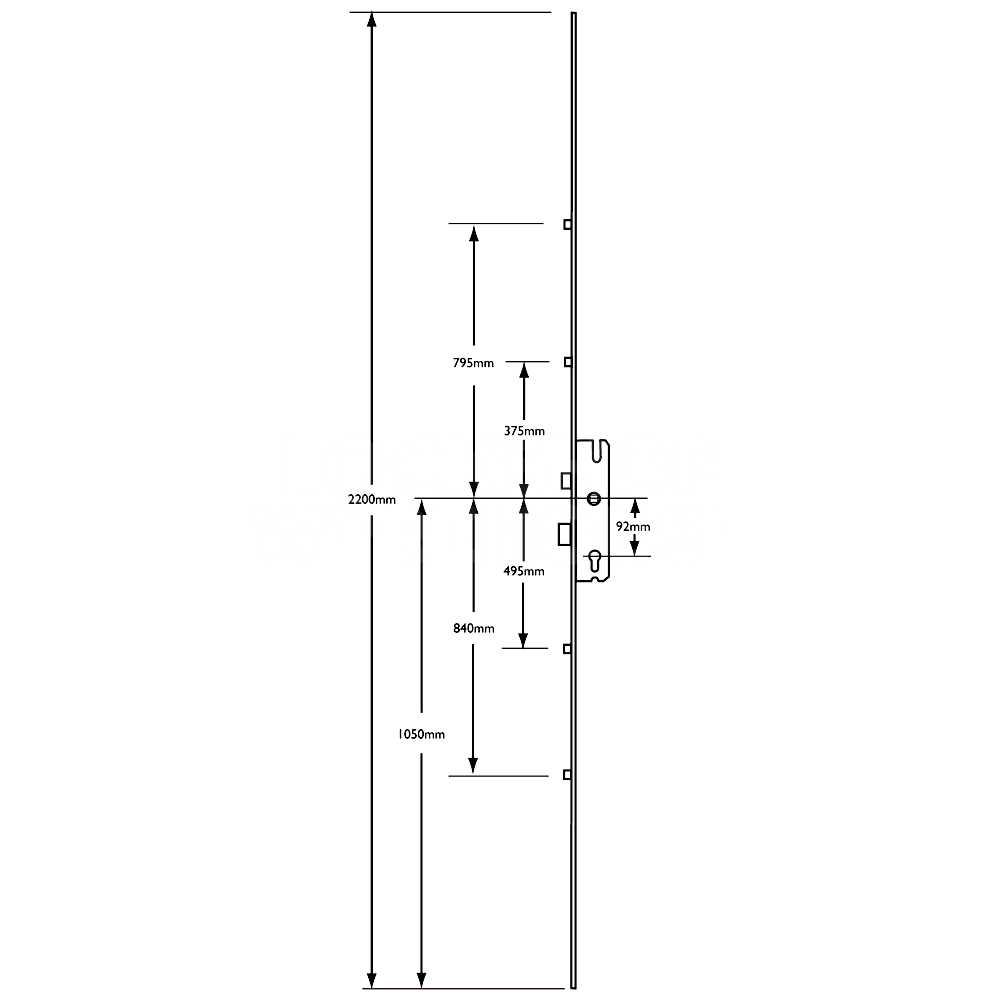

Dimensions Image: Maco Lever Operated Latch & Deadbolt 4 Mushroom Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 28 45
Body Length 2200 -
Case Width 43 60
Case Height 226 -
Locking Point Mushroom 4 -
Faceplate Width 16 -

FAQs

With the door correctly aligned, lift the handle to engage the G-TS locking mechanism, then use the cylinder key to secure it. Unlock with the key before lowering the handle to release the locking points. Closing on the spring latch alone is not the fully locked state.

Compare the exact article and generation, backset, PZ centres, follower, handle fixings, spindle length, faceplate profile, routing, locking-point positions and frame keeps with the existing door. Shared MACO branding or 92mm centres alone are not a fit guarantee.

The locking cams provide compression against matching keeps. Correct adjustment, seals and door alignment determine weather performance; adding or adjusting a cam is not a guarantee of draught-free, waterproof or improved acoustic performance.

Compare the exact article and generation, backset, PZ centres, follower, handle fixings, spindle length, faceplate profile, routing, locking-point positions and frame keeps with the existing door. Shared MACO branding or 92mm centres alone are not a fit guarantee.
