Maco M-TS Clip-on Cable Transition

£97.15

(£80.96 ex VAT)

sku: MACO-0073
  • Designed for use with the MACO M-TS electronic multipoint locking system
  • Facilitates secure power and data transfer from the door frame to the leaf
  • Simple clip-on installation for efficient assembly and maintenance
  • Suitable for door profiles featuring 4mm and 12mm air gaps
  • Protects internal wiring from damage and wear during door operation
  • Maintains a clean and integrated appearance for electronic door hardware

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

MACO M-TS cable transition. The available cable transitions are 466833 with a 2.5m sash cable and 6m frame cable, or 480254 with a 1.5m sash cable and 6m frame cable.

Match the cable-transfer arrangement to the door profile, hinge geometry, air gap and required opening angle. A nominal 4mm or 12mm gap alone does not establish suitability. The profile-specific M-TS installation drawing defines routing, recesses and the required tray or cover; these are separate components, not a universal complete kit.

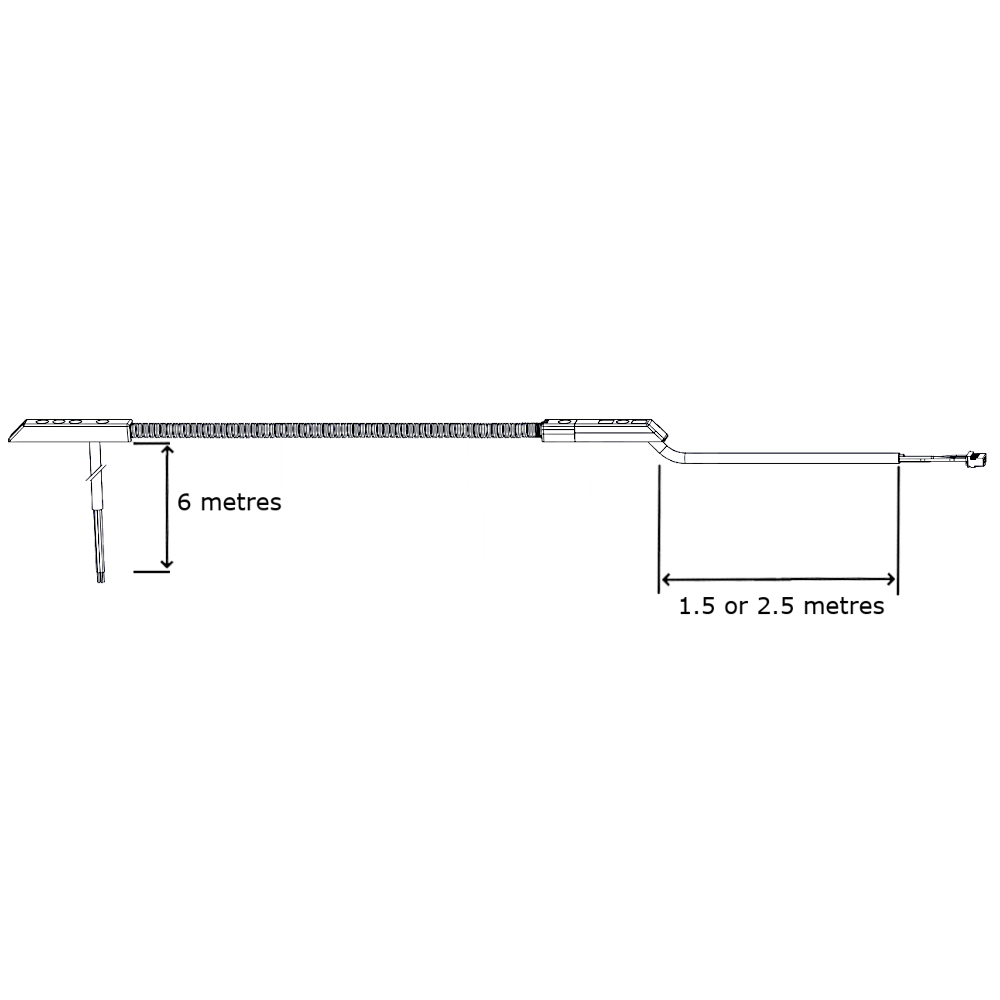

Dimensions Image: Maco M-TS Clip-on Cable Transition
Part Min (mm) Max (mm)
Body Length 1500 2500
