skip to Maco M-TS E Motorised Multipoint Lock

Maco M-TS E Motorised Multipoint Lock

£393.50

(£327.92 ex VAT)

sku: MACO-0064
  • Motorised multipoint locking with two hooks, a central latch and deadbolt
  • Automatic locking when the correctly aligned door closes
  • Designed for PVC-U door profiles; match the selected backset and faceplate
  • 24V DC system with separately specified power supply and cable transfer
  • Optional MACO 480259 module provides local Bluetooth access through the Instinct app
  • Mechanical operation and power-failure behaviour depend on the lock state; see the installation instructions
Document Icon MACO M-TS PVC-U installation and maintenance Document Icon MACO M-TS commissioning checklist and system components

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

CE Marked
Latch & Deadbolt

MACO M-TS combines motorised locking with mechanical cylinder and inside-handle operation. The selected model must match the door profile, backset, PZ centres, faceplate and keep positions; a shared brand or PZ measurement alone does not establish replacement compatibility.

The installation needs a suitable 24V DC supply, a correctly routed cable transfer, compatible keeps and the profile-specific trigger magnet. Magnet 229382 is the PVC-U 13mm-Eurogroove, 12mm-gap version. The system components are supplied separately; the required combination depends on the actual installation.

The optional 480259 Bluetooth module works with the MACO Instinct app locally; internet-based remote access requires separately verified integration.

A power failure in the fully open or fully closed state permits the manual operation described by MACO. If power fails during motor movement, the mechanism may block. MACO recommends UPS 480987 and requires suitable backup where a failure could endanger people. The UPS also needs an additional connected load, such as the Bluetooth module or access control, to remain active. Use the matching manual and commissioning checklist for installation.

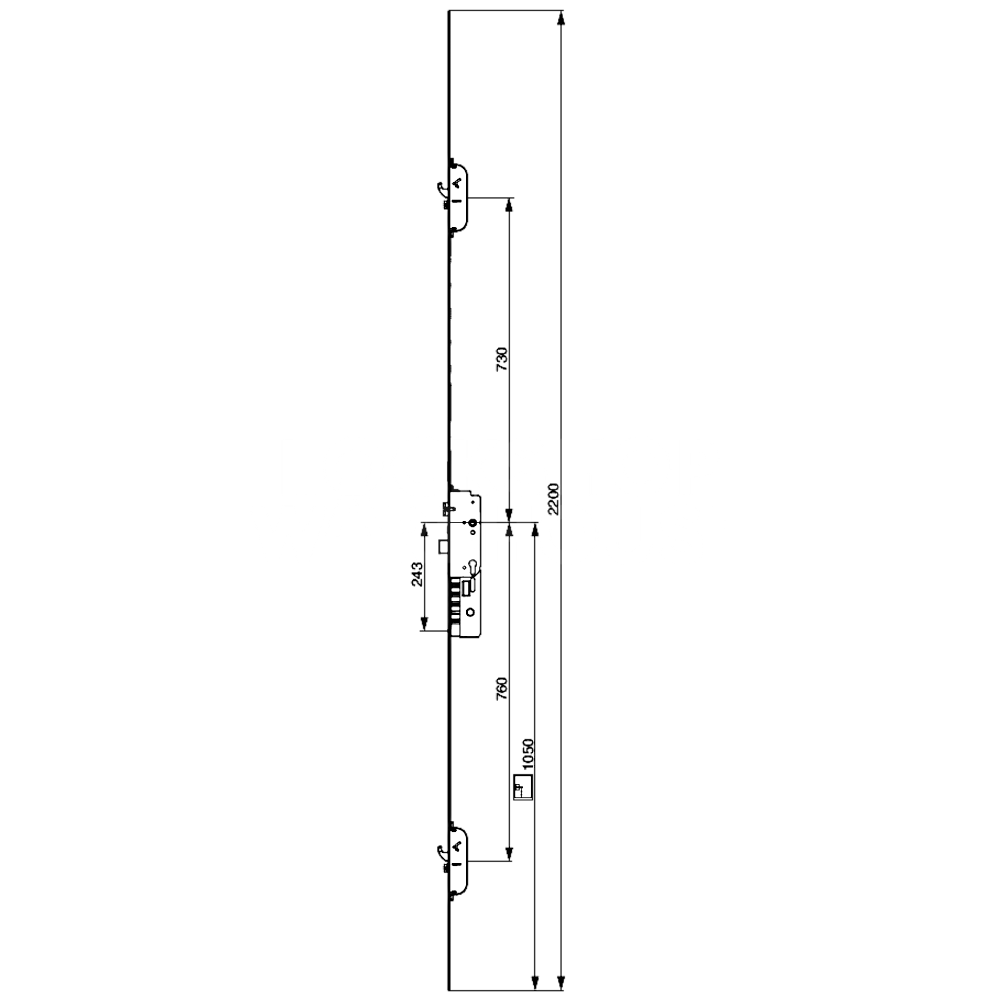

Dimensions Image: Maco M-TS E Motorised Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 2200 -
Case Width 53 63
Case Height 193 -
Locking Point Hooks 2 -
Faceplate Width 24 -

Brand

SKU

MACO-0064

Power Supply

24V DC SELV (+/-5%); 1A nominal, up to 3A briefly. Compatible power supply required separately.

Certifications

ce CE Marked

FAQs

Yes, the Maco M-TS features motorised operation that automatically engages the dual hook locking points and the central deadbolt as soon as the door is closed, ensuring constant security without needing to lift a handle.

Manual operation is available in the fully open or closed state as described by MACO. A power failure during motor movement may block the mechanism. The specified UPS and correctly configured system help prevent that interruption; do not assume unrestricted operation during every outage.

The optional MACO 480259 Bluetooth module provides local access through the MACO Instinct app. Other access-control or internet-based integrations need their own compatibility and electrical checks; this lock is not automatically compatible with every smart-home system.

This motorised multipoint lock is specifically engineered for use on both front and side UPVC door profiles. It is designed for single spindle operation and is an excellent choice for modern residential door systems.
