Maco M-TS Day Release Passage Function Device

£33.91

(£28.26 ex VAT)

sku: 478685
  • Frame-mounted day-release component for a compatible MACO M-TS installation
  • 478685 version with a manual slider
  • Temporary passage operation depends on the correctly configured complete locking system
  • Requires matching frame geometry and lock-side day-release components
Document Icon MACO M-TS PVC-U installation: day-release requirements, pages 20-23 Document Icon MACO M-TS timber installation: day-release requirements, pages 20-23
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

MACO 478685 is the slider-equipped frame-side day-release component offered for compatible M-TS installations. It is not a standalone conversion that defeats an otherwise normally locking M-TS assembly.

The manufacturer instructions distinguish the frame opener from the lock-side day-release elements and the required lock configuration. The latch arrangement, frame recess and matching components must be checked for the actual profile. In the configured day-release arrangement, motorised operation does not actuate the main latch, so automatic door-opening behaviour also changes.

Use the matching M-TS installation instructions, pages 20-23, to specify and commission the complete arrangement. The stored PVC-U and timber manuals explain those requirements; do not assume that a shared door material or the presence of this slider establishes compatibility.

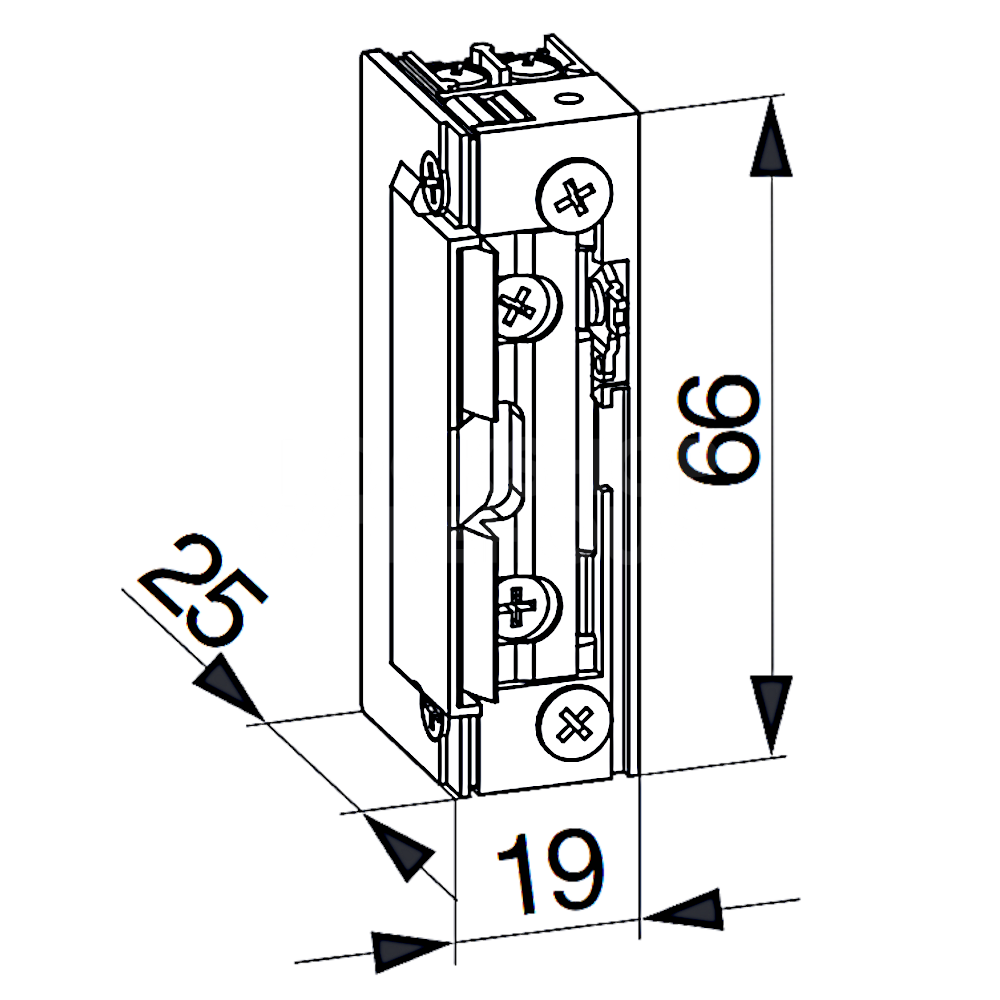

Dimensions Image: Maco M-TS Day Release Passage Function Device
Part Size (mm)
width 19
Height 66
Depth 25
