skip to MACO M-TS UPS Battery Back Up Buffer Module

MACO M-TS UPS Battery Back Up Buffer Module

£293.88

(£244.90 ex VAT)

sku: 480987
  • 24V DC buffer module for MACO M-TS systems
  • Lithium iron phosphate battery; runtime depends on the connected load
  • Works with a suitable mains power supply, not as a replacement for one
  • An additional connected load is required to prevent UPS standby
  • IP40 internal device; a suitable protective housing is required
Document Icon MACO 480987 UPS installation and electrical data
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

CE Marked

MACO 480987 buffers the M-TS system during a power interruption. Its input is 24V DC +/-1V; the output remains a 24V DC supply in buffer operation. It does not accept a 24V AC input.

Backup duration varies with battery condition and current demand. MACO recommends the UPS for short power interruptions and requires suitable backup where a failure could endanger people. The M-TS installation guidance requires an additional connected consumer, such as the Bluetooth module or access control; without this the UPS can enter standby.

The module has IP40 protection and must be installed in an additional housing appropriate to the environment. Installation, charging and load limits are specified in the stored instructions. A UPS is not a guarantee that the door will operate indefinitely during an outage.

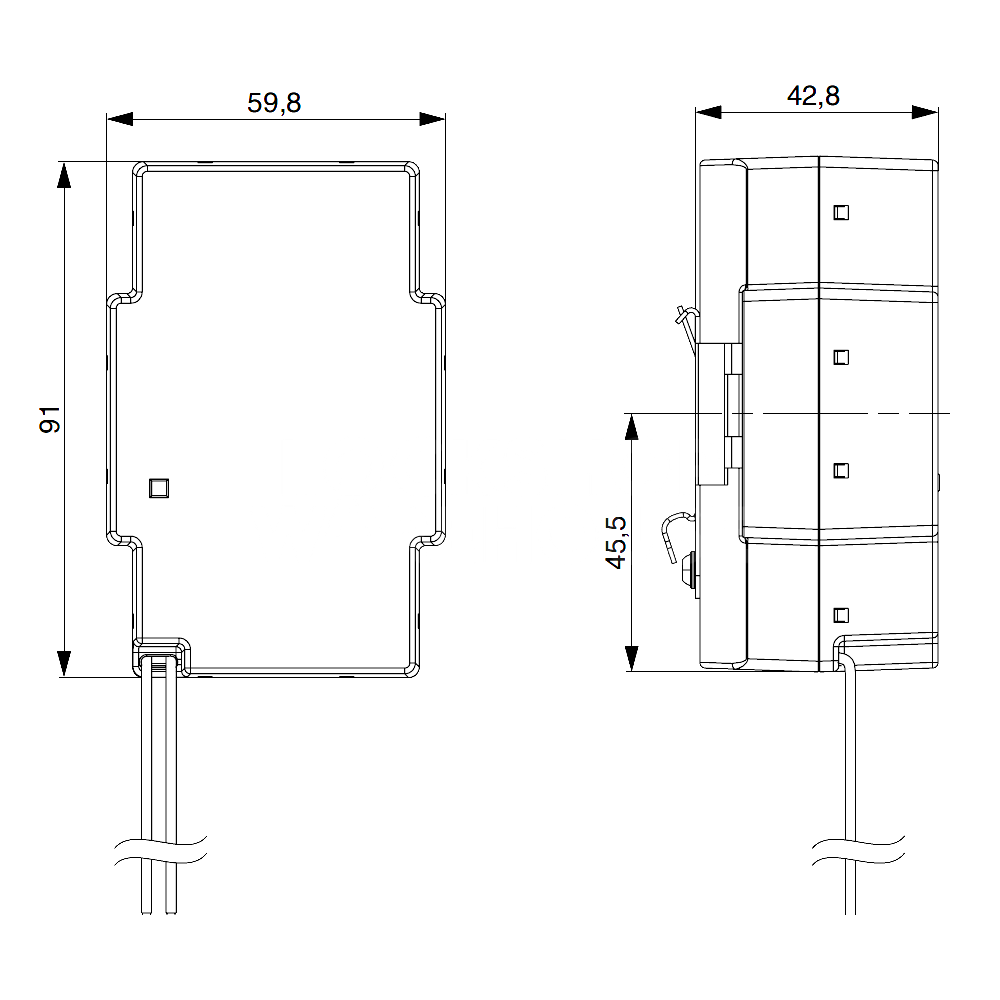

Dimensions Image: MACO M-TS UPS Battery Back Up Buffer Module

Brand

SKU

480987

Power Supply

24V DC input (+/-1V); 24V DC buffered output. Suitable housing and correctly configured additional load required.

Certifications

ce CE Marked
