Maco Lever Operated Latch & Deadbolt 4 Mushroom Multipoint Lock

£57.83

(£48.19 ex VAT)

sku: MACO-0005
  • Lever operated latch and deadbolt mechanism
  • Features four adjustable mushroom cams for enhanced compression
  • Designed for use with Euro profile cylinders
  • Integrated 16mm flat faceplate suitable for various door types
  • Standard 92mm centres for compatibility with common door furniture
  • Single spindle configuration for traditional lever/lever operation

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Maco Lever Operated Latch & Deadbolt is a high-security multipoint locking system engineered for residential entrance doors. It combines a central latch and deadbolt with four mushroom cams distributed along the 16mm faceplate, providing multiple locking points for superior security and weatherproofing.

Function and Operation

This mechanism operates via a single spindle, meaning both the latch and all locking points are engaged and retracted using the lever handle. Once the lever is lifted to engage the mushrooms and deadbolt, a Euro profile cylinder is used to lock the unit in place. The mushroom cams are designed to provide a secure grip on the keeps, ensuring a tight seal between the door and the frame to reduce draughts.

Application and Compatibility

This multipoint lock is suitable for both uPVC and timber door applications. With standard 92mm centres, it is compatible with a wide range of lever/lever door handles and standard Euro profile cylinders. It is frequently specified as a replacement part for existing Maco systems or as a primary locking solution for new installations where high compression and security are required.

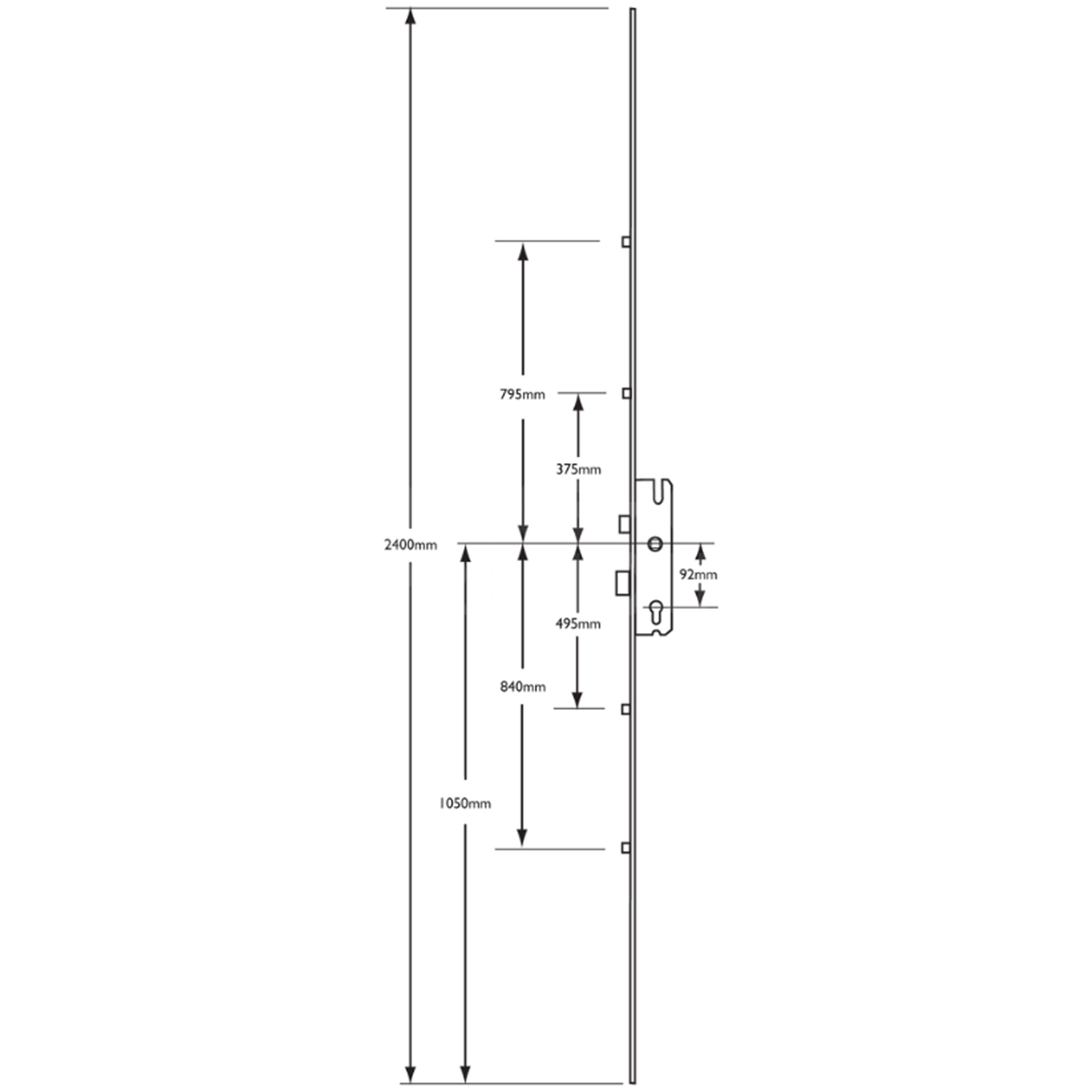

Dimensions Image: Maco Lever Operated Latch & Deadbolt 4 Mushroom Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 28 45
Body Length 2200 -
Case Width 43 60
Case Height 226 -
Locking Point Mushroom 4 -
Faceplate Width 16 -

FAQs

This Maco lock uses a lever-operated mechanism. To engage the four mushroom cams and the central deadbolt, you lift the door handle upwards. Once the locking points are engaged, a Euro profile cylinder is used to lock the entire unit securely in place.

The lock is designed with standard 92mm centres, making it compatible with most common lever/lever door handle sets. It is specifically engineered for use with standard Euro profile cylinders and features a single spindle configuration.

The four adjustable mushroom cams provide multiple points of contact between the door and the frame. Their design ensures a secure grip on the keeps, which significantly enhances security and provides high compression to create a weather-tight seal, reducing draughts.

Yes, this multipoint lock is suitable for both uPVC and timber residential entrance doors. It features a 16mm flat faceplate, which is a standard size that allows for easy integration into various door profiles during new installations or as a replacement part.
