MACO C-TS Lever Operated 2 Hook 2 Bolt Multipoint Lock

£69.23

(£57.69 ex VAT)

sku: MACO-0057
  • High-security multipoint lock system featuring two steel hook bolts and two deadbolts
  • Compatible with timber, uPVC, and aluminium door systems
  • Equipped with a split spindle gearbox for versatile door operation
  • Integrated silent latch mechanism for quiet and smooth closing
  • Tested to PAS24-2012 standards for enhanced burglar resistance
  • Simple reversal process to accommodate both left and right-handed doors
  • Features 92mm centres for compatibility with standard lever handles

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The MACO C-TS Lever Operated Latch & Deadbolt is a high-security multipoint lock system designed to provide robust protection for residential and commercial properties. This configuration features two solid steel deadlocking hook bolts and two bolts, ensuring multiple secure points of contact across the door frame to resist forced entry. It is a versatile solution suitable for use with timber, uPVC, and aluminium doors.

This locking mechanism is equipped with a split spindle function, allowing for flexible operation based on the external handle configuration. A key feature is the silent latch, which allows for quiet and convenient closing without the traditional metallic clatter. The unit has been rigorously tested to PAS24-2012 standards, making it an ideal choice for installations where high-level security is a priority.

Typically used for both new door builds and as a replacement unit for existing MACO systems, the lock features an easy-to-reverse latch to suit various door handings. With a standard 92mm centre, it is compatible with a wide range of Euro profile lock cases and lever handles.

  • Solid steel deadlocking hook bolts for physical security
  • Suitable for residential and commercial applications
  • Reversible latch to suit any door orientation
  • 92mm centres for standard hardware compatibility

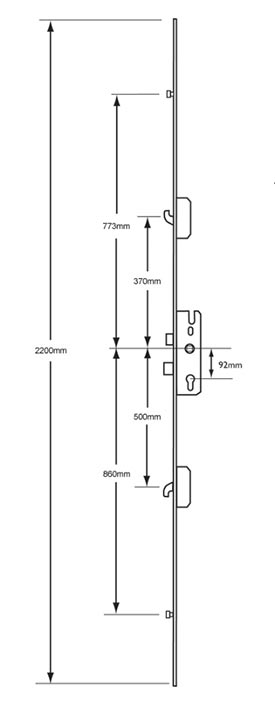

Dimensions Image: MACO C-TS Lever Operated 2 Hook 2 Bolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1750 -
Faceplate Width 20 -

FAQs

The MACO C-TS multipoint lock is a versatile security solution designed for use with timber, uPVC, and aluminium door systems. This makes it an ideal choice for both modern residential properties and commercial applications.

Yes. The unit features a simple reversal process for the latch, allowing it to be easily adjusted to accommodate both left and right-handed door orientations without needing specific handed parts.

This system provides high-level security and has been rigorously tested to PAS24-2012 standards for burglar resistance. It utilizes a combination of two solid steel deadlocking hook bolts and two additional bolts to create multiple secure points of contact across the door frame.

The MACO C-TS lock includes several high-performance features:

  • Silent Latch: Ensures quiet and smooth closing by eliminating the traditional metallic clatter.
  • Split Spindle Gearbox: Allows for versatile door operation, enabling configurations where the door can be locked or restricted from outside access depending on the handle setup.
