skip to Marston 5D Trafalgar

Marston 5D Trafalgar

£68.39

(£56.99 ex VAT)

sku: 289

Deadbolt is locked or unlocked by key from one side only.

Particularly suitable for use on store cupboard doors etc. as it prevents children locking themselves in.

Please Note: The keyhole on this lock is in the horizontal position not vertical as a normal lock.

Mechanism : 5 Lever
Case Finish : Silver
Case Size : 100mm
Keys Supplied : 2
Differs : 800
Handing : Reversible

Document Icon product info
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

5/10 Security Rating
tick Key Profile: Standard

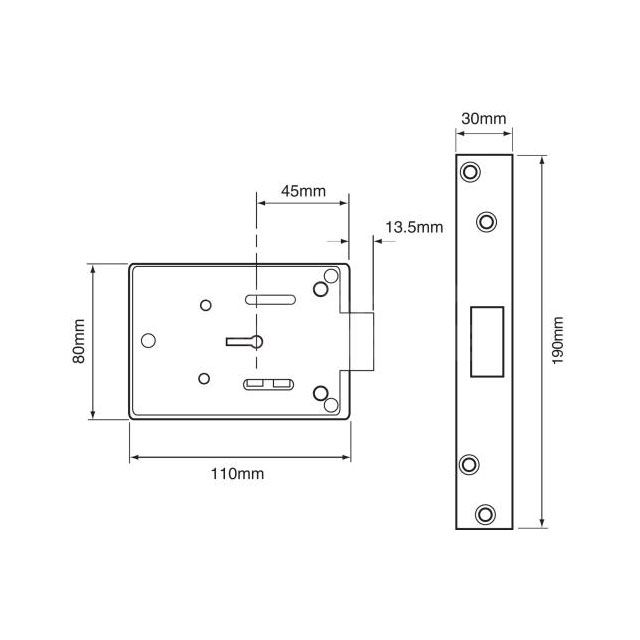

Dimensions Image: Marston 5D Trafalgar
Part Size (mm)
Backset 45
Bolt Length 13.5
Case Width 110
Case Height 80
Strike Plate Width 30
Strike Plate Length 190
Dimensions Image: Marston 5D Trafalgar

Brand

SKU

289

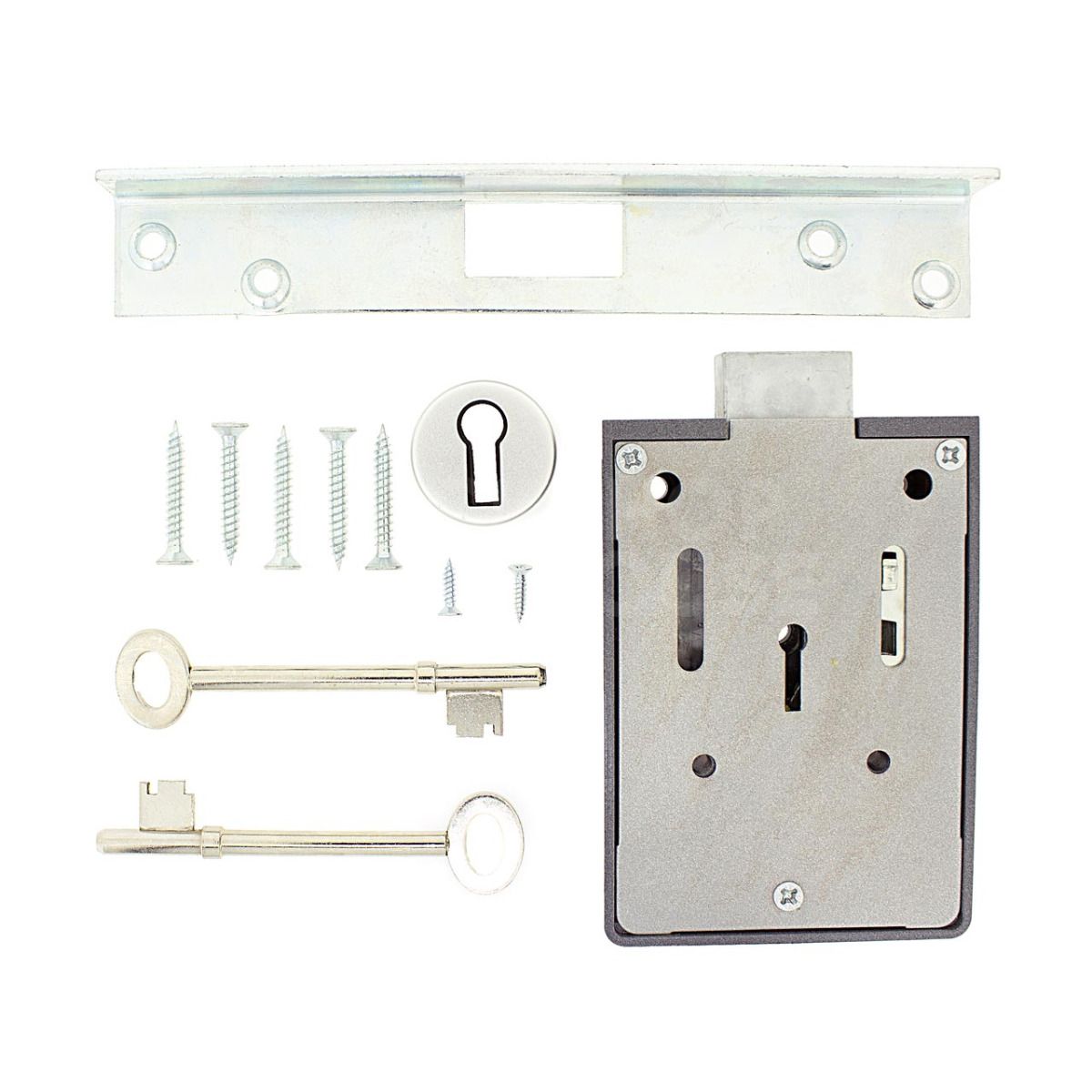

Box Contents

2 keys

strike plate

fixing screws

key escutcheons

rim lock

Key Profile

Key Profile: Standard

FAQs

No unfortunately not, these locks are not as secure as a modern mortice lock as can be smashed off the back of the door so there isn't a high security model available. The best we can offer is a 3 lever. I would only recommend these for internal doors around the house.

Some of the 1 lever locks we offer can be selected on the same key number but this will need to be requested when purchased. It's not always possible but if you ask us we will try our best to accommodate your request.

The Rim locks screw to the inside of the door so therefore normal lever handle / knob handles on roses will not be suitable as you can not get a fixing point on the inside knob as the lock case is in the way. You need to purchase a set of rim knobs which have a standard style handle outside and a knob only on the inside.

A lot of the older models of these Rim locks have been discontinued so we might not be able to supply exact replacements.
