skip to MILA Ideal Flag Hinge 85mm - White

MILA Ideal Flag Hinge 85mm - White

£15.50

(£12.92 ex VAT)

sku: 022100A

Mila Ideal 85mm flag hinge with 3 dimensional adjustment and lift-on, lift-off design. Tested to 50,000 cycles and to exceed BS6375-2 requirements this hinge can be adjusted using a 5mm allen key without removing the door leaf from the frame. It has a steel hinge pin for extra strength, and two hinges will support a maximum sash weight of 80Kg.

3 dimensional adjustment: vertical (+4mm),lateral (+/- 5mm) and fine tuning for compression (+/- 1mm)

Steel hinge pin for enhanced strength

‘Lift-on, lift-off’ design

Tested to exceed BS6375-2 requirements

Maximum sash weight 80kg with 2 hinges

Exceeds 96 hours salt spray corrosion resistance requirements

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

BS EN 6375

Mila Ideal 85mm flag hinge with 3 dimensional adjustment and lift-on, lift-off design. Tested to 50,000 cycles and to exceed BS6375-2 requirements this hinge can be adjusted using a 5mm allen key without removing the door leaf from the frame. It has a steel hinge pin for extra strength, and two hinges will support a maximum sash weight of 80Kg.

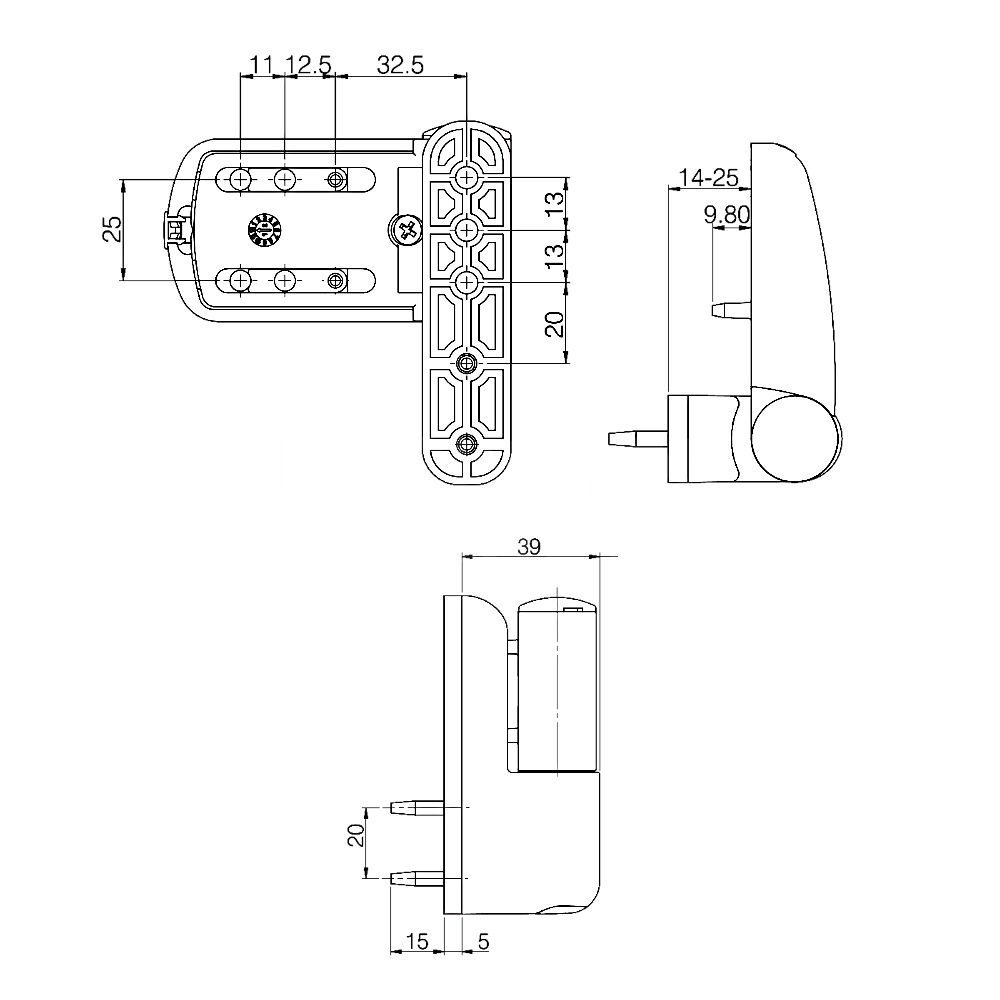

Dimensions Image: MILA Ideal Flag Hinge 85mm - White
Part Size (mm)
Body Length 85

Brand

SKU

022100A

Certifications

tick BS EN 6375
