Mila Lever Operated Latch & Deadbolt Centre Case 35/92

£33.61

(£28.01 ex VAT)

sku: 47200
  • Exact listed reference 47200
  • Single-spindle latch-and-deadbolt centre case
  • Listed 35mm backset and 92mm centres
  • Exact legacy donor, connections and fixings must be matched
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Mila 47200 centre case is a replacement centre component, not a complete multipoint locking strip.

47200 is listed as an old-style Mila centre case. It should not be treated as every older Mila lock, or as a confirmed Master 41006 donor, simply because measurements or branding appear similar.

Match the actual connector and fixing arrangement. A different inline or offset drive connection is a fitting question, not automatic permission to modify the drive slot.

Match the exact original case and lock generation, backset, spindle arrangement, case outline, drive connections and retaining fixings. Matching the brand or a single measurement does not establish a direct replacement.

A centre-case repair can retain the locking strip only when the replacement is an exact match and the strip, remote locking points and frame keeps remain serviceable. Have the fault and the complete assembled lock checked before assuming that the gearbox alone is sufficient.

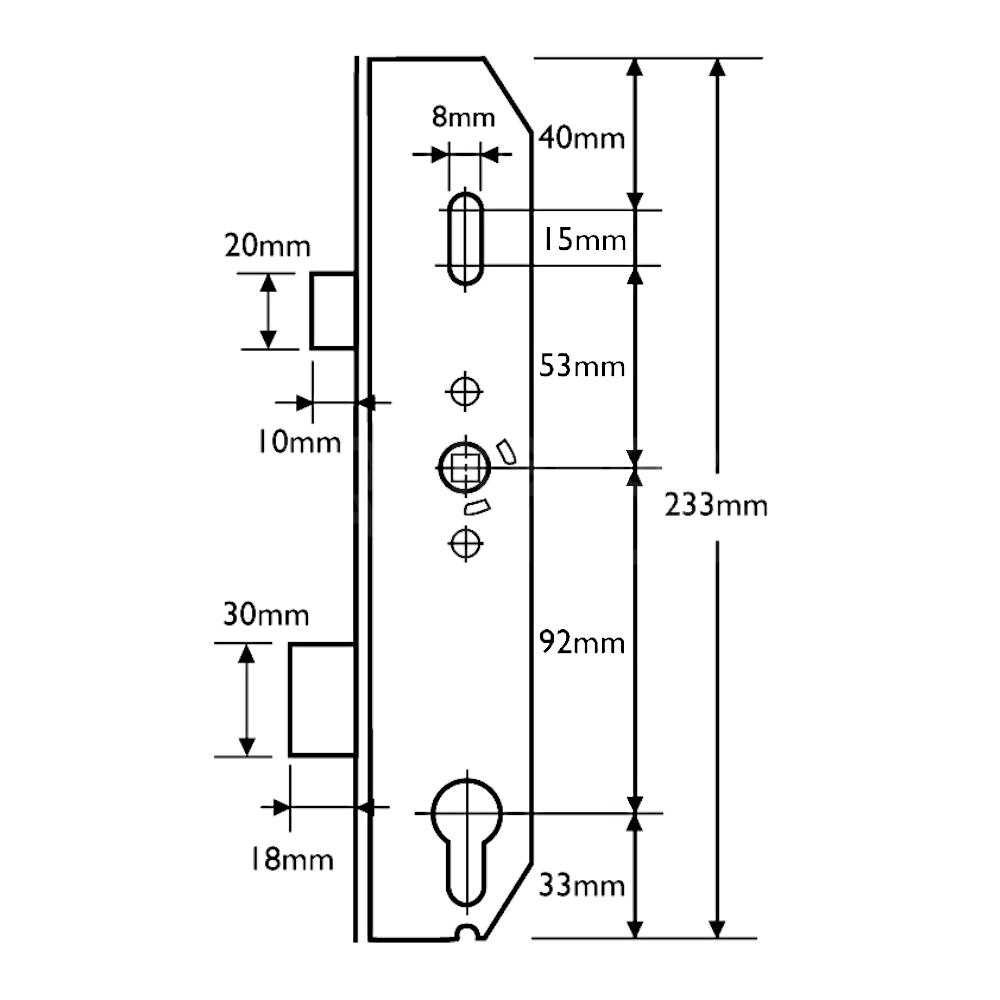

Dimensions Image: Mila Lever Operated Latch & Deadbolt Centre Case 35/92
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 234

FAQs

Match the exact original case and lock generation, backset, spindle arrangement, case outline, drive connections and retaining fixings. Matching the brand or a single measurement does not establish a direct replacement. An offset connector requires a verified replacement procedure, not an assumption that a minor modification makes the case compatible.

Check the handing and latch-reversal instructions for the actual supplied case. Do not use a generic screw-removal procedure or assume that every revision can be reversed in the same way.

A centre-case repair can retain the locking strip only when the replacement is an exact match and the strip, remote locking points and frame keeps remain serviceable. Have the fault and the complete assembled lock checked before assuming that the gearbox alone is sufficient.

Match the original retaining fixings and drive connections to the supplied case and its fitting instructions. Do not assume that any self-tapping screw will suit, or modify a drive slot merely because an older connector looks different. Follow the operating instructions for the exact assembled lock, cylinder and handle arrangement. A gearbox description alone does not establish a universal key-turn count or the action of every remote locking point.
