skip to Mila Master Lever Operated Latch & Deadbolt with Shootbolt Attachments

Mila Master Lever Operated Latch & Deadbolt with Shootbolt Attachments

£66.50

(£55.42 ex VAT)

sku: 41006
  • Centre latch and deadbolt with two rollers and shootbolt provision
  • Match the complete lock and frame-keep layout
  • Check the follower, spindle and furniture arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This Mila Master 41006 single-spindle multipoint lock is supplied as a full lock unit. Confirm the exact shootbolt references, travel, connections and frame keeps. Shootbolt provision does not establish that extensions are supplied or that other Mila bolt products fit.

Before replacement, compare the complete strip, centre case, fixing positions, locking points and handing with the existing installation. Use the operating instructions for the exact supplied version and matched furniture. Matching the brand or nominal backset alone is not enough.

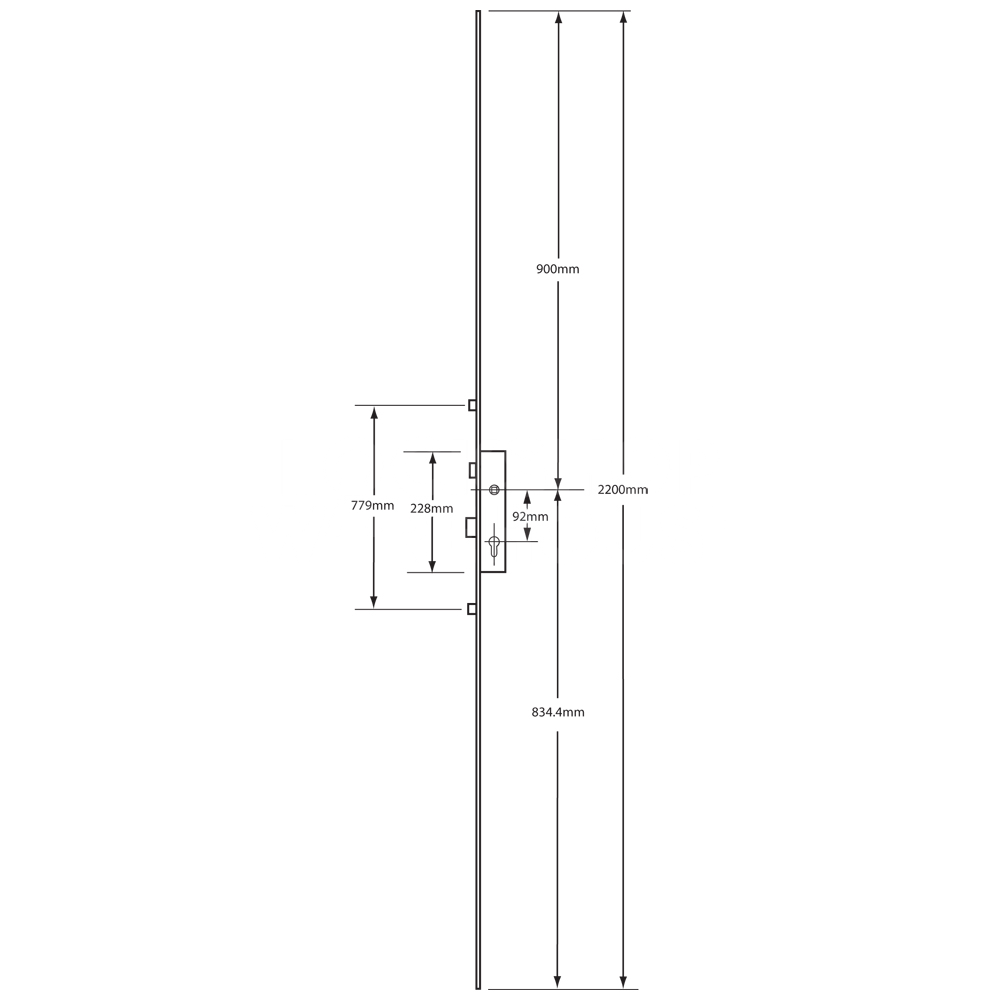

Dimensions Image: Mila Master Lever Operated Latch & Deadbolt with Shootbolt Attachments
Part Size (mm)
centres 92
Backset 35
Case Width 47
Case Height 228
Locking Point Roller 2
Faceplate Width 16

FAQs

The listing describes a single-spindle unit. Match the actual follower position, spindle, handle fixings and return springing; a shared handle-centre measurement does not establish furniture compatibility.

The listed rollers form part of the lock layout. Their presence does not guarantee a draught-free, watertight or thermally improved door. Keep alignment, door condition and seals must be assessed separately; do not use a generic adjustment procedure for an unidentified mechanism.

Shootbolt attachments are listed, but the exact extensions, connections, travel and keeps must be verified for 41006. Do not assume shootbolts are included or that another Mila accessory will fit.

Replacement suitability depends on the complete strip and centre-case layout, fixing positions, locking-point positions, handing and matching keeps. Matching the brand, backset or faceplate width alone is not sufficient.
