Mila Master Twin Spindle 2 Hook 4 Roller Multipoint Lock

£97.37

(£81.14 ex VAT)

sku: 47241
  • Centre latch and deadbolt with two hooks and four rollers
  • Match the complete lock and frame-keep layout
  • Check the follower, spindle and furniture arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This Mila Master 47241 twin-spindle multipoint lock is supplied as a full lock unit. Match the exact Master generation and centre-case connections. Old Mila cases and Lockmaster gearboxes are not interchangeable on brand history or backset alone.

Before replacement, compare the complete strip, centre case, fixing positions, locking points and handing with the existing installation. Use the operating instructions for the exact supplied version and matched furniture. Matching the brand or nominal backset alone is not enough.

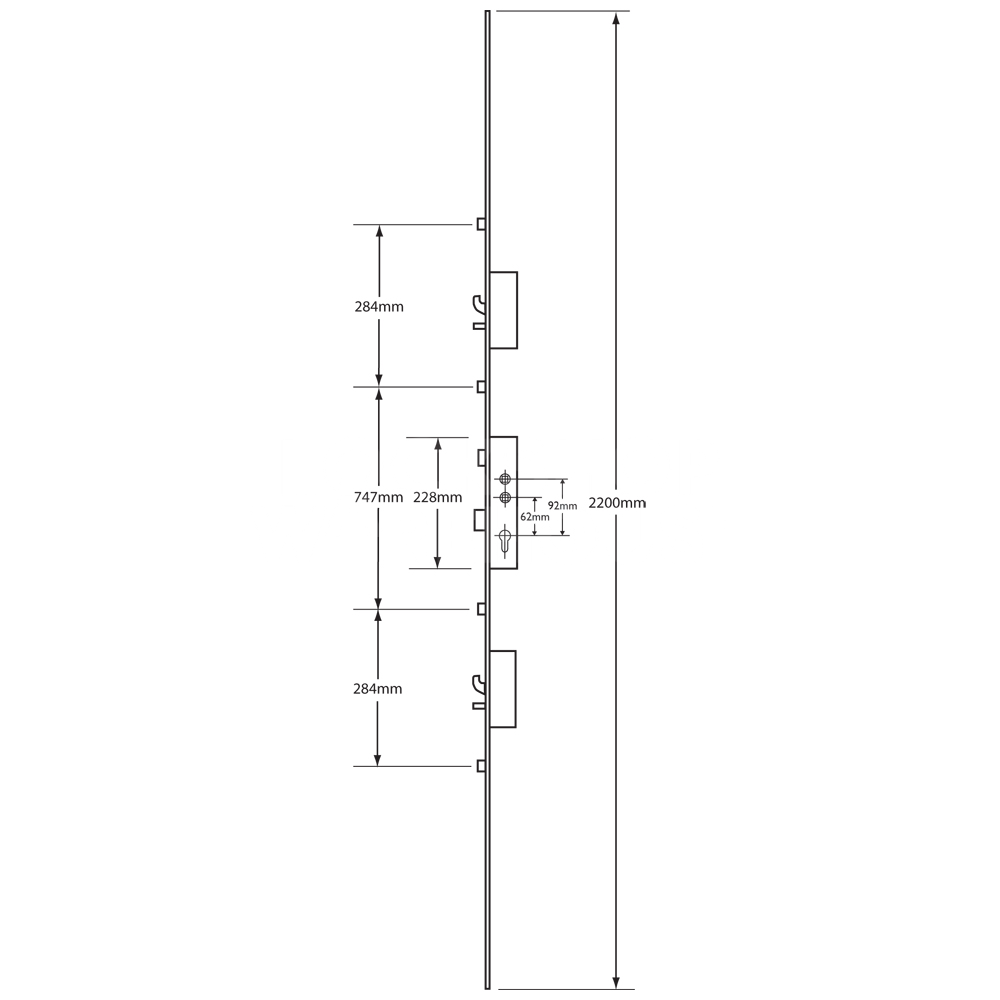

Dimensions Image: Mila Master Twin Spindle 2 Hook 4 Roller Multipoint Lock
Part Size (mm)
Backset 35
Case Width 47
Case Height 228
Locking Point Anti Lift 2
Locking Point Hooks 2
Locking Point Roller 4
Faceplate Width 16

FAQs

The listing describes a twin-spindle unit. Confirm the actual follower positions, spindle arrangement, handle fixings and return springing against the existing mechanism. Twin spindle is not, by itself, proof of split-spindle operation or key-only outside access.

Replacement suitability depends on the complete strip and centre-case layout, fixing positions, locking-point positions, handing and matching keeps. Matching the brand, backset or faceplate width alone is not sufficient.

The supplier listing describes a centre latch and deadbolt with two hooks and four rollers. This is a configuration description, not a verified total security-point rating or a forced-entry guarantee. Compare the complete mechanism and keep layout with the existing installation. The listed rollers form part of the lock layout. Their presence does not guarantee a draught-free, watertight or thermally improved door. Keep alignment, door condition and seals must be assessed separately; do not use a generic adjustment procedure for an unidentified mechanism.

The supplier listing describes a Euro-profile lock case. Cylinder length, cam, furniture clearances and the required operating function must be checked for the exact fitted mechanism; a Euro-profile description is not a universal compatibility guarantee.
