Mila ProLinea 92PZ Lever/Lever Door Handle

£33.14

(£27.62 ex VAT)

sku: MILA-0016
  • Lever on both sides
  • 92mm PZ centres
  • 240mm backplate
  • 211mm fixing-screw centres
  • Integrated spring mechanism
  • White, Gold and Chrome finish options
Document Icon Mila ProLinea 240mm handle fitting drawing (211mm screw centres)

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The ProLinea lever/lever set has a 240mm backplate and 92mm centres. Its integrated spring mechanism assists handle return; it does not repair a worn or unsuitable lock.

The lever/lever arrangement must match the lock's spindle and follower configuration.

Match the 211mm fixing centres, each fixing's position relative to the spindle, cylinder clearance and door thickness. The 240mm plate length is not a fixing or PZ measurement.

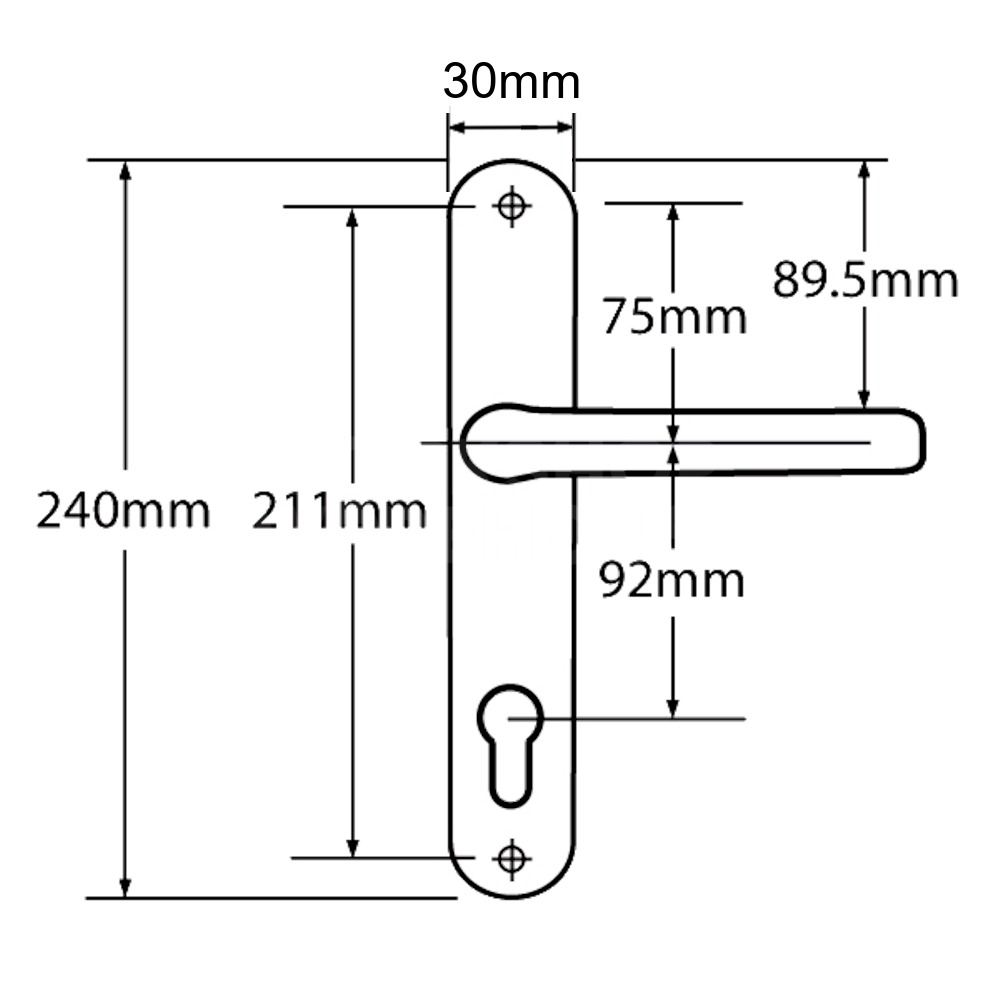

Dimensions Image: Mila ProLinea 92PZ Lever/Lever Door Handle
Part Size (mm)
centres 92
Follower 8
Body Height 240
