Millenco Mantis 2 Lever Operated Twin Spindle Multipoint Lock

£133.12

(£110.93 ex VAT)

sku: 3MML0501
  • Centre latch and hookbolt with two auxiliary hooks, two bolts and two rollers
  • Match the complete lock and frame-keep layout
  • Check the follower, spindle and furniture arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Hookbolt

This Millenco Mantis 2 3MML0501 twin-spindle multipoint lock is supplied as a full lock unit. The supplier specifies separately supplied handles with return springing. Match the roller layout, followers and drive connections rather than substituting a no-roller Mantis 2 or Mantis 3 version.

Before replacement, compare the complete strip, centre case, fixing positions, locking points and handing with the existing installation. Use the operating instructions for the exact supplied version and matched furniture. Matching the brand or nominal backset alone is not enough.

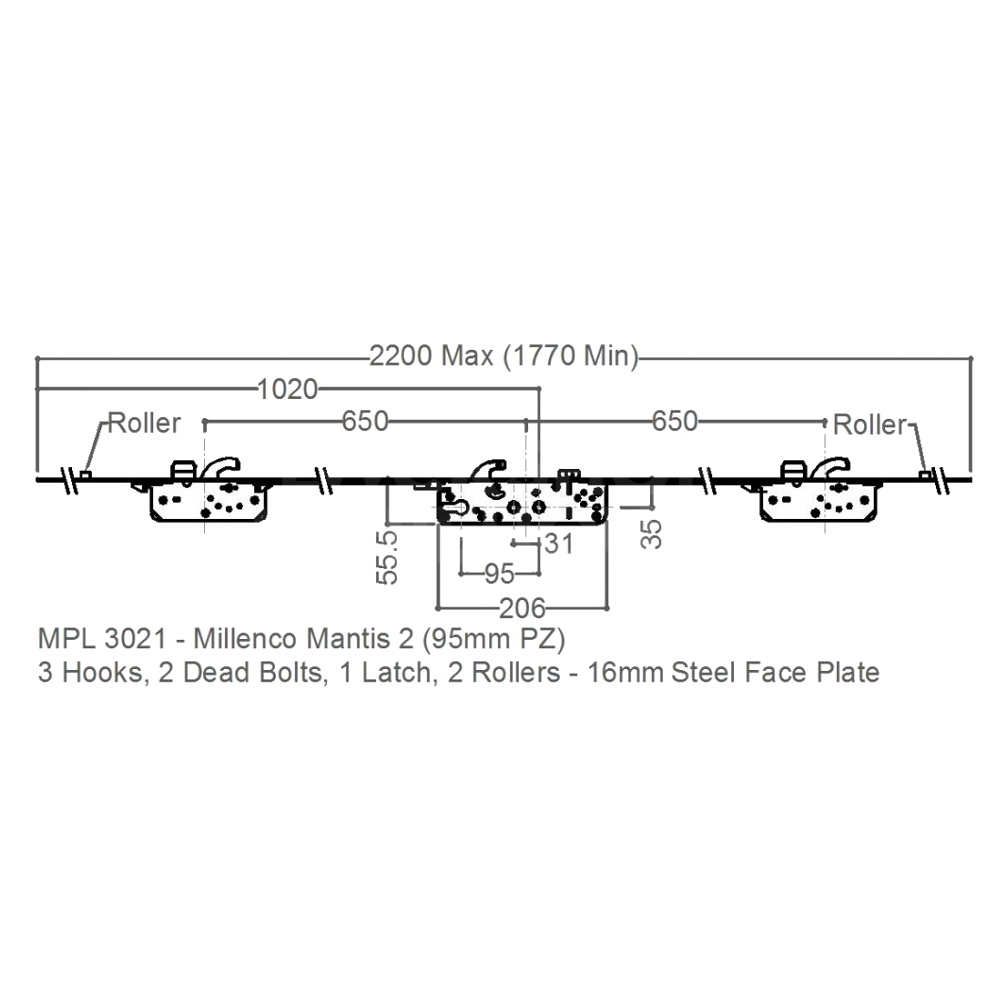

Dimensions Image: Millenco Mantis 2 Lever Operated Twin Spindle Multipoint Lock
Part Size (mm)
Backset 35
Case Width 56
Case Height 206
Locking Point Dead Bolt 2
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

The listing describes a twin-spindle unit. Confirm the actual follower positions, spindle arrangement, handle fixings and return springing against the existing mechanism. Twin spindle is not, by itself, proof of split-spindle operation or key-only outside access.

The supplier listing describes a centre latch and hookbolt, with two auxiliary hooks, two bolts and two rollers. This is a configuration description, not a verified total security-point rating or a forced-entry guarantee. Compare the complete mechanism and keep layout with the existing installation.

Replacement suitability depends on the complete strip and centre-case layout, fixing positions, locking-point positions, handing and matching keeps. Matching the brand, backset or faceplate width alone is not sufficient.

The listed rollers form part of the lock layout. Their presence does not guarantee a draught-free, watertight or thermally improved door. Keep alignment, door condition and seals must be assessed separately; do not use a generic adjustment procedure for an unidentified mechanism.
