Millenco Mantis 2 Twin Spindle Multipoint Lock

£175.00

(£145.83 ex VAT)

sku: 3MML0504
  • Twin spindle gearbox with 95mm and 65mm centres for versatile handle operation
  • Central latch and hookbolt provide robust primary engagement
  • Features two additional hooks and two anti-lift bolts for enhanced security
  • Designed for lift-lever operation with standard Euro profile cylinders
  • Suitable for residential doors requiring a 16mm faceplate configuration
  • Functional replacement for existing Millenco Mantis 2 locking systems
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Hookbolt

The Millenco Mantis 2 is a high-security multipoint locking system designed for residential door applications. It features a technical twin spindle gearbox with 95mm and 65mm centres, allowing for different handle configurations and operation modes.

Security is maintained through a combination of locking points, including a central latch and hookbolt, supplemented by two additional hooks and two anti-lift bolts. This configuration ensures multiple points of engagement into the door frame, providing resistance against forced entry and mechanical lifting. The unit is typically operated by lifting the handle to engage the locking points before securing the system with a turn of a Euro profile cylinder.

Commonly used as a replacement part for damaged or worn mechanisms, this lock is compatible with doors prepared for a 16mm faceplate. It is an essential component for maintaining the security and weather-sealing performance of PVC-U or composite door sets using the Mantis 2 system footprint.

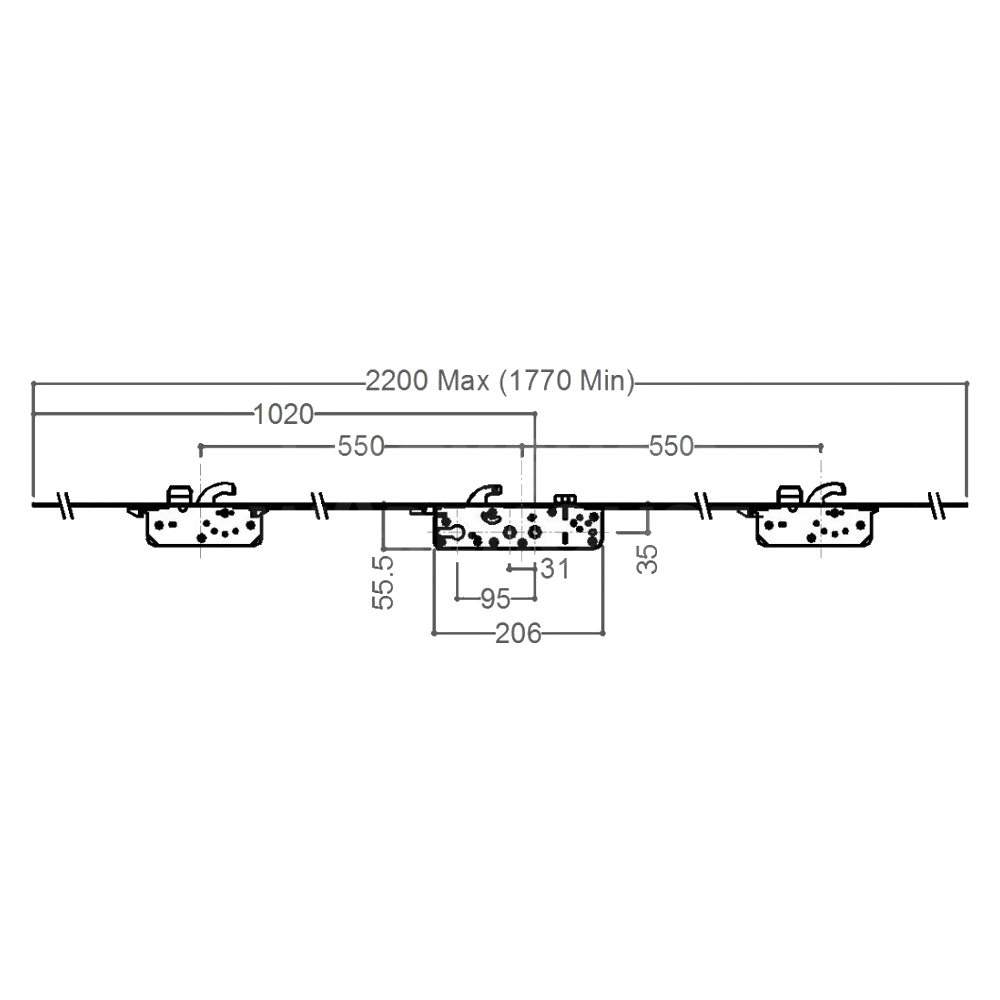

Dimensions Image: Millenco Mantis 2 Twin Spindle Multipoint Lock
Part Size (mm)
Backset 35
Body Length 2200
Case Width 55
Case Height 206
Locking Point Anti Lift 2
Locking Point Hooks 2
Faceplate Width 16

FAQs

The twin spindle gearbox features 95mm and 65mm centres, offering versatility for different handle configurations. This design is ideal for setups where you want to control whether the external handle can operate the latch, providing an extra layer of access control for residential doors.

This mechanism is engineered for high security with multiple points of engagement. It includes:

  • A central latch and hookbolt
  • Two additional security hooks
  • Two anti-lift bolts

These points work together to secure the door firmly into the frame, preventing mechanical lifting and forced entry.

The Millenco Mantis 2 is a common replacement part for doors already fitted with Mantis 2 systems. It is designed for doors requiring a 16mm faceplate. To ensure compatibility, verify that your current handle centres match the 95mm or 65mm spindle positions of this gearbox.

This is a lift-lever lock. To secure the door, pull the handle upwards to engage the hooks and anti-lift bolts into the frame. Once the handle is lifted, turn the key in your Euro profile cylinder to lock the system. To unlock, turn the key and then push the handle down to retract all locking points and the latch.
