Millenco Mantis 3 Multipoint Door Lock Twin Spindle

£85.80

(£71.50 ex VAT)

sku: 3MML0307
  • Twin spindle operation suitable for 92mm/62mm centres
  • Features two secure hooks and two anti-lift deadbolts
  • Equipped with two roller cams for optimal weather compression
  • Durable 16mm stainless steel faceplate for long-term reliability
  • Designed for use with sprung handle sets
  • Compatible with standard euro profile lock cylinders
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Millenco Mantis 3 is a high-security multipoint locking system specifically engineered for PVCu and composite door applications. This mechanism features a twin spindle gearbox, providing versatility in how the door is operated and secured through dual-centre handles.

Security is a primary focus of the Mantis 3, which utilises an array of locking points to prevent unauthorised access. The system includes two hooks and two anti-lift deadbolts, which firmly engage with the door frame to resist forced entry and lifting. Furthermore, two adjustable roller cams are positioned along the faceplate to ensure a tight weather seal, reducing draughts and improving thermal efficiency.

This lock is commonly used as a direct replacement part for existing Millenco systems or integrated into new door fabrications. It features a 16mm stainless steel faceplate and is designed to work in conjunction with euro profile cylinders. The twin spindle design allows for the door to be configured for either lever-lever or lever-pad operation, depending on the handle set selected.

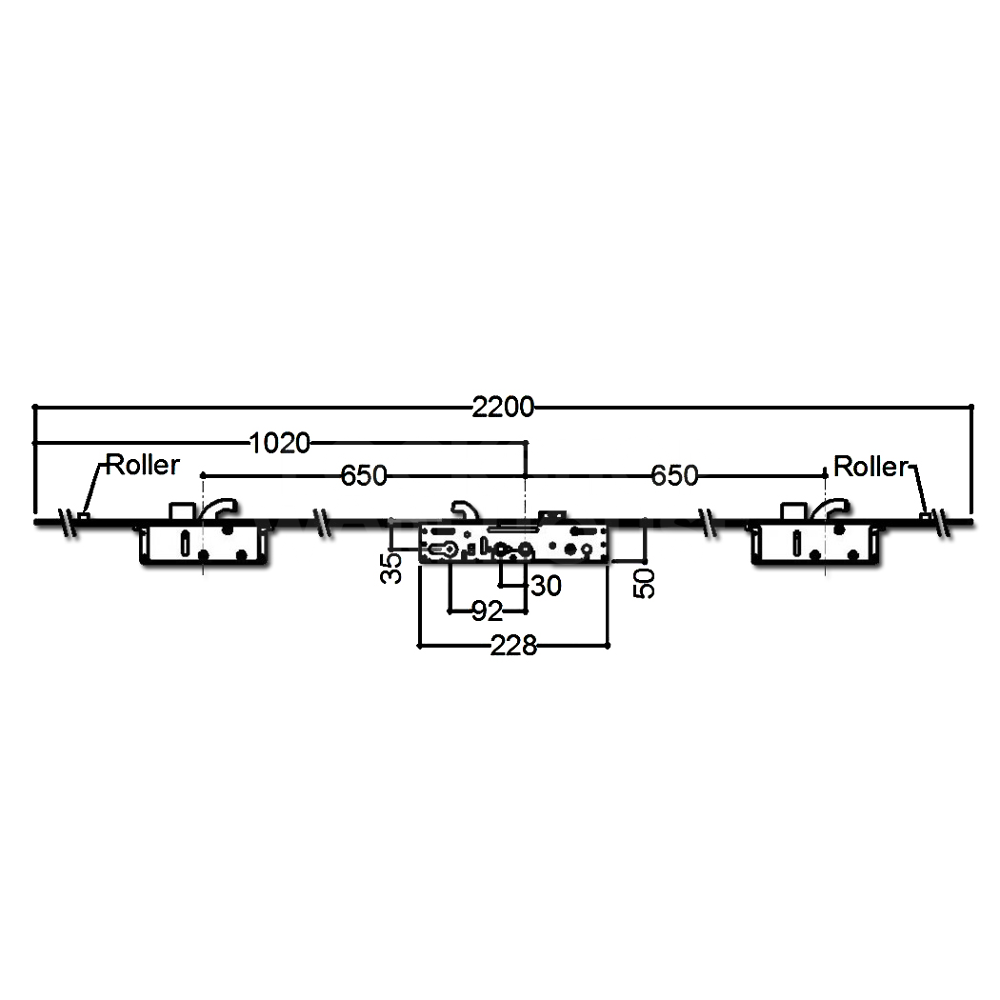

Dimensions Image: Millenco Mantis 3 Multipoint Door Lock Twin Spindle
Part Size (mm)
Backset 35
Body Length 2200
Case Width 50
Case Height 228
Locking Point Dead Bolt 2
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

The twin spindle gearbox features two centres at 92mm and 62mm. This configuration provides flexibility in how your door operates, allowing you to choose between lever-lever or lever-pad handle sets to control external access according to your security needs.

This high-security multipoint lock is designed to resist forced entry through several robust locking points:

  • Two secure hooks that grip the door frame tightly.
  • Two anti-lift deadbolts that prevent the door from being lifted out of place.

The Millenco Mantis 3 is specifically engineered for PVCu and composite doors. It features a standard 16mm stainless steel faceplate and is compatible with standard euro profile cylinders and sprung handle sets, making it an ideal choice for both new installations and direct replacements of older Millenco systems.

Equipped with two adjustable roller cams, the Mantis 3 ensures optimal weather compression. These cams pull the door sash firmly against the frame gaskets when locked, which helps to eliminate draughts and enhance the thermal efficiency of your home.
