Nemef 4923 Excell 2 Hook Keywind Multipoint Lock

£241.02

(£200.85 ex VAT)

sku: 59100977
  • Keywind gear mechanism operated via a Euro profile cylinder
  • Two secure hook locking points for enhanced protection against forced entry
  • Fully reversible latch to suit both left and right-handed door configurations
  • Integrated centre case with combined latch and hookbolt
  • Radius end faceplate for ease of installation in pre-routed door channels
  • Suitable for timber and composite doors with a thickness of 38mm to 40mm
  • Compatible with standard Euro profile cylinders for versatile security options
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Hookbolt

The Nemef 4923 Excell is a high-security multipoint locking system designed for use on external timber and composite doors. Featuring a keywind gear mechanism, the locking points and latch are retracted and engaged via the cylinder rather than a lever handle, making it suitable for doors equipped with pull handles or fixed furniture.

This system provides robust security through a central gearbox containing a reversible latch and hookbolt, complemented by two additional hooks located further along the faceplate. It is engineered for doors up to 2250mm in length and is typically utilised in both new installations and as a direct replacement part for maintenance and repair of existing high-specification door sets.

  • Function: Gear-driven keywind operation for smooth cylinder control.
  • Compatibility: Designed for 72mm centres and accommodates standard Euro profile cylinders.
  • Security: Multiple locking points distribute pressure along the door frame to prevent levering.
  • Installation: The 24mm radius faceplate allows for a clean fit into standard door routings.

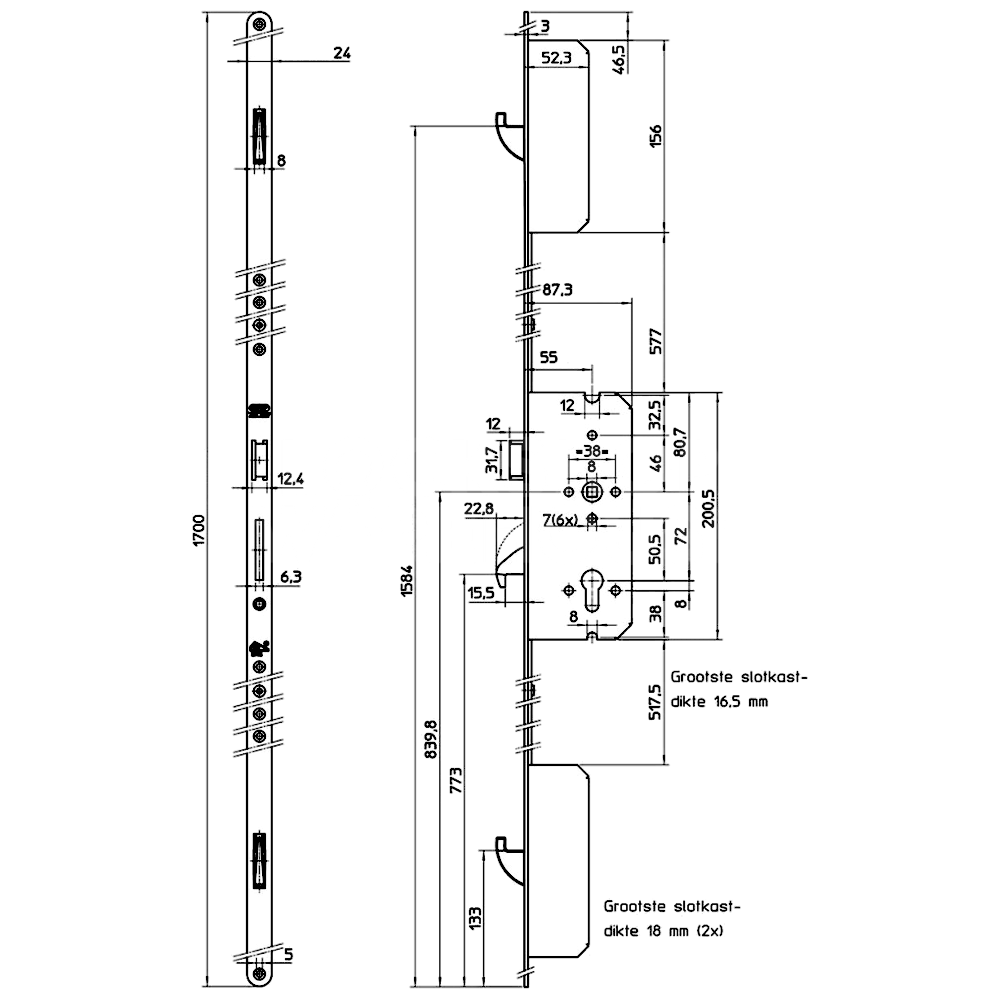

Dimensions Image: Nemef 4923 Excell 2 Hook Keywind Multipoint Lock
Part Size (mm)
centres 72
Backset 55
Body Length 1700
Case Width 87
Case Height 200
Locking Point Hooks 2
Faceplate Width 24

FAQs

Unlike standard multipoint locks that rely on a lever handle to engage the bolts, this keywind system is operated entirely via the Euro profile cylinder. Turning the key retracts and engages the locking points and latch, making it an ideal choice for doors featuring pull handles or fixed furniture.

Yes, the Nemef 4923 Excell features a fully reversible latch. This allows it to be easily adjusted to suit both left and right-handed door configurations during installation.

This multipoint lock is specifically designed for use with timber and composite doors. It is suitable for door thicknesses ranging from 38mm to 40mm and can accommodate door heights up to 2250mm.

The lock is compatible with standard Euro profile cylinders and features 72mm centres. Because it uses a keywind mechanism, it is typically paired with fixed pull handles or knob furniture rather than traditional movable lever handles.
