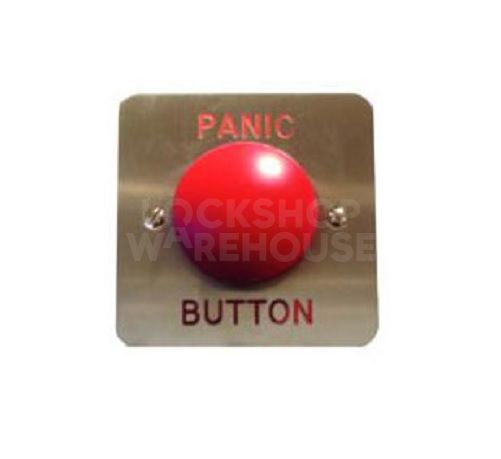

Heavy Duty Maintained Panic Actuator

£78.00

(£65.00 ex VAT)

sku: AS9858

Operating Voltage: 12/24V DC
Contact Rating: 2 Amp
Operation: Push on / Pull Off
Outputs: N/O & N/C contacts


IP Rating: IP67 - Front only
Fitting Style: Flush
Finish: Stainless Steel

For internal and External use
Sealed contacts
N/O and N/C contacts
Flush mounted
Surface box available

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

FAQs

This is a maintained actuator, meaning that once the red button is pressed, it stays in the 'on' position until it is manually pulled back out. This is a standard feature for panic buttons where a continuous signal or alarm is necessary until the situation is resolved and the device is reset.

Yes, this unit is designed for both internal and external use. The front of the button plate is IP67 rated, providing high-level protection against dust and water ingress, making it suitable for exposed environments when correctly installed.

The actuator is designed to work with 12/24V DC systems and features a 2 Amp contact rating. It includes both Normally Open (N/O) and Normally Closed (N/C) sealed contacts, allowing it to be integrated into various security, alarm, and access control setups.

This product is supplied as a flush-mount unit, designed to sit level with the wall surface for a vandal-resistant finish. If flush mounting is not possible for your installation, a separate surface-mount box can be purchased to house the unit on top of the wall surface.
