R W SIMONS Framevent 5000 High Flow + Ventilator 525mm

£12.95

(£10.79 ex VAT)

sku: RWSIM-0003
  • For suitable PVCu or timber window frames.
  • Positive open/close control and snap-on end caps.
  • Can be positioned for upward or downward airflow.
  • Screw centres: 485mm.

Airflow performance depends on the complete ventilator and hood combination and the correct routing. The ventilation requirement for the room and installation must be checked separately.

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

BS EN 13141 - 1:2019

Framevent HF+ equivalent area

Routing configurationEquivalent area (mm2)
Two 230 x 13mm slots with a 10mm land5205
Two 230 x 10mm slots with a 10mm land4623

Manufacturer ventilation testing is stated to BS EN 13141-1:2019. The figures are equivalent area (EA), not slot free area. Follow the full routing and fixing drawing; changing the slot configuration changes performance.

The manufacturer states 400Pa water tightness for the tested configuration. This does not certify the complete window or building installation. No acoustic test classification is claimed here.

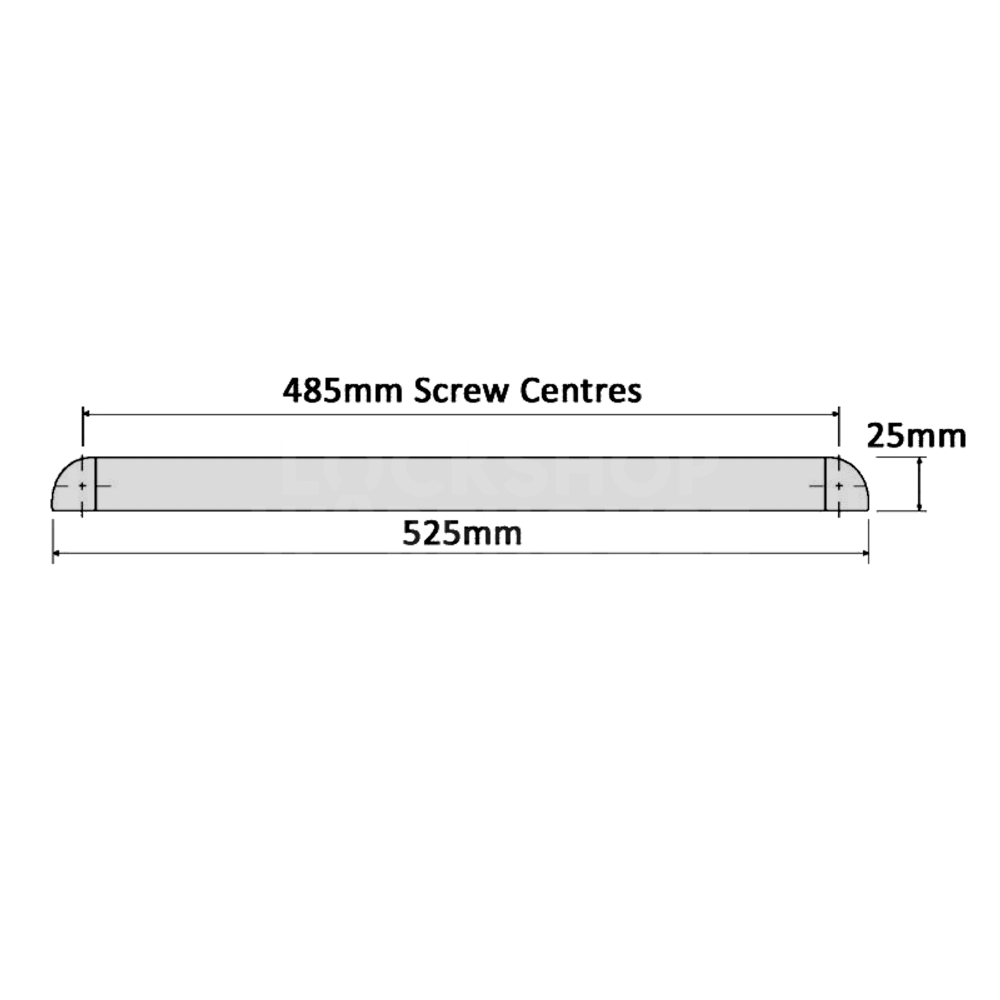

RW Simon High Flow dimensions, routing and performance

Dimensions Image: R W SIMONS Framevent 5000 High Flow + Ventilator 525mm
Part Size (mm)
width 525
Height 25

Brand

SKU

RWSIM-0003

Certifications

tick BS EN 13141 - 1:2019
