Roto H650/H600 Single Spindle Gearbox 92mm Centres

£66.62

(£55.52 ex VAT)

sku: ROTO-0049
  • Compatible with Roto H650 and H600 range of multipoint locks
  • Standard 92mm centres with an 8mm spindle follower
  • Integrated latch and deadbolt for complete security
  • Easily reversible latch for left or right-handed door installations
  • Available in multiple backset sizes from 25mm to 65mm
  • Lever-lift operation for smooth locking engagement
  • Robust 213mm case height construction

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Roto H650/H600 Gearbox Only is a high-quality replacement centre case designed specifically for the H650 and H600 range of multipoint door locks. Featuring standard 92mm centres and a single 8mm spindle follower, this gearbox is ideal for restoring the functionality of your existing locking system without replacing the entire strip.

This unit incorporates a latch and deadbolt mechanism, providing reliable security and smooth operation. The latch is easily reversible; simply insert an Allen key above the latch on the faceplate, push the locking pin upwards, flip the latch, and click it back into position. This makes it compatible with both left and right-handed door configurations.

  • Backset Sizes: Available in 25mm, 28mm, 35mm, 40mm, 45mm, 50mm, 55mm, and 65mm options.
  • Case Dimensions: 213mm height; the case depth is calculated by adding 15mm to the chosen backset.
  • Operation: Lift the lever to engage locking mechanisms and turn the cylinder once to lock.
  • Construction: Engineered for durability and long-term performance in residential or commercial settings.

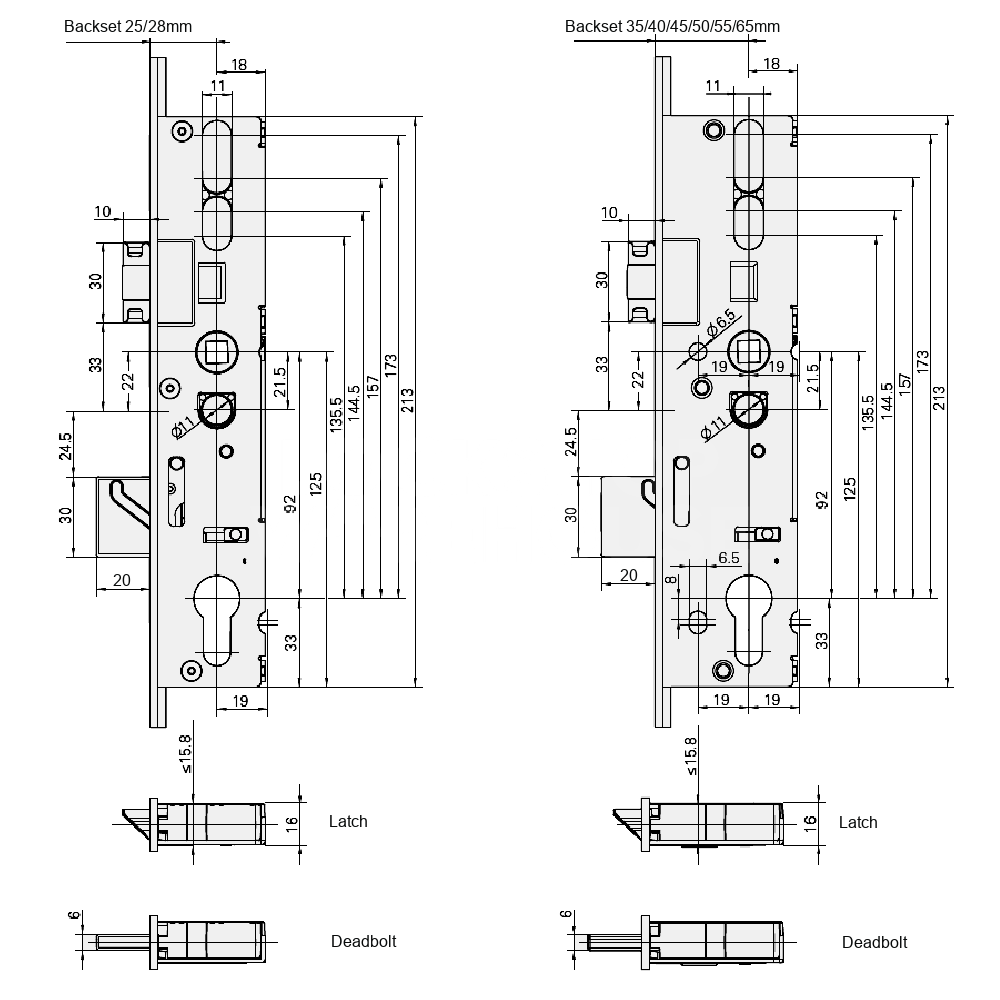

Dimensions Image: Roto H650/H600 Single Spindle Gearbox 92mm Centres
Part Min (mm) Max (mm)
centres 92 -
Backset 25 65
Case Width 43 83
Case Height 213 -

FAQs

This replacement gearbox is specifically designed for the Roto H650 and H600 range of multipoint locks. To ensure compatibility, you should confirm your existing lock has 92mm centres and measure your backset to select the correct size from the available options (25mm to 65mm).

The latch mechanism is easily reversible. To change the orientation, insert an Allen key into the opening above the latch on the faceplate, push the internal locking pin upwards to release the latch, flip it over, and then click it back into position.

No, this is a gearbox-only replacement. It is designed to replace just the central case mechanism, allowing you to fix a faulty lock without the expense or effort of replacing the entire full-length metal strip.

Before purchasing, please verify the following dimensions to ensure a correct fit:

  • Centres: Should be 92mm from the middle of the handle spindle to the middle of the keyhole.
  • Backset: Measure the distance from the front of the faceplate to the centre of the handle spindle.
  • Case Height: This unit has a standard height of 213mm.
