Safeware 8 Lever Operated Multipoint Lock Twin Spindle

£89.64

(£74.70 ex VAT)

sku: 9770B
  • Centre latch and hookbolt with two auxiliary hooks and two bolts
  • Match the complete lock and frame-keep layout
  • Check the follower, spindle and furniture arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Hookbolt

This Safeware 8 9770B twin-spindle multipoint lock is supplied as a full lock unit. Match the exact Safeware 8 generation, case connections and keeps. Safeware 8+ hardware or a successor gearbox is not a direct substitute on the range name alone.

Before replacement, compare the complete strip, centre case, fixing positions, locking points and handing with the existing installation. Use the operating instructions for the exact supplied version and matched furniture. Matching the brand or nominal backset alone is not enough.

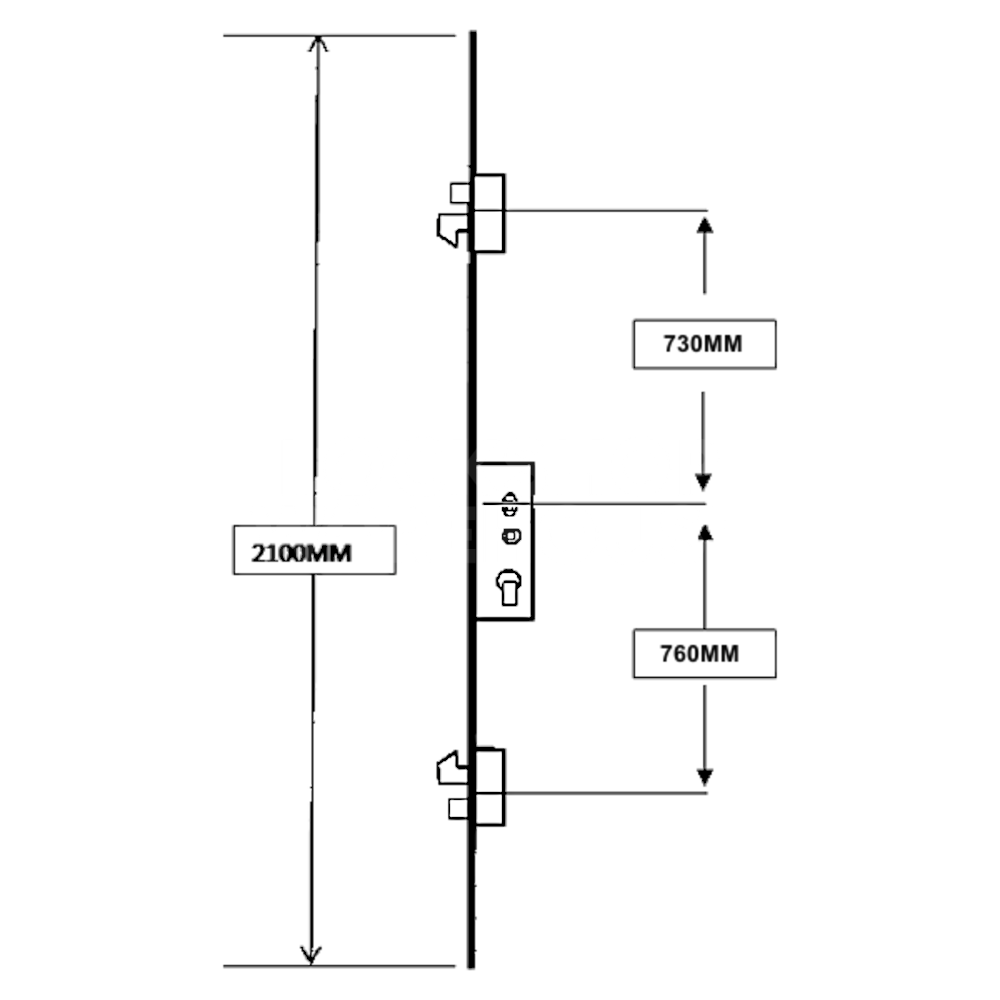

Dimensions Image: Safeware 8 Lever Operated Multipoint Lock Twin Spindle
Part Size (mm)
Backset 35
Case Width 47
Case Height 254
Locking Point Dead Bolt 2
Locking Point Hooks 2
Faceplate Width 16

FAQs

The supplier lists reversible handing. Confirm the actual case and the manufacturer's reversal instructions before alteration; this is not confirmation that any keep, opening direction or latch-conversion method is interchangeable.

The listing describes a twin-spindle unit. Confirm the actual follower positions, spindle arrangement, handle fixings and return springing against the existing mechanism. Twin spindle is not, by itself, proof of split-spindle operation or key-only outside access.

The supplier listing describes a centre latch and hookbolt with two auxiliary hooks and two bolts; the auxiliary count is not the complete lock's total. This is a configuration description, not a verified total security-point rating or a forced-entry guarantee. Compare the complete mechanism and keep layout with the existing installation.

The listing describes a lever-operated unit, but the exact operating sequence and handle arrangement must be confirmed for the fitted generation. Do not rely on a generic key-turn count or assume the outside handle retracts the latch.
