Safeware Lever Operated Multipoint Lock 2 Hook 4 Roller

£60.76

(£50.63 ex VAT)

sku: 7250B
  • Full multipoint lock unit featuring two security hooks and four roller cams.
  • Twin spindle mechanism allows for dual handle operation and enhanced versatility.
  • Lever-operated latch and hookbolt for intuitive locking and unlocking.
  • Four rollers help to ensure a consistent weather seal across the height of the door.
  • Compatible with Euro profile cylinders for standard security setups.
  • Designed for installation into doors with a 16mm faceplate groove.
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Hookbolt

The Safeware Lever Operated Multipoint Lock is a robust locking system engineered for residential doors. It features a central gearbox with a latch and hookbolt, complemented by an additional two hooks and four rollers distributed along the faceplate. This configuration provides multiple locking points, significantly enhancing the security of the door against physical attack.

Equipped with a twin spindle, this lock offers versatile functionality for different handle arrangements. The four roller cams are designed to pull the door tightly into the frame when the lever is lifted, improving the weather seal and reducing draughts. The two secondary hooks provide additional deadlocking strength to prevent the door from being forced open.

This multipoint lock is a common choice for both replacement projects and new door builds. It is designed for use with Euro profile cylinders and fits standard door preparations requiring a 16mm faceplate. The unit is operated by lifting the handle to engage all locking points and then turning the key to secure the system.

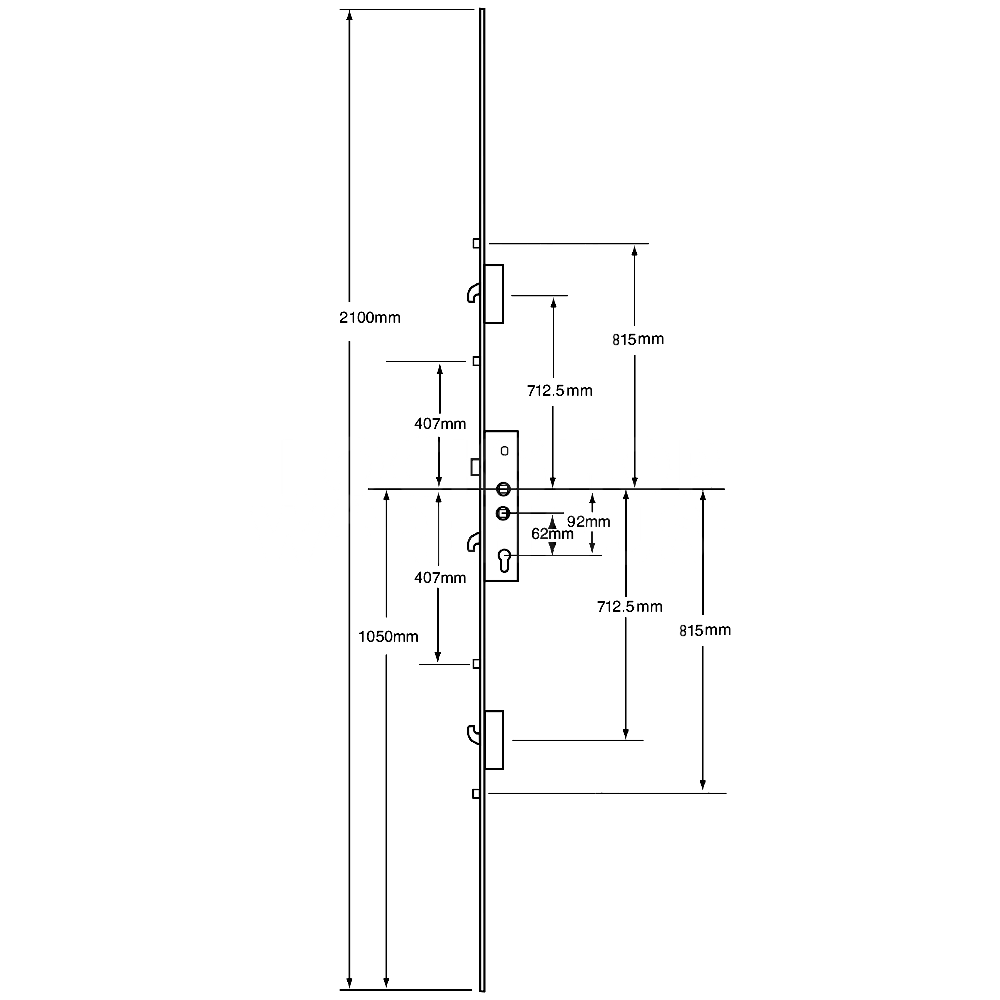

Part Size (mm)
Backset 35
Case Width 50
Case Height 253
Locking Point Hooks 2
Locking Point Roller 4
Faceplate Width 16
