skip to Schuco 92PZ U-Rail Lever Operated Latch & Deadbolt Lock Case

Schuco 92PZ U-Rail Lever Operated Latch & Deadbolt Lock Case

£112.87

(£94.06 ex VAT)

sku: 279496
  • Features a 35mm backset and standard 92mm centres
  • Equipped with a robust 10mm single spindle
  • Reversible latch design allows for easy on-site handing adjustment
  • 24mm U-rail faceplate with a durable polished nickel finish
  • Designed for seamless integration with Schuco door furniture
  • Provides reliable security with integrated latch and single-throw deadbolt
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The SCHUCO Lever Operated Latch & Deadbolt 92PZ U-Rail Lock Case is a premium security solution designed specifically for Schuco profile doors. This lock case features a 35mm backset and 92mm centres, making it a standard choice for high-performance door systems. The 24mm wide U-rail faceplate is finished in polished nickel, ensuring long-term durability and a sleek aesthetic.

Engineered for versatility, the latch is fully reversible. By simply unscrewing the cover plate and removing the internal Y-shaped component, the latch can be flipped to accommodate either left or right-handed door openings. The lock is designed for use with a 10mm spindle and is compatible with bolt-through door furniture fixings.

Key Specifications and Operation:

  • Locking Action: Standard sashlock functionality; the cylinder operates the deadbolt, while the handle controls the latchbolt.
  • Case Dimensions: Compact 181mm case height with a 49mm case depth for easy installation.
  • Compatibility: Optimized for Schuco systems requiring a U-rail configuration.
  • Construction: High-grade materials for smooth operation and reliable locking performance.

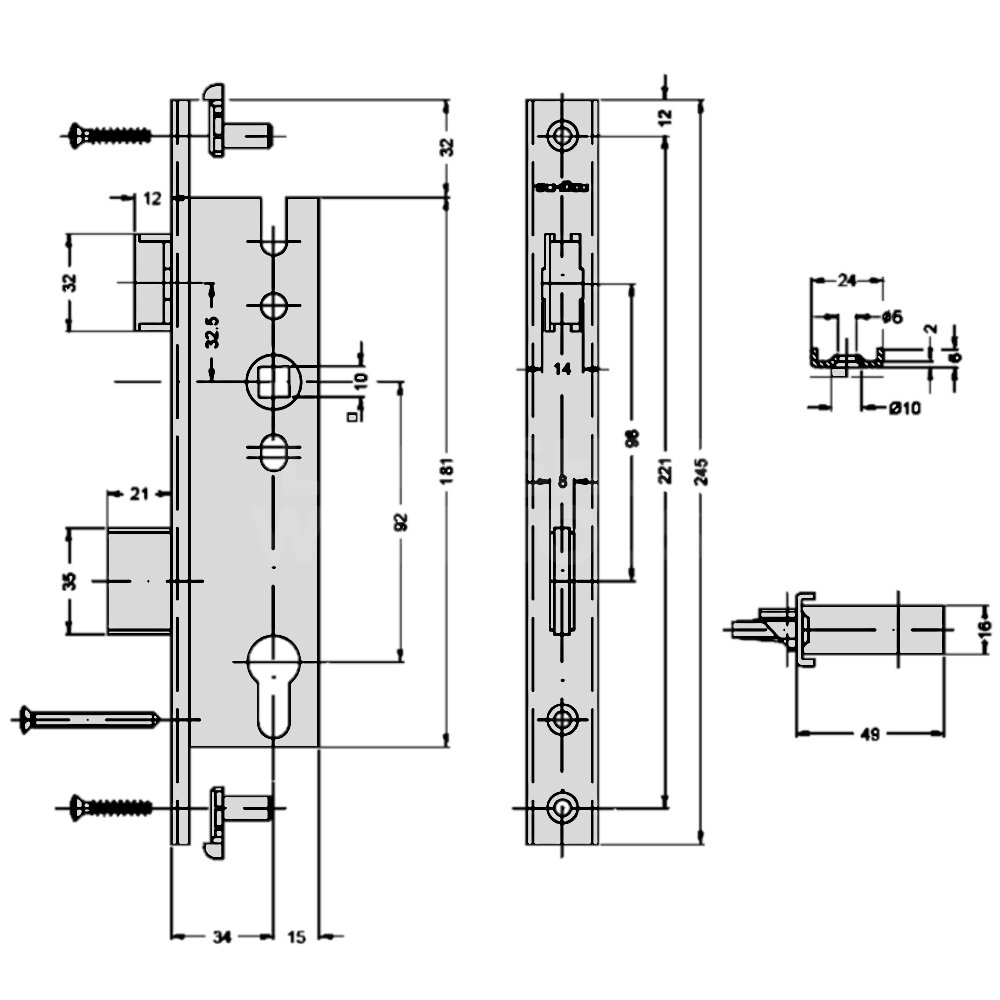

Dimensions Image: Schuco 92PZ U-Rail Lever Operated Latch & Deadbolt Lock Case
Part Size (mm)
centres 92
Backset 35
Case Height 181
Case Depth 49
Faceplate Width 24

FAQs

Yes, the Schuco 92PZ lock case features a fully reversible latch design. You can easily adjust the handing on-site by unscrewing the cover plate and removing the internal Y-shaped component to flip the latch, making it compatible with both left and right-handed door openings.

To ensure this part fits your door, you should verify the following measurements:

  • 35mm backset
  • 92mm centres (PZ)
  • 24mm wide U-rail faceplate
  • 181mm case height and 49mm case depth

This lock is engineered to work with a robust 10mm single spindle. It is also designed to be compatible with bolt-through door furniture fixings, specifically for seamless integration within Schuco profile door systems.

The unit operates with standard sashlock functionality. Your door handle controls the spring-loaded latch for everyday access, while the key cylinder operates the integrated single-throw deadbolt to provide secure locking.
