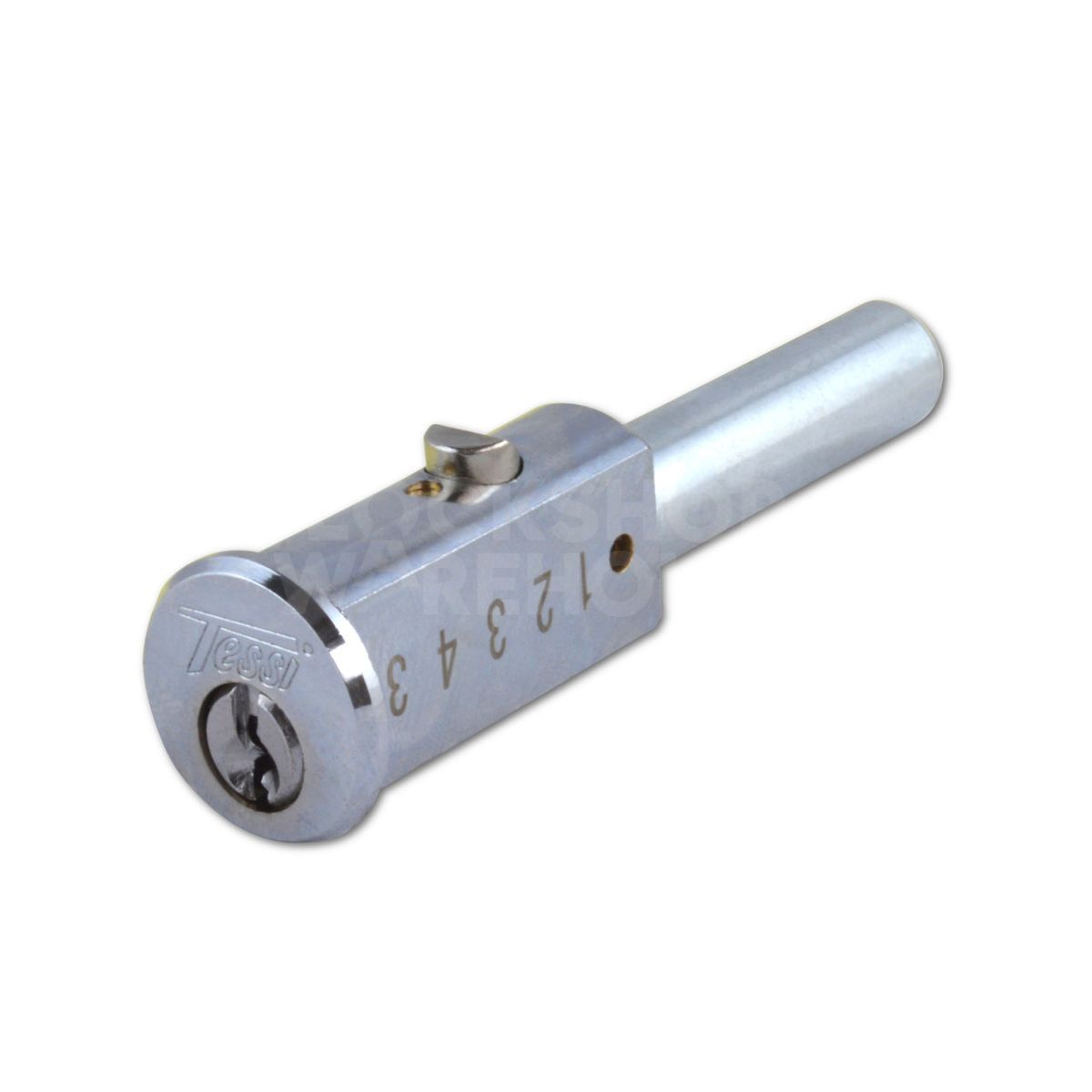

Tessi H75 Round Snap In Bullet Lock

£17.99

(£14.99 ex VAT)

sku: TH75
  • Push-to-lock action for quick and efficient security engagement
  • Sprung locking pin prevents the bullet from being withdrawn without a key
  • Key-operated release mechanism facilitates easy removal from the housing
  • Designed specifically for securing roller shutters and industrial doors
  • Standard round head design for compatibility with existing shutter housings
  • Suitable for both replacement of worn units and new installations
  • Available with keyed alike options for managing multiple locks with one key

Key Number

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Tessi H75 Round Snap In Bullet Lock is a specialized security component designed for the protection of roller shutters and industrial doors. It provides a robust physical barrier, typically used in commercial environments such as retail shops and warehouses. The lock functions via a straightforward push-to-lock mechanism, which enables the user to secure the shutter quickly without needing to use a key during engagement.

To unlock the device, a turn of the key depresses a sprung locking pin located on the top of the cylinder barrel. This allows the bullet to be fully withdrawn from its housing, permitting the shutter to be raised. This design is highly effective for secondary security, ensuring that shutters remain firmly locked in the closed position.

This product is an ideal choice for maintenance and upgrades, acting as a direct replacement for standard round-headed bullet locks. Because it is available with keyed alike functionality, it is particularly suitable for premises with multiple shutters, allowing for streamlined access control across the entire site. The technical design focuses on durability and reliable operation within heavy-duty shutter guide systems.

FAQs

The Tessi H75 uses a simple 'push-in' to lock action. To unlock and remove the bullet from its housing, insert and turn the key to depress the sprung locking pin on top of the cylinder barrel, allowing it to be withdrawn.

This bullet lock features the following dimensions to help ensure a correct fit:

  • Cylinder Diameter: 25mm
  • Pin Length: 50mm
  • Overall Length: 96mm

Yes, these locks are available keyed alike from stock. This is a convenient option if you need to secure several shutters or doors and prefer to manage them with a single key.

Each Tessi H75 Round Snap In Bullet Lock is supplied with 2 keys as standard. These are finished in a durable nickel plating to match the lock cylinder.
