TROJAN 3D Composite Door 0705 Butt Hinge

£16.75

(£13.96 ex VAT)

sku: TROJA-0019
  • Rebated door butt hinge designed for composite doors
  • Provides 3D adjustment with up to 4mm vertical, 3mm lateral, and 1.75mm compression adjustment
  • Supplied pre-assembled
  • Supports door leaf weights up to 100kg when 3 hinges are fitted
  • Accommodates maximum door sizes of 1000mm wide by 2200mm high with 3 hinges fitted

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

BS EN 1670:2007

Trojan's 2012 literature for the 0705-2000 describes testing to 100,000 operating cycles and corrosion testing to BS EN 1670.

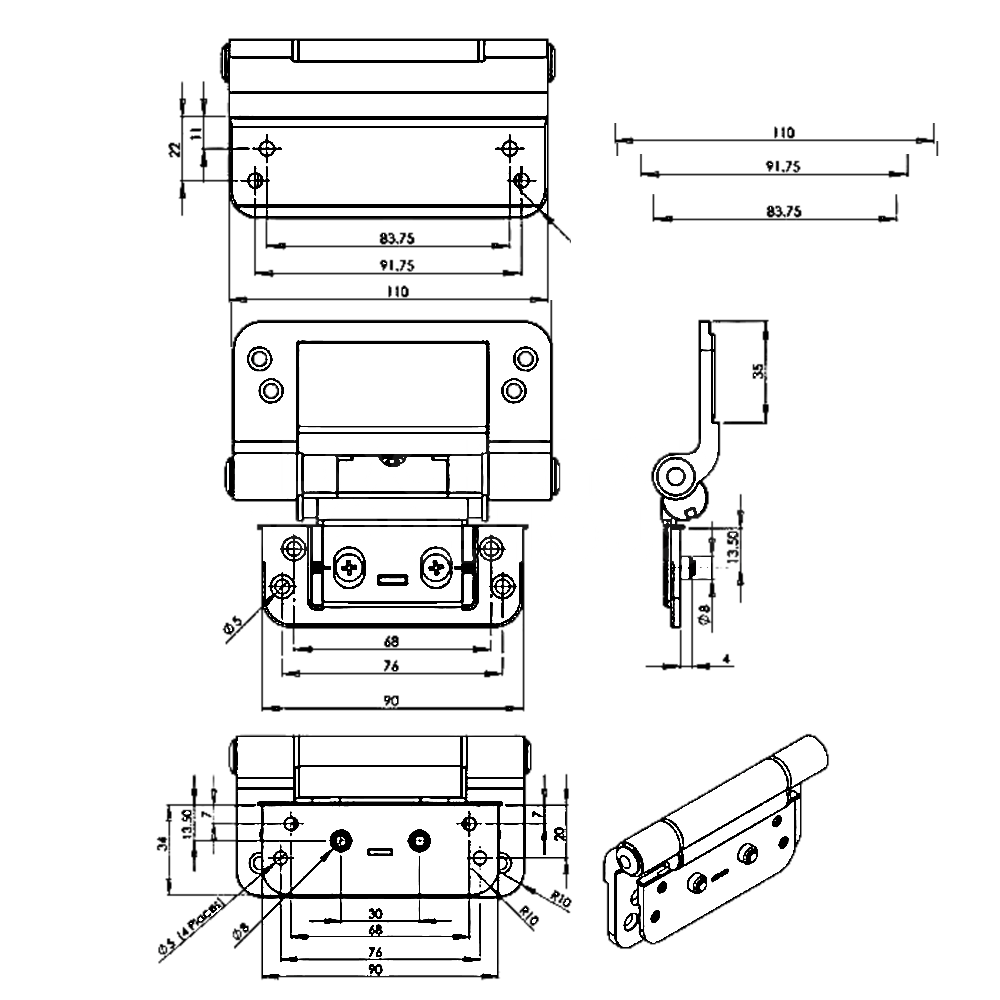

Dimensions Image: TROJAN 3D Composite Door 0705 Butt Hinge

Brand

SKU

TROJA-0019

Certifications

tick BS EN 1670:2007
