UCEM Lever Operated Multipoint Lock with 2 Deadbolts

£117.00

(£97.50 ex VAT)

sku: 2510
  • Features a Euro profile centre lock case for standard cylinder compatibility
  • Equipped with two additional deadbolts for enhanced security across the door height
  • Lever-operated mechanism with a single spindle for straightforward handle operation
  • Designed for use with a 20mm U-rail faceplate for specific profile installations
  • Supplied with three additional 24mm plates to ensure versatile fitting options
  • Allows latch bolt withdrawal via the key for convenient access
  • Full-turn key operation secures the deadbolts into the locking position
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The UCEM Lever Operated Multipoint Lock is a comprehensive security unit designed for doors requiring a robust latch and deadbolt configuration. This system features a central Euro profile lock case integrated with two additional deadbolts positioned along the door length, providing multiple points of resistance against forced entry.

This lock is typically used as a replacement part for existing UCEM systems or as a high-security upgrade for new door installations. It operates using a single spindle, where the lever handle is used to retract the latch and the key is used to engage the deadbolts. For ease of use, the unit is locked with a single full turn of the key and unlocked by reversing the turn and depressing the lever handle. Additionally, the latch bolt can be withdrawn by the key, providing flexible entry options.

Technical features include:

  • A 20mm U-rail faceplate as standard
  • Compatibility with Euro profile cylinders
  • Single spindle operation
  • Included 24mm additional plates for broader profile compatibility

The unit is engineered for long-term reliability in domestic or commercial environments, ensuring smooth mechanical operation and consistent door alignment.

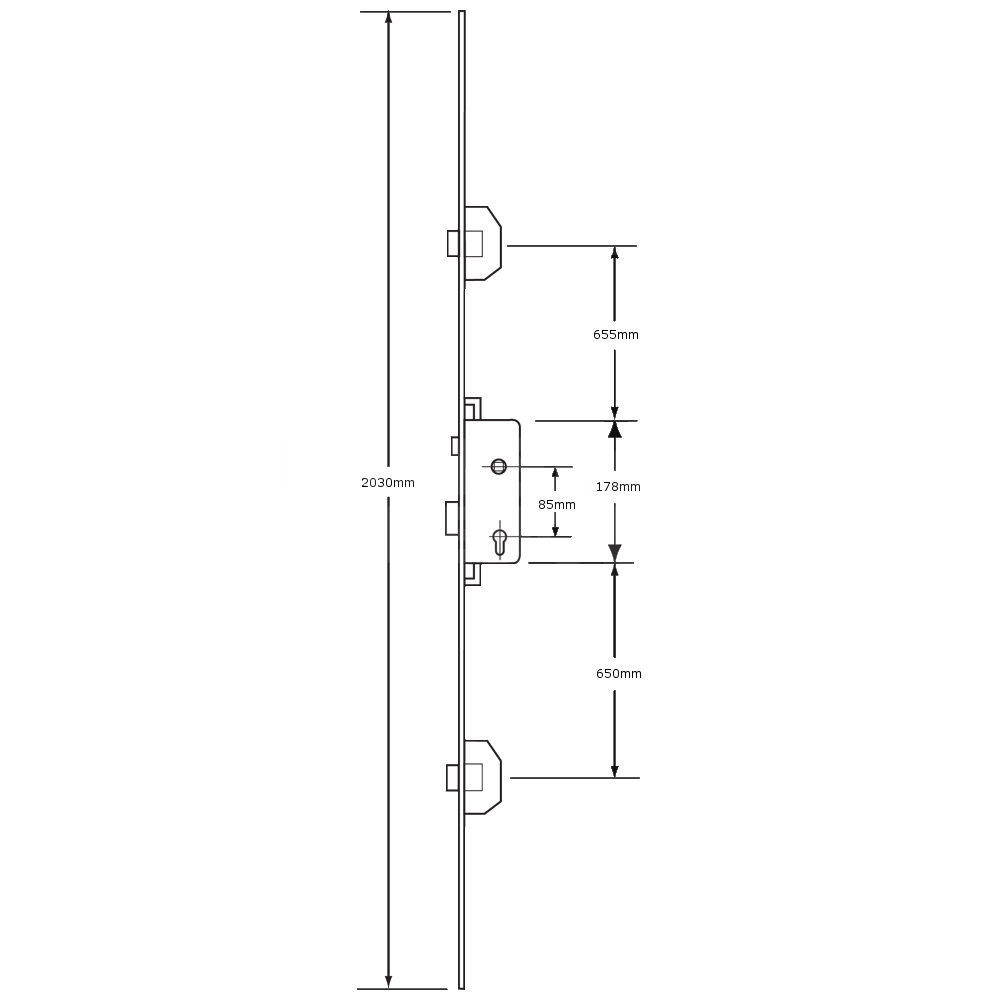

Dimensions Image: UCEM Lever Operated Multipoint Lock with 2 Deadbolts
Part Size (mm)
centres 85
Backset 50
Case Width 80
Case Height 178
Locking Point Dead Bolt 2
Faceplate Width 20

FAQs

This multipoint lock features a central lock case plus two additional deadbolts positioned along the height of the door. This configuration provides multiple points of resistance, significantly enhancing door security against forced entry.

The lock is designed with a Euro profile centre case, making it fully compatible with standard Euro profile cylinders. This allows you to choose a cylinder that meets your specific security and keying requirements.

Yes, this lock mechanism allows the latch bolt to be withdrawn by the key. This provides a convenient entry option and allows for flexible access without necessarily needing to depress the lever handle first.

The unit is designed for versatile fitting across different profiles. It comes standard with a 20mm U-rail faceplate and includes three additional 24mm plates to ensure compatibility with a wider range of door installations and replacement scenarios.
