Union 1022 Traditional Security Rim Lock 60mm

£54.00

(£45.00 ex VAT)

sku: UN1022
  • Suitable for timber doors between 35mm and 60mm thick
  • Universal handing allows for use on both left and right-hinged inward opening doors
  • Key-operated entry from the outside and lever handle operation from the inside
  • Integrated thumb button provides a deadlocking function or a bolt hold-back facility
  • Designed for surface-mounted installation on the internal door face
  • Standard 5-pin cylinder mechanism provides reliable everyday security
Document Icon product info Document Icon product info

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

4/10 Security Rating

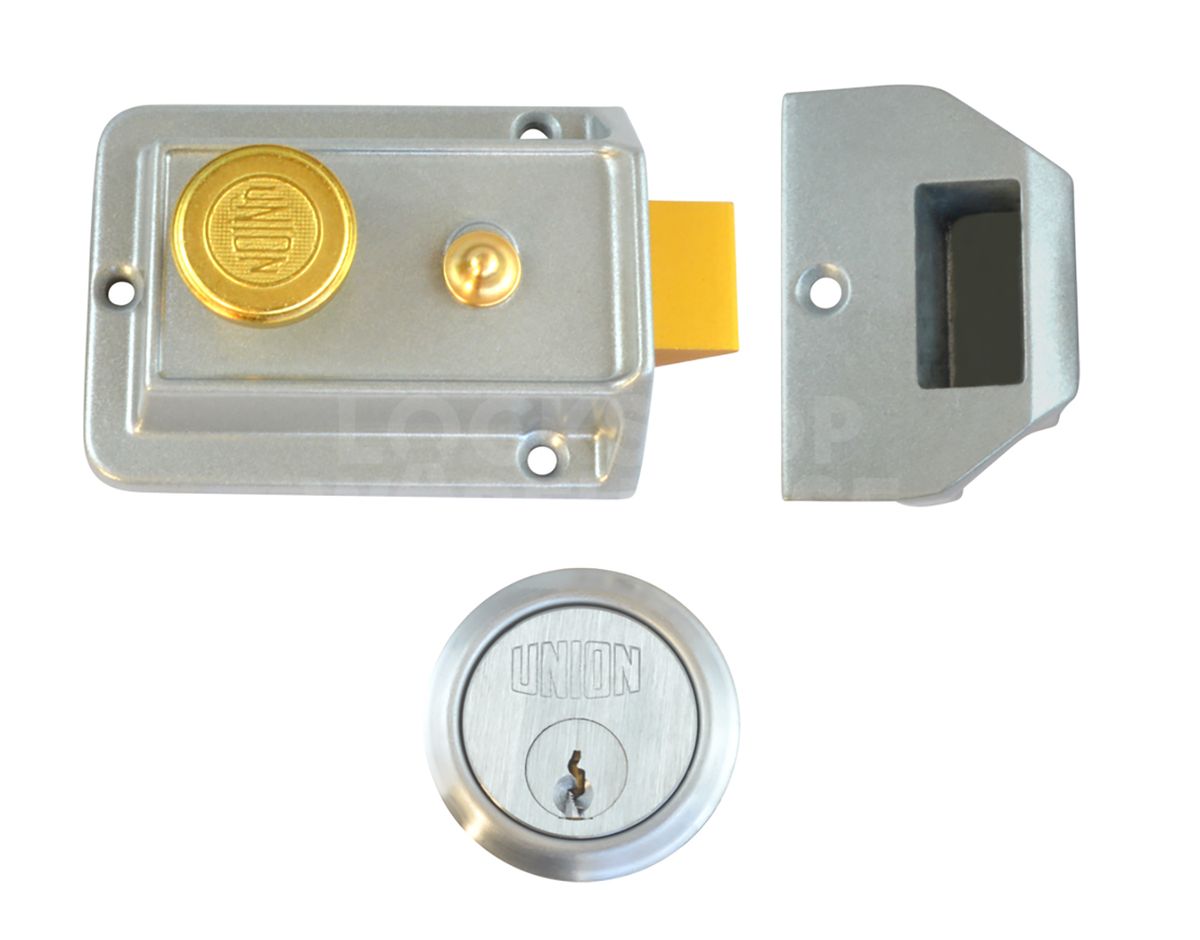

The Union 1022 is a traditional surface-mounted rim night latch designed for timber doors. It provides reliable security for residential properties and is typically used on front or back doors as a primary or secondary locking point.

The unit is compatible with inward-opening doors and features a non-handed design, making it suitable for both left and right-hinged configurations. It is engineered to fit door thicknesses ranging from 35mm to 60mm. Operationally, the latch bolt is retracted from the outside using a rim cylinder key and from the inside via the lever handle.

A key feature of this model is the internal thumb button, or snib. This allows the user to either deadlock the bolt in the closed position for added security while the property is occupied, or hold the bolt in the retracted position to prevent the door from locking when closed. This lock is an ideal choice for new installations or as a replacement for existing rim latches with a 60mm backset.

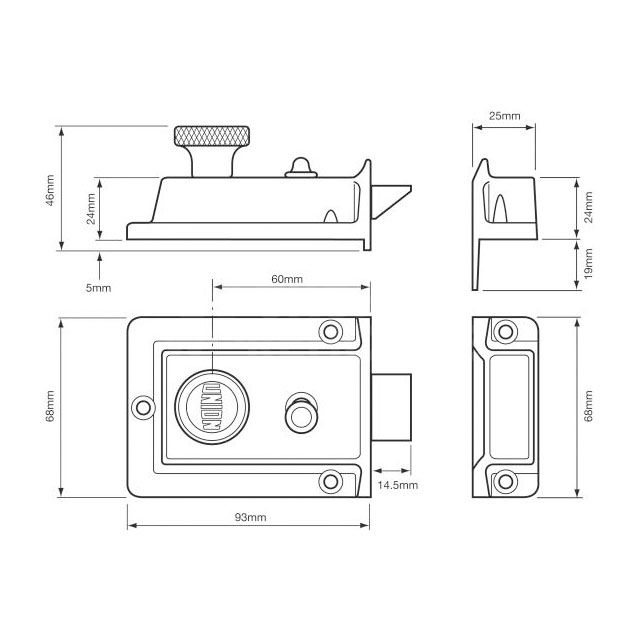

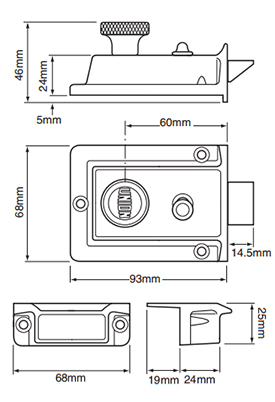

Dimensions Image: Union 1022 Traditional Security Rim Lock 60mm

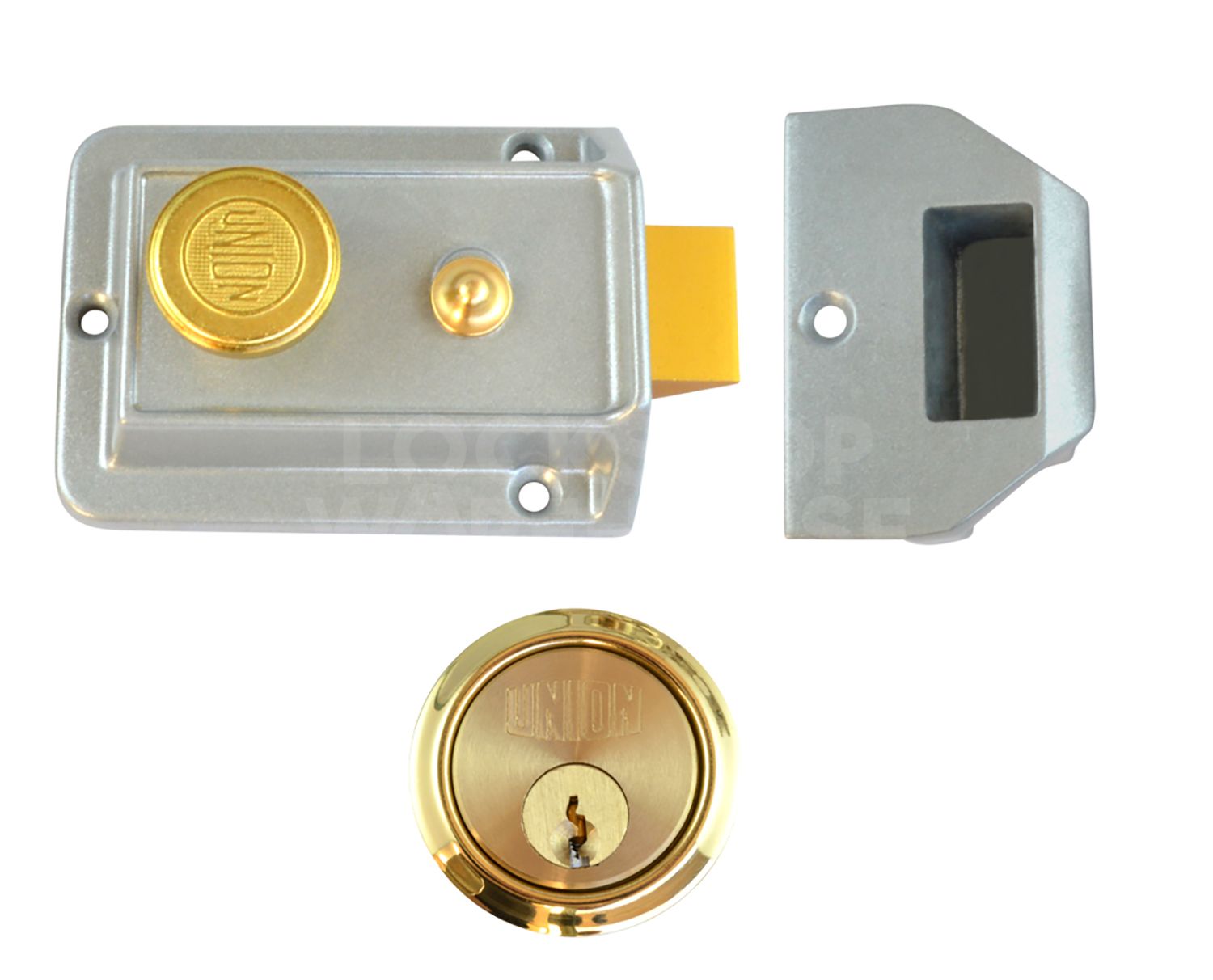

Dimensions Image: Union 1022 Traditional Security Rim Lock 60mm

Brand

SKU

UN1022

Box Contents

2 keys

strike plate

rim cylinder

nightlatch

FAQs

No unfortunately not, the BS3621 nightlatches can not be reversed. The only way to do this is to install a standard nightlatch from our outward opening nightlatch section and then also install a BS3621 deadlock. This deadlock will give you the insurance rating required.

You need to make sure the lock you fit is NON deadlocking. This means that you can not lock people into the property. There are a few nightlatches designed for these doors. The best is the Yale PBS3 or PBS4 or a more standard model would be the Yale 88 or 84.

The best locks for these would be the a rollerbolt style lock with a masterkeyed cylinder. I would not recommend installing a standard Nightlatch on these doors as the tenants can lock themselves out if they close the door behind them. We can supply these locks for you on a masterkey if you require or keyed differ if you would prefer.

The backset on these locks is the distance from the edge of the door to the center of the Rim Cylinder. This is the large 32mm hole drilled through the door. There are 2 main sizes of these, 60mm or 40mm. Easiest way to find out what you have is to measure from outside of the door from the edge to the center of the keyhole. If you have a solid door you should use the 60mm backset locks, if you have a glass panelled door then you may need to use the 40mm backset. If your current lock is 50mm backset you will need to see our Union locks as only Union made a 50mm backset lock in the past.

There are different levels of security you can have with all locks. The standard locks (i.e. Yale 77, Yale 88) , then the mid level locks which can be key deadlocked from outside ( Yale 89, Union nightlatches). The double locking versions are only suitable for homes with other means of exit as you can lock people inside the house if not careful.

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

The Union 1022 rim lock is designed for use on timber doors with a thickness ranging between 35mm and 60mm.

Yes, this lock is suitable for doors hinged on either the left or the right, provided that the door opens inward.

The thumb button, also known as a snib, allows you to either hold the bolt in the withdrawn position to stop the door from locking or to deadlock the bolt for added security.

From the exterior, the latch is withdrawn using a key. From the interior, the bolt is retracted by turning the integrated handle.
