Union 1139 Rim Deadlock

£71.99

(£59.99 ex VAT)

sku: UN-1139
  • Key-operated deadbolt provides security from both sides of the door
  • Surface-mounted rim design for installation on timber doors
  • Reliable 3-lever internal mechanism for standard security
  • Supplied with two keys as standard
  • Suitable for use on secondary entrance doors and outbuildings
  • Handed design ensures a precise fit for specific door orientations
Document Icon product info

Size

Handing

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

5/10 Security Rating
tick Key Profile: Standard

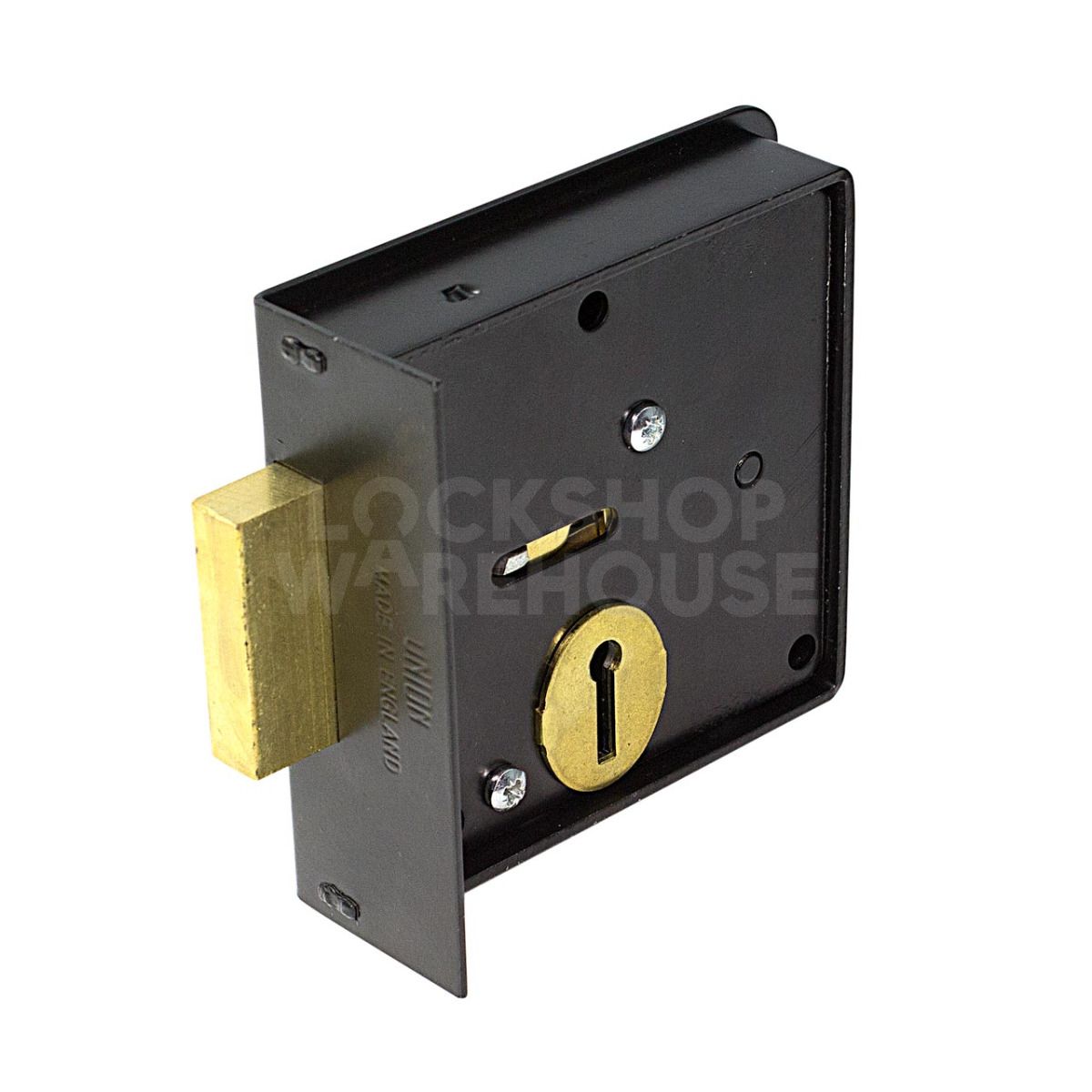

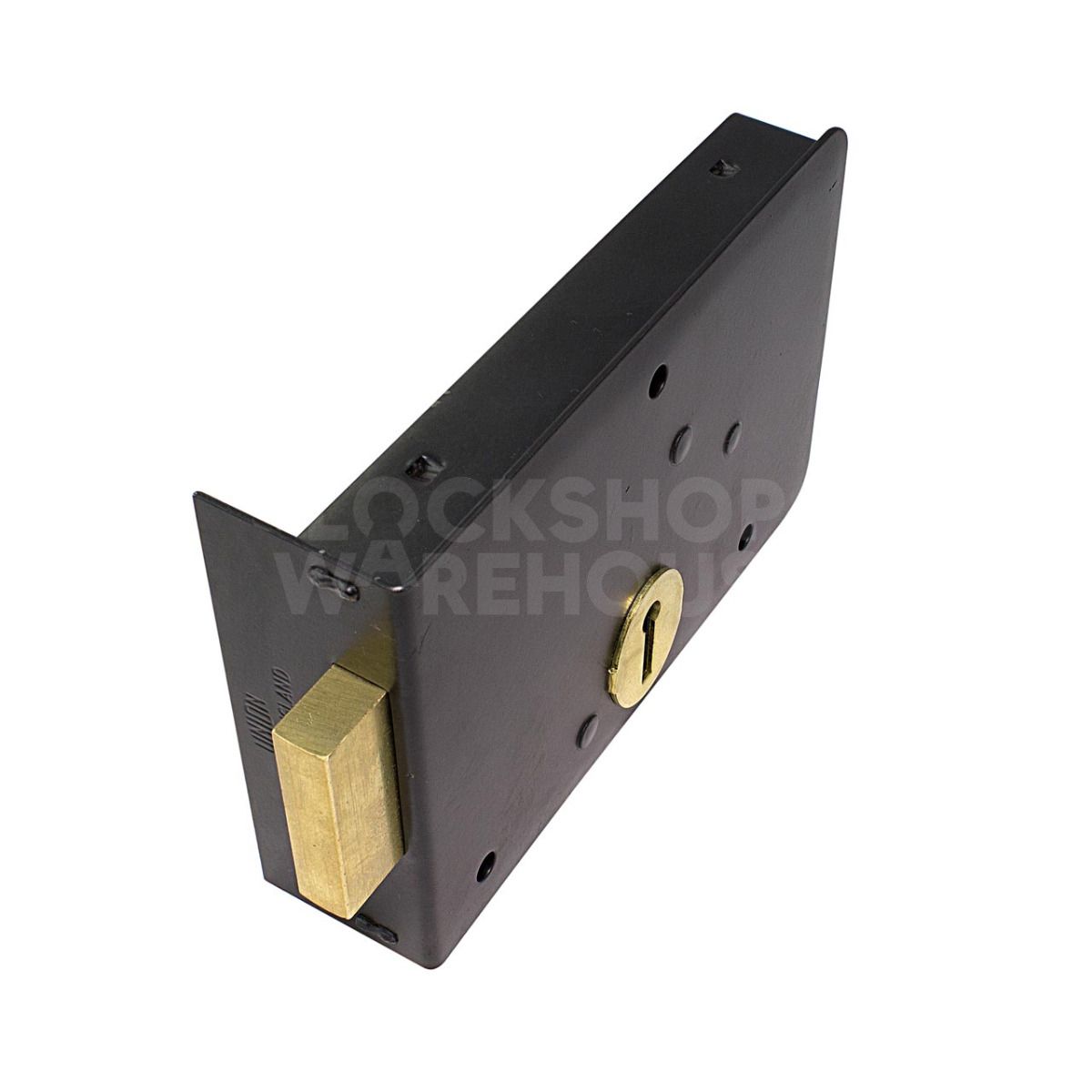

The Union 1139 Rim Deadlock is a surface-mounted security solution designed for timber doors. Unlike traditional mortice locks, this rim lock is fixed directly to the internal face of the door, making it particularly suitable for applications where the door construction or thickness prevents a deep mortice cutout.

Equipped with a 3-lever mechanism, this lock provides reliable security for residential applications. The deadbolt is operated by a key from both the internal and external sides, offering consistent locking functionality. It is frequently utilised on outbuildings, sheds, and gates, as well as secondary residential entrance doors.

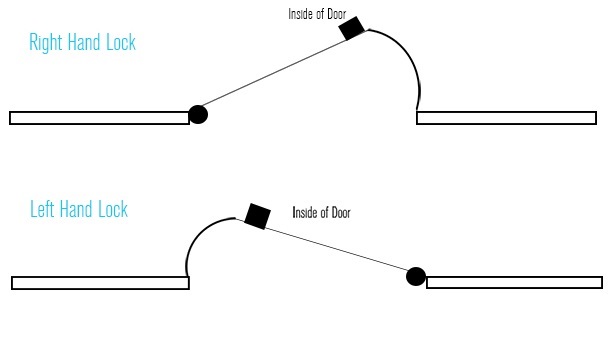

As this is a handed product, the mechanism is designed to suit specific door opening directions. It serves as an effective replacement part for existing rim-mounted hardware or as a primary locking point in new timber door installations where a surface-mounted application is preferred.

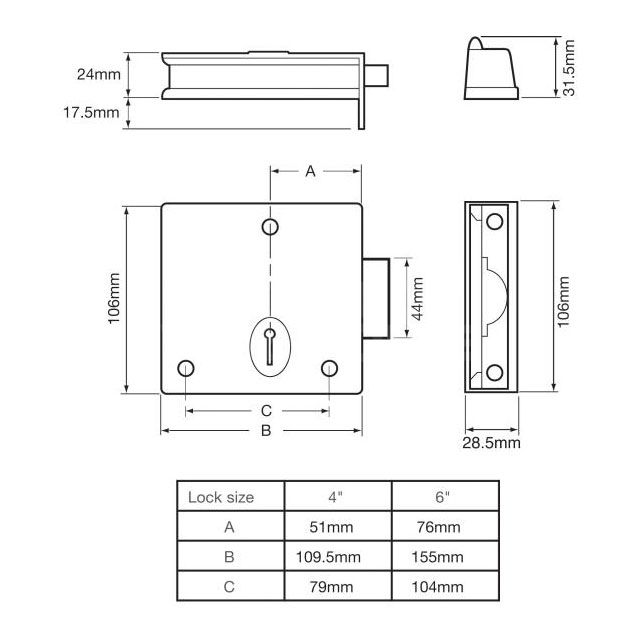

Dimensions Image: Union 1139 Rim Deadlock
Part Min (mm) Max (mm)
Backset 51 76
Case Width 109 155
Case Height 106 -
Dimensions Image: Union 1139 Rim Deadlock

Brand

SKU

UN-1139

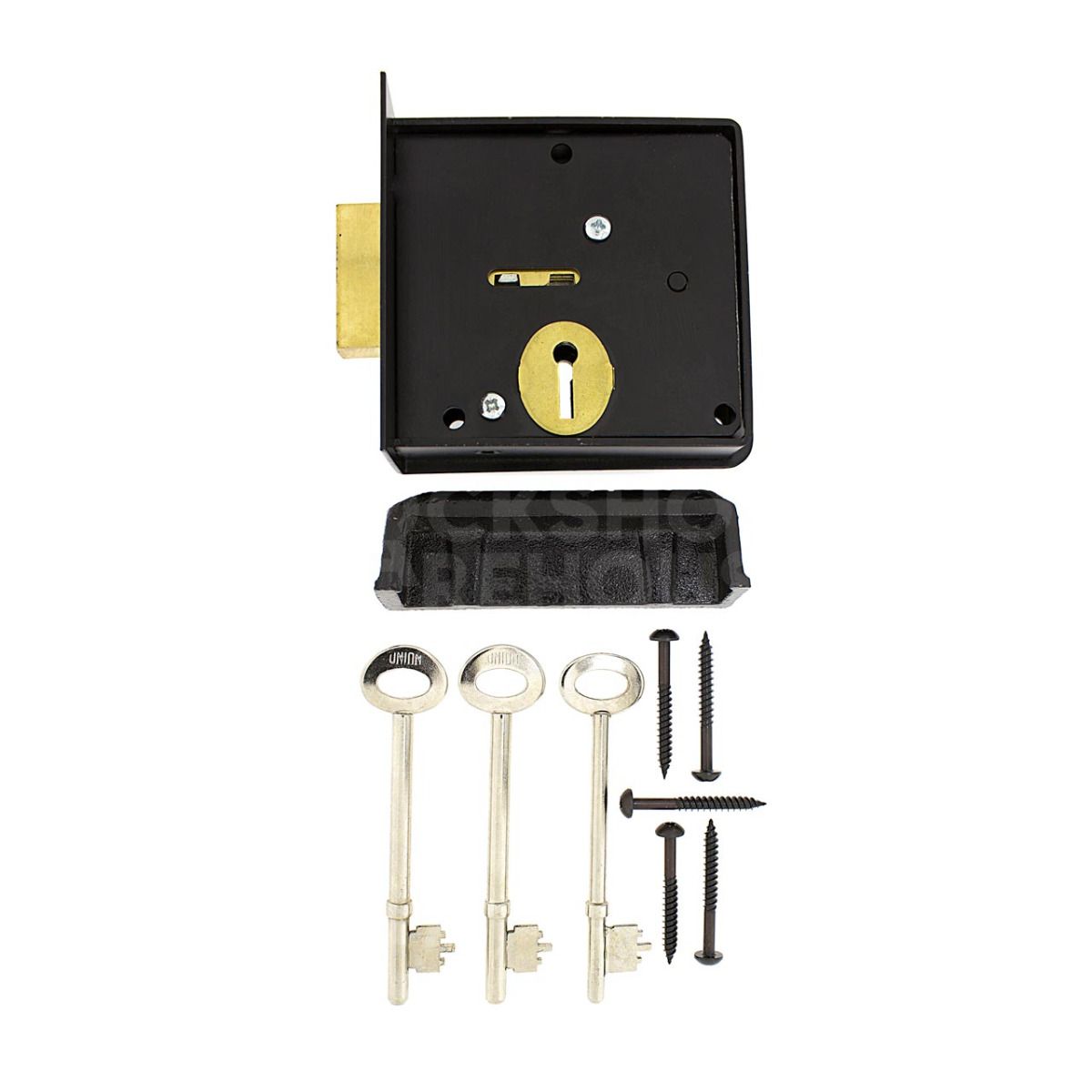

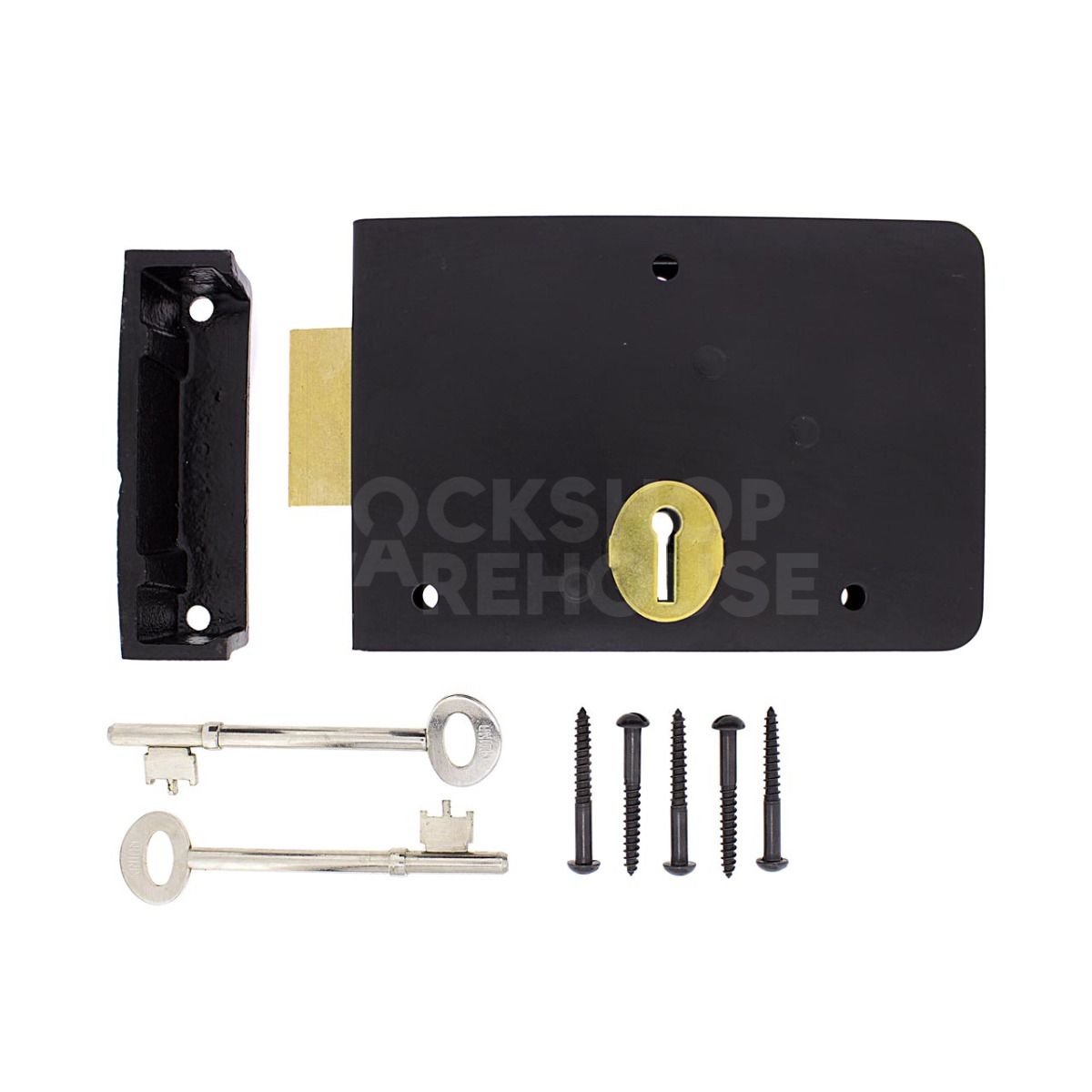

Box Contents

2 keys

strike plate

fixing screws

rim lock

Key Profile

Key Profile: Standard

FAQs

No unfortunately not, these locks are not as secure as a modern mortice lock as can be smashed off the back of the door so there isn't a high security model available. The best we can offer is a 3 lever. I would only recommend these for internal doors around the house.

Some of the 1 lever locks we offer can be selected on the same key number but this will need to be requested when purchased. It's not always possible but if you ask us we will try our best to accommodate your request.

The Rim locks screw to the inside of the door so therefore normal lever handle / knob handles on roses will not be suitable as you can not get a fixing point on the inside knob as the lock case is in the way. You need to purchase a set of rim knobs which have a standard style handle outside and a knob only on the inside.

A lot of the older models of these Rim locks have been discontinued so we might not be able to supply exact replacements.

No, this lock is not reversible. You must specify whether you require a left-hand or right-hand version when ordering to ensure it fits your door correctly.

The deadbolt is operated by a key from both the inside and the outside, providing secure locking and unlocking functionality from either side of the door.

The Union 1139 features a classic black enamel case finish and is available in two case sizes: 110mm and 155mm, allowing you to choose the best fit for your application.

This lock utilizes a 3-lever mechanism with 50 key differs. It comes supplied with two keys as standard, providing a primary key and a spare.
